Hot Sales High Working Efficient Primary Jaw Crusher
| Price: |
US $ 800-5000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

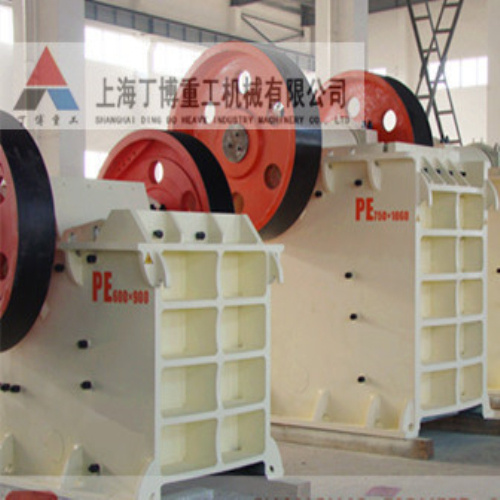

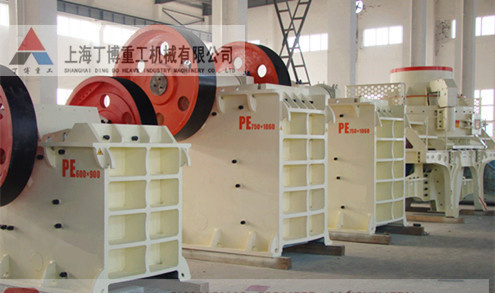

The Jaw Crusher is used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, The crushing strength of the jaw crusher materials is up to 350 Mpa. Our design and production are of high position both at home and abroad. One of our main products, Jaw Crusher is designed by our engineers with large reduction ratio, even granularity, simple structure, reliable operation, convenient maintenance, low cost. PE series jaw crusher has become one of the most popular crushers in the world.Feature Of Jaw Crusher:
1) High reliability
2) Flexible capacity
3) Over-loading protection
4) Easy replacement of wear and spare parts
5) Long service time
6) High efficiency
Jaw Crusher Operating principle:
The jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
| Model |
Feeding Opening Size
(mm) |
Max.Feeding
Size(mm) |
Adjustment Range of Discharging Opening (mm) |
Capacity(t/h) |
Power(kw) |
Overall Drmension (mm) |
PE-250×400 |
400×250 |
210 |
20-80 |
5-20 |
15 |
1430×1315×1296 |
PE-400×600 |
600×400 |
350 |
40-100 |
15-65 |
30 |
1700×1732×1653 |
PE-500×750 |
500×750 |
425 |
50-100 |
45-110 |
55 |
2035×1921×2000 |
PE-600×900 |
900×600 |
480 |
65-140 |
90-180 |
55-75 |
2290×2206×2370 |
PE-750×1060 |
1060×750 |
630 |
80-160 |
110-320 |
110 |
2655×2302×3110 |
PE-900×1200 |
900×1200 |
750 |
100-200 |
200-400 |
132 |
3380×2870×3330 |
PE-1000×1200 |
1000×1200 |
850 |
195-260 |
220-450 |
160 |
3480×3876×3330 |
PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
180-220 |
4200×3750×3820 |
PEX-150×250 |
150×250 |
125 |
10-40 |
1-5 |
5.5 |
875×758×850 |
PEX-150×750 |
150×750 |
125 |
18-48 |
5-16 |
15 |
1200×1500×1200 |
PEX-250×400 |
400×250 |
210 |
25-80 |
15-30 |
22-30 |
1667×1545×1020 |
PEX-250×1000 |
1000×250 |
210 |
25-60 |
16-50 |
30-37 |
1530×1992×1380 |
PEX-250×1200 |
1200×250 |
210 |
25-60 |
20-60 |
37 |
1900×2192×1430 |
PEX-300×1300 |
1300×300 |
250 |
25-105 |
20-90 |
75 |
2720×1950×1600 |
How is the quality of your products?
Our products are manufactured strictly according to national and international standard,
and we take a test on every grinder before delivered out. If you want see our quality certifications
and all kinds of testing report, please just ask us for it.
Guaranteed:
If products' quality don't accord to description as we give or the promise before you place order, We promise 100% refund.
How about price?
Yes, we are factory and be able to give you lowest price below market one, and we have a policy that " for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity",
if you like bargain and factory price is not low enough as you think, just don't waste your time.
Please trust the quotation we would give you, it is professional one.
Why should we choose you?
Chose happens because of quality, then price, we can give you both
Additionally, we can also offer professional products inquiry, products knowledge train(for agents),
smooth goods delivery, excellent customer solution proposals.
Our service formula: good quality+good price+good service=customer's trustWelcome to Shanghai,Welcome to Dingbo
| Prod Model: |
PE Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test&Installation: |
Professional Engineer Assigned |
| Export Markets: |
Global |
| Spare Parts Supply: |
Will Supply Any Time |
| After Sales Service: |
The Whole Time |
| Delivery Detail: |
30 Days |
| Type: |
Jaw Crusher |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Motor Power: |
7.5-175kw |
| Inlet Size: |
50-1500mm |
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
