Product Specifications
| Prod Model: |
3200-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Paper: |
Kraft Paper, Corrugated Paper |
| Trimmed Width: |
3200mm |
| Daily Capacity: |
30-35t/D |
| Basis Weight: |
100-250GSM |
| Type: |
Paperboard |
| Sheet Former Type: |
Fourdrinier Wire |
| Paper Thickness: |
Normal Specification Paper |
| Certification: |
UL |
| Condition: |
New |
Product Description
1.Higher capability with lower cost
2.New model kraft paper making machine

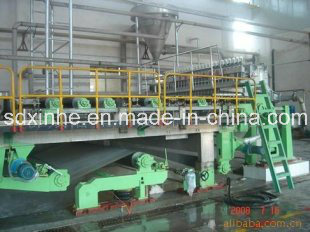

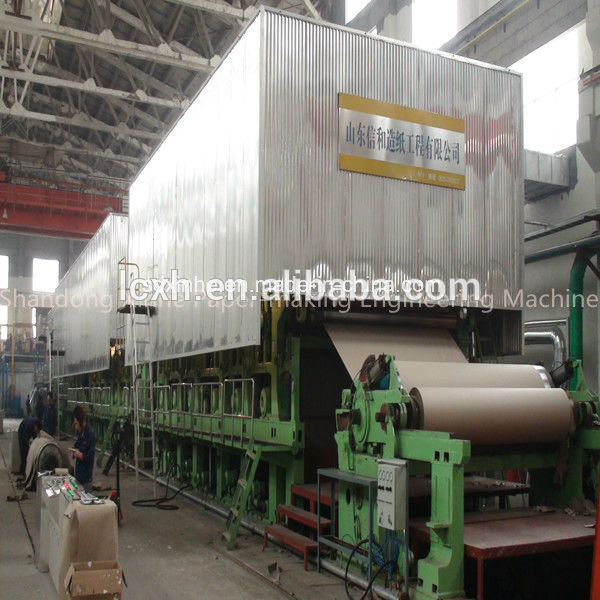

3.High speed paper plant3200 hot selling multi yakeen dryer multi-cylinder kraft paper machine technical parameters:
Material: waste paper
Paper making style: Kraft paper ,corrugated paper
Weight of paper:100-250gsm
Net paper width:3200mm
width of cylinder mould:3750mm
rail gauge:4300mm
working speed:80-150m/min
capacity :30-35T/D
drive way: Alternating current frequency conversion ,section drive
3200 hot selling multi yakeen dryer multi-cylinder kraft paper machine list:
NO. | name of equipment | quantity(set) |
1 | 3200mm paper machine | 1 |
2 | dryer exhaust hood | 1 |
3 | exhaust blower | 1 |
4 | 3200mm winding machine | 1 |
5 | 3200mm calendar | 1 |
6 | 3200mm rewinding machine | 1 |
7 | 15 type vacuum pump | 2 |
8 | suction box | 4 |
9 | UY100up-flow pressure screen | 1 |
10 | 2m2high frequency vibrating screen | 2 |
11 | 606disander | 12pcs |
12 | ZSC 1.6 m3centrifugal screen | 1 |
13 | 380 type double-disc refiner | 3 |
14 | 20 m3gravitation Decker | 1 |
15 | 8m3high consistency hydrapulper | 1 |
16 | 15m conveyor | 1 |
17 | Φ700propeller | 4 |
18 | biphase flow pump-100 | 5 |
19 | biphase flow pump-150 | 4 |
20 | frequency exchange control cabinet | 1 |
21 | air pump cabinet | 1 |
22 | pulp consistency testing and controlling apparatus | 1 |
23 | all the working board | 1 |
Shandong XinHe Paper-Making Engineering Co., Ltd is located in Liaocheng, west of Shandong province, which is a beautiful Water-City in the north of China. We are a professional integrated company. Main business includes paper machine manufacturing, engineering installation, commissioning and the total package of paper-making project. We own a group of excellent staff team and powerful, high-precise processing and welding equipments. Since the company was established, it has served dozens of production lines for many paper-making enterprises and enjoys a good reputation among them. A number of mills have contracted more than 10 production lines. The company is also equipped with a large number of the entire production line and assembly parts mainly exported to Southeast Asia, West Asia and South America etc.
Comer S. P. A. Was founded in 1960, is locate in Vicenza of Italy famous architecture city. It has long been engaged in mechanical pulp production line, deinked pulp production line, high-speed tissue machine, head box and designing and production of Yankee dryer. Several tissue machines in America, Brazil, Saudi Arabia etc had functioned very well, the machine speed is more than 1200m/min(basis weight 13G/m2), with low energy consumption. The finished paper has high flexibility. Comer S. P. A has first-rate design team, advanced processing equipment, pulp preparation system and pulp research lab.
Now Comer S. P. A. Authorized our company as sole agent of Crescent Tissue Machine in China. AP and South America which the paper width is between 2800-5000mm, the speed is or more than 1200-2000m/min, sell kinds of head box, steel Yankee dryer, suction touch roll, doctor and pulp-making equipments etc.
We will supply high quality product, lab service, field installation and training for all paper mills. We want to bring max profit for our customer with high quality product and low price.
