Cone crusher is one stone crusher for secondary crushing, which is suitable stone crusher for hard rock with high throughput

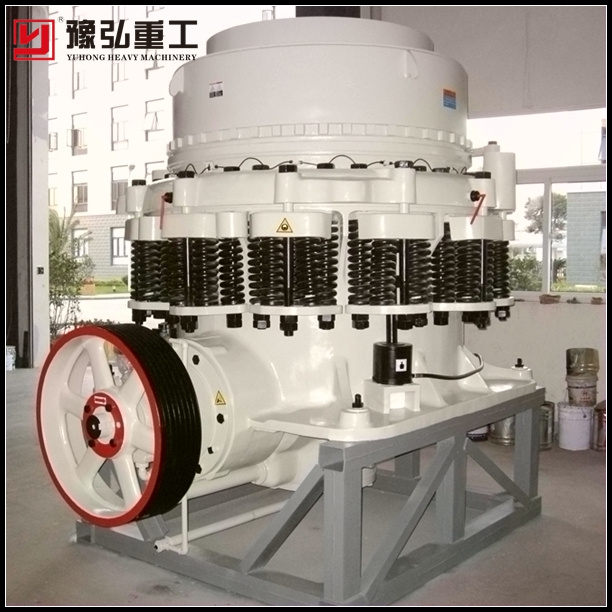

Cone Crusher, Stone Crusher and Mining Machine
1. Performance Characteristics of Mining Machine, Cone Crusher and Stone Crusher
1. Simplicity of design and rugged construction have madeYuhong Cone Crushers ideal for crushing operations.
2. The spring-loaded release system allows any uncrushable material to pass through without causing any damage.
3. The lubrication unit is interlocked with the main motor for additional safety as a standard equipment.
4. A rib liner is provided inside the bottom section of the frame to help protect it from wear.
5. There are generally four types of Standard Cone Crushers: The coarse type, the medium type, the fine type & the super fine type. All four types cone crusher are designed for secondary or tertiary crushing purposes both in stationary and portable applications for highly abrasive materials
|
Model |
Diameter of Bottom End of Conical Crushing Head (mm) |
Max feeding size(mm) |
Adjustment range of discharge opening (mm) |
Capacity
(t/h) |
Power(KW) |
Weight(t) |
|
PYB600 |
600 |
75 |
12-25 |
40 |
30 |
5 |
|
PYZ600 |
600 |
35 |
3-13 |
5-23 |
30 |
5.3 |
|
PYB900 |
900 |
115 |
15-50 |
50-90 |
55 |
11.2 |
|
PYZ900 |
900 |
60 |
5-20 |
20-65 |
55 |
11.2 |
|
PYD900 |
900 |
50 |
3-13 |
15-50 |
55 |
11.3 |
|
PYB1200 |
1200 |
145 |
20-50 |
110-168 |
110 |
24.7 |
|
PYZ1200 |
1200 |
100 |
8-25 |
42-135 |
110 |
25 |
|
PYD1200 |
1200 |
50 |
3-15 |
18-105 |
110 |
25.3 |
|
PYB1750 |
1750 |
215 |
25-50 |
280-480 |
160 |
50.3 |
|
PYZ1750 |
1750 |
185 |
10-30 |
115-320 |
160 |
50.3 |
|
PYD1750 |
1750 |
85 |
5-13 |
75-230 |
160 |
50.2 |
|
PYB2200 |
2200 |
300 |
30-60 |
490-750 |
260-280 |
80 |
|
PYZ2200 |
2200 |
230 |
10-30 |
200-580 |
260-280 |
80 |
