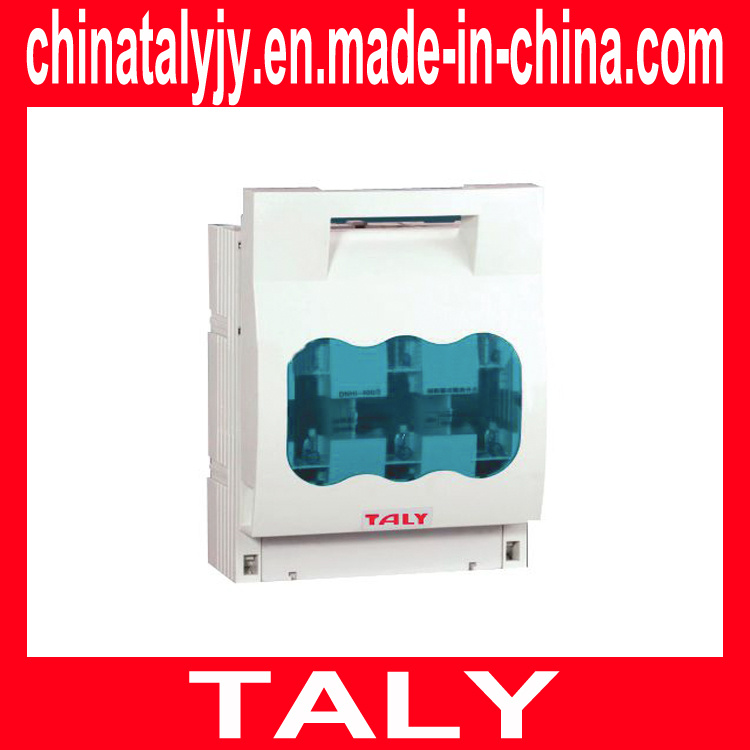

HR17 fuse switch/fuse isolator switch
HR17 fuse type isolation switch, rated insulating voltage AC800V. Rated operating voltaged 690V. 400V, rated frequency 50HZ. The rates current 160A~630A mainly used as power switch, isolating switch and emergency switch with function of protection in the circuit with high short circuit current and motor circuit, this switch is not used to operate the single motor.
This product is coformity with standard GB14048.3-2002. IEC 947-3(1999).
Specification:
Switch rating heat current: 160A, 250A, 400A and 630A
Number of poles: 3P,
Assorted fuse links: NH00 for 160A, NH1 for 250A, NH2 for 400A and NH3 for 630A
Rated currents: 4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160, 200, 224, 250, 300, 315, 355, 400, 425, 500 and 630
Rated insulation voltage: 690V
Rated voltage: 400V
Rated limit short-circuit current: 50kA
Model No.
|
HR17-40A
|
HR17-100A
|
HR17-160A
|
HR17-250A
|
HR17-400
|
HR17-630A
|
Rated insulation voltage Ui
|
690V
|
690V
|
690V
|
690V
|
690V
|
690V
|
Rated working voltage Ue
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
Rated working current Ie
|
40A
|
100A
|
160A
|
250A
|
400A
|
630A
|
Rated short circuit connecting capacity Icm
|
400A
|
1000A
|
1600A
|
2500A
|
4000A
|
6300A
|
Rated limit short circuit current Inc
|
50KA
|
50KA
|
50KA
|
50KA
|
50KA
|
50KA
|
Used type
|
AC-23B
|
AC-23B
|
AC-23B
|
AC-23B
|
AC-23B
|
AC-23B
|
Matched fuse link
|
RO16-40A
|
RO17-100A
|
NT00-160A
|
NT1-250
|
NT2-400
|
NT3-630
|
