Specifications

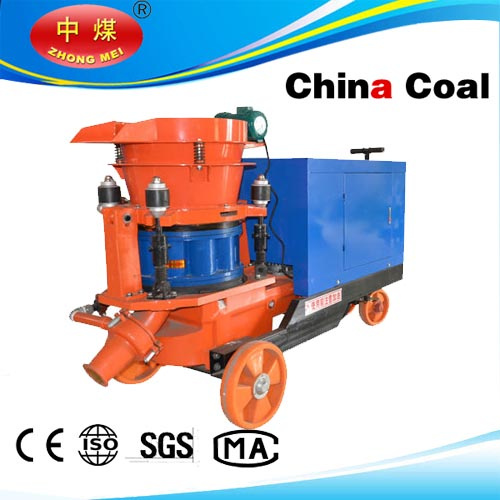

HSP-7 wet type shotcrete machine
1.Wet type
2.Capacity 5-7m3/h
3.Motor power:7.5kw, 380V
HSP-7 Wet type shotcrete machine
Specifications HSP-series wet shotcrete machine is an advanced and high efficient concrete spraying machine, d has been designed especially for spraying of concrete . It has the advantages of low dust , low rebound , high-strength concrete , simple operation , convenient for maintaining , prolong operation life etc.
The machine , combined with dosing unite , is suitable for manual spraying or by means of a robotic arm .
It is used for the application of shotcrete in rail and road tunnel , subway engineering , hydro-power engineering, underground engineering , mine gallery and more concrete engineering.
Wet shotcrete is use the mixed concrete, and then add accelerator.
| Model | HSP-5 | HSP-7 | HSP-9 |
| Output | 4-5m³/h | 5-7m³/h | 6-9m³/h |
| Max. Convey Distance | Horizontal:30m; Vertical: 20m | Horizontal:30m; Vertical: 20m | Horizontal:30m; Vertical: 20m |
| Max. Aggregate Size | Ø 15mm | Ø 15mm | Ø 15mm |
| Hose Inner Size | Ø 51mm | Ø 51/64mm | Ø 51mm/64mm |
| Operating Pressure | 0.3~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa |
| Air Consumption | 10-15m³/min | 10-15m³/min | 10-15m³/min |
| Rotor Diameter | Ø 438mm | Ø 480mm(160) | Ø 480mm(175) |
| Average Rebound Rate | ≤10% | ≤10% | ≤10% |
| liquid accelerator additive amount | 0.3-0.7% | 0.3-0.7% | 0.3-0.7% |
| Motor Power | Y132m-6-5.5KW | Y160m-6-7.5KW | Y160m-6-7.5KW |
| Voltage | 380V or as Your Request |
| Accelerator metering pump | Air Motor | Air Motor | Air Motor |
| Dimension(mm) | 1950*800*1280 | 2050*800*1350 | 2000*800*1300 |
| Net Weight | 700kg | 900kg | 900kg |
| Wheel | Nylon Wheel; Rubber Wheel; Skid Wheel; Rail Wheel |
