Product Specifications
| Prod Model: |
2880mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Engineers Will Be Sent to Install |
| Training: |
Free |
| Test Run: |
Free |
| Factory Layout: |
Depends on Customer Needs |
| Design: |
Yes |
| Type: |
Paperboard |
| Sheet Former Type: |
Fourdrinier Wire |
| Paper Thickness: |
Thick Paper |
| Condition: |
New |
| Certification: |
ISO |
Product Description
Contact & negotiate!!!John:8615638823327 company:
We are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
So welcome to visit and negotiate
Perfect service:
1.Technical consultation
2.Plant design
3.Installation and test run
4.Training engineers and workers
5.Good and long time after-sale service
The business process
1.Send your requirements:Raw material,capacity,paper grammage
2.We make the solution to you
3.Come visit and negotiate
4.Sign contract
5.First payment
6.Production
7.Pay spare money
8.Delivery
9.Installation ,training,test run
10.Production consultlation
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
Screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
Machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
Paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company.

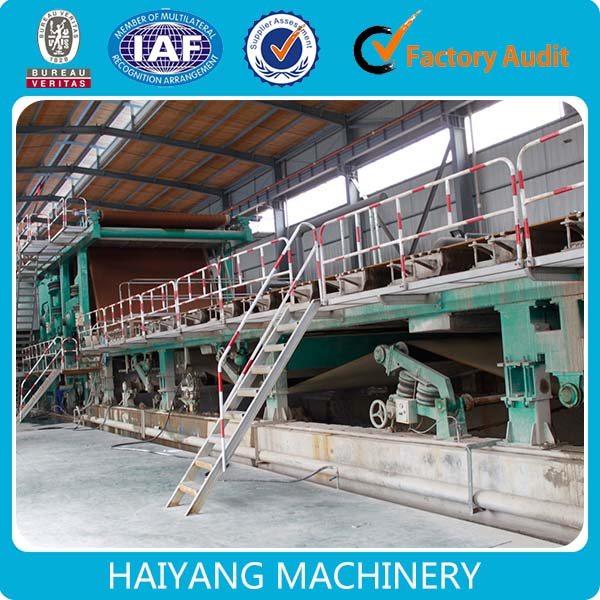

2880mm Multi-cylinder Fourdrinier Corrugated Paper Making Line
For capacity 80 tons/day
I.Technical parameter
1.Raw materials:Recycled paper, wood pulp
2.Output paper:Corrugated paper
3.Output paper weight:90-200gm2
4.Capacity:80 TD
5.Fourdrinier wire width:3350mm
6.Net paper width:2880mm
7.Working speed:150-200mmin
8.Designing speed:250m/min
9.Rail gauge:4000mm
10.Drive way:Alternating current frequency converter speed control, sectional drive.
II.The main structure with spec
1.Fourdrinier part:16m fourdrinier table, the frame coated by stainless steel.1 set of Φ850mm×3500mm vacuum couch roll.
2.Press part :
1) K press part
Top roll:1 pc of Φ850mm×3300mm×4000mm natural marble roll.
Bottom roll:1 pc of Φ800mm×3300mm×4000mm rubber roll,
Vacuum roll:1 pc of Φ800mm×3500mm rubber roll, rubber shore hardness 95ºC±2.
2) Large roll press part
Top roll:2 pcs of Φ1250mm×3300mm×4000mm rubber roll
Bottom roll:2 pcs of Φ1250mm×3300mm×4000mm rubber roll, rubber shore hardness 98ºC±2.
3.Dryer part:20 pcs of Φ1500×3300mm×4000mm dryer cylinder, 20 sets of blade, 4 sets of Axial-flow ventilator.
4.Calendaring part:1 set of three-roll calendar with top roll Φ500, middle roll Φ450, and bottom roll Φ550.
5.Winding and rewinding part:1 set of Horizontal winding machine with winding cylinder Φ1100×3200mm, 1 set of high duty frame type rewinding machine.
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
