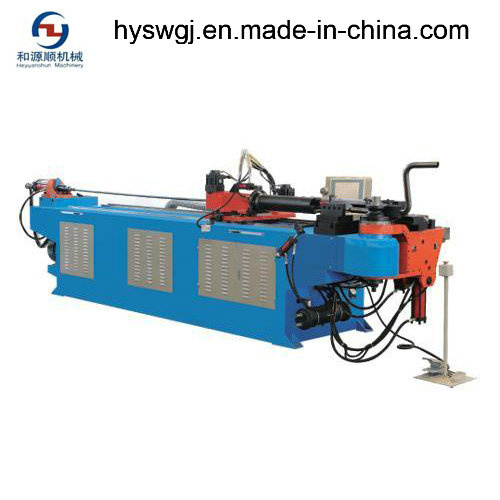

Product Specifications
Prod Model: |
CS-75NC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue |
Electric Motor Power: |
4kw |
Type For Pipe And Tube Bending Machine: |
Horizontal Hydraulic Pipe Bender |
Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
Application: |
Machinery & Hardware |
Product Description
Features:
1. Using anumerical contorl module all chinese(english) dialogue operation it is easy and accurate to operate the program.
2. Airframe structural stability not deformed.
3. Each life can be set to 16 bending angle 16 sets of memory storage bend model.
4. It; S slow positoning function repeat accuracy of ± 0.1°
5. Pipe bending angle accuracy of ± 0.2°
6. Error messages on the display to help operations staff excluded immdiately.
Item/Model |
SB-38NC |
SB-50NC |
SB-75NC |
Max. bending capacity |
Ø38*2.0 |
Ø50*2.5 |
Ø75*3.0 |
Circle pipe/non-iron metal |
Ø38*3t |
Ø50*4.0t |
Ø75*5.0t |
Max. Suitable Stainless Steel Pipe |
Ø38*1.5t |
Ø50*1.8t |
Ø75*2.0t |
Square pipe/Metal |
30*2.0 |
40*2.5 |
50*3.0 |
Circle stick |
20 |
25 |
35 |
Max. Bending Radiu |
R1.5D-175mm |
R1.5D -200mm |
R1.5D -300mm |
Max. Bending Angle |
185° |
185° |
185° |
Max. core length(a) |
1450mm |
1590mm |
2400mm |
Max. oil pressure |
12Mpa |
14Mpa |
14Mpa |
Electric motor power |
4kw |
5.5kw |
7.5kw |
|
|
|
|
