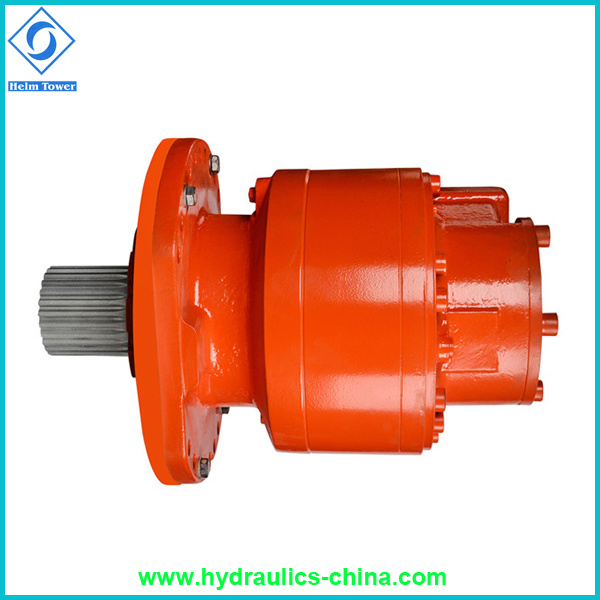

Hydraulic Motor Poclain Ms35 with Dual (double) Speed
| Price: |
US $ 2000-2200/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
1. Product Features.
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
5). Motor with multi-disc brake.
6). Motor emission control.
2. Applications.
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor.
Farming Machinery: Spray Machine.
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill.
Marine Machinery: Marine Deck Crane.
|
Displacement Group |
7 |
9 |
0 |
2 |
|
Displacement (ml/r) |
2439 |
3143 |
3494 |
4198 |
|
Theoretical Torque at 10Mpa (N.m) |
3978 |
4997 |
5555 |
6675 |
|
Rated Speed (r/min) |
100 |
80 |
80 |
63 |
|
Rated Pressure (Mpa) |
25 |
25 |
25 |
25 |
|
Rated Torque (N.m) |
8000 |
10300 |
11450 |
13800 |
|
Max. Pressure (Mpa) |
31.5 |
31.5 |
31.5 |
31.5 |
|
Max. Torque (N.m) |
9850 |
12700 |
14150 |
17000 |
|
Speed Range (r/min) |
0-125 |
0-125 |
0-100 |
0-100 |
|
Max. Power (kw) |
Standard displacement is 110KW,variable displacement priority rotation 73KW,no priority is 55KW |
| Prod Model: |
MS35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
Ms35 |
