Product Specifications
| Prod Model: |
XD-CONTROLLER |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
Customize |
| Task: |
Adjust |
| Structure: |
Combination |
| Mathematical Model: |
Non-Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
New |
| Customized: |
Customized |
| Material: |
Stainless Steel |
Product Description
BKSF Series of Protection
This series of products is suitable for synchronization, control And protection of generator set of 800KW and below. Automatic Synchronization Device adopts WPET-101microcomputer, controller or STK-W-3 microcomputer controller, which is designed to have Functions of control, protection and measurement of synchronization Interconnection for low-voltage generator set and can meet the Control requirements for low-voltage generator set interconnection.
It is of high technical performance and running high reliability.

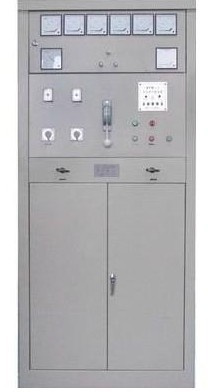

This product conforms to the standards of IEC439: Low-voltage Switchgear and control gear assemblies, GB7251-1987: Low-voltage Switchgear assembly and etc. The cover of cabinet adopts PGL type And the dimensions are 1000× 600× 2200mm (Width × Length× Height).
PARTICULAR INFO
I, MAIN PERFORMANCE AND CHARACTERISTICS Automatic Synchronization Device adopts microcomputer controller, which can swiftly and Conveniently realize functions such as automatic speed regulating And automatic synchronization; Manual/Automatic Switching-on and Switching-off functions; Over-current, under-voltage and Over-voltage protection functions effectively ensure the stable and Secure the running of generator set; Two alternative factory power Supplies are provided in panel, one of which is for switching Between generator and electric network and is to satisfy different Requirements on power supply in factory for users; Easy to install And operate, convenient to maintain and run reliably.
II, DEMONSTRATION OF MODELS Capacity 125~200Kw 250~320Kw 400~500Kw 630Kw 800Kw Synchronization Method Manual Automatic Manual Automatic Automatic Automatic Automatic Model BKSF 51 52 61 62 72 82 92 III, ORDER INFORMATION, Model and Specifications of Generator, Breaker's Type, Synchronization Device Model, Other Specific Requirements
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
