Product Specifications
| Prod Model: |
YN52161 |
| Markets: |
Southeast Asia,Mid East,Eastern Asia |
| Usage: |
Halogen Acid Gas Release Determination Device |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Halogen Acid Gas Release Determination Device |
Product Description

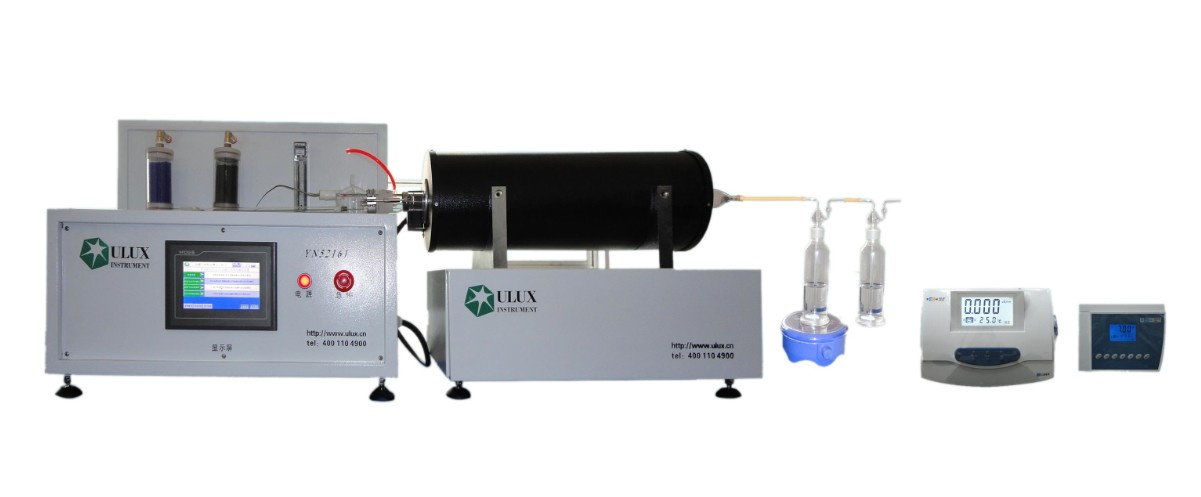

GB/T 17650.1~2-1998 IEC 60754-1~2-1994 YN52161 Halogen Acid Gas Release Determination Device Price
Product description:
Applications: Test the content of the released halogen acid gas, pH value (hydrogen ion content), conductivity etc. In the process of wires and cables burning
Standards:
GB/T 17650.1~2-1998
IEC 60754-1~2-1994
Technical parameters:
1. Activated carbon (air filter): Used to filter the air source
2. Silica gel (air drying): A device for drying air source
3. Flowmeter: 1L/min, a device to control the flow of the air source
4. Thermocouple: K type of high temperature resistant stainless thermocouple, range: 0--1300C
5. Quartz tube: 40*800
6. Magnetic stirrer: An stirrer used for stirring the burning gas distilled water
7. PH meter: A device used for measuring the pH acidity (ray magnetic)
8. Conductometer: An instrument used for measuring the conductivity of the burning gas (ray magnetic)
9.7 "color touch screen and PLC and PID automatic calculation module control heating furnace temperature
10. Heating furnace: 220*600, Effective heating space: 43*550, power: 4KW
Specifications:
Installation size: 2300mm(W)*600(D)
Power supply: AC 220V, 50/60Hz, 21A
The reagent and air supply are prepared by users
Terms and conditions:
1. FOB Shanghai.
2. Payment terms: T/T
3. Package: Plywood case
4. Delivery time: Within 10 working days after the payment in advance.
5. Installation and commissioning: The seller should send engineers for installation and commissioning, and our workers are also responsible for the training of the buyer's workers, however, do not worry about the passport of the workers. The buyer should be responsible for each of our technician's accommodation, meals, round-trip tickets, self-security and 80 USD per day abroad.
6. After-sell Services:
(1) Guarantee period is one year, and the buyer will only take the shipment for components change.
(2) The buyer should take all the expense if it's not the machines quality problem, such as the buyer's incorrect operation, etc.
(3) After warranty period, the seller can charge the buyer the cost and some service charge for repairing, or changing components. Charging standards will be arranged separately.
