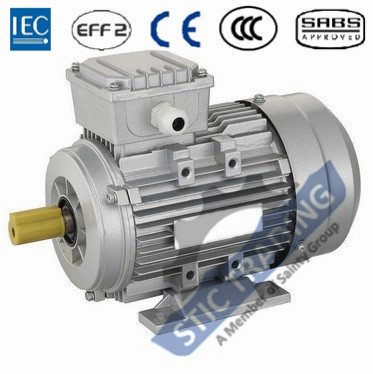

IEC Aluminum Ie2 4pole High Efficiency AC Motor
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
PRODUCT INTRODUCTION
WE series three phase asynchronous motor is complete new designed high efficiency motor with cast iron housing. Its efficiency indicators are in line with IE2.
Characteristics for all WONDER standard 3-Phase asynchronous motors Widely applied in general machinery and industries such as pumps & water treatment, road machinery, petroleum, chemical, metallurgy, cement and paper-milling.- ·IP55 protection, Class F insulation, B Temperature rise, S1 duty,
- ·Rated voltage 400V, Rated frequency 50Hz.
- ·Operation conditions: ambient temperature:-2040, altitude≤1000m.
- ·Y-connection for motors up to 3kW and -connection for 4kW and above
- ·Cooling method is Ic411.
DATA SHEET
| motor type | rated output power KW | rated speed rpm | full load AMPs 400V A | 100 load EFF % | 75 load EFF % | 50 load EFF % | 100 load factor cos f | 75 load factor cos f | 50 load factor cos f | rated torque N.m | lock rotor AMPs Is/In | lock rotor torque Ms/Mn | brake down torque Mk/Mn |
| 4P 1500RPM | | | | | | | | | | | | | |
| WEA5614 | 0.06 | 1330 | 0.34 | 46 | 42 | 35.5 | 0.55 | 0.46 | 0.33 | 0.43 | 4 | 1.4 | 2 |
| WEA5624 | 0.09 | 1330 | 0.41 | 50 | 49.2 | 43 | 0.63 | 0.54 | 0.41 | 0.64 | 4 | 1.8 | 2 |
| WEA6314 | 0.12 | 1340 | 0.43 | 59.1 | 61.3 | 55 | 0.68 | 0.6 | 0.47 | 0.85 | 4.4 | 1.8 | 2 |
| WEA6324 | 0.18 | 1340 | 0.58 | 64.7 | 66.7 | 57.9 | 0.69 | 0.6 | 0.47 | 1.28 | 4.4 | 1.8 | 2 |
| WEA7114 | 0.25 | 1345 | 0.71 | 68.5 | 69.4 | 66.5 | 0.74 | 0.65 | 0.52 | 1.77 | 5.2 | 2.1 | 2.2 |
| WEA7124 | 0.37 | 1345 | 1 | 72.7 | 73.9 | 71.4 | 0.74 | 0.65 | 0.52 | 2.62 | 5.2 | 2.1 | 2.2 |
| WME8014 | 0.55 | 1420 | 1.45 | 77.1 | 77.5 | 74.8 | 0.71 | 0.62 | 0.49 | 3.63 | 7.4 | 3 | 2.5 |
| WME8024 | 0.75 | 1420 | 1.91 | 80 | 81.2 | 79.3 | 0.71 | 0.63 | 0.5 | 5.03 | 5.8 | 2.9 | 2.7 |
| WME90S4 | 1.1 | 1430 | 2.58 | 82 | 83.2 | 80.6 | 0.75 | 0.66 | 0.53 | 7.33 | 7.2 | 3.9 | 3.6 |
| WME90L4 | 1.5 | 1430 | 3.42 | 83.2 | 84.6 | 82.6 | 0.76 | 0.67 | 0.53 | 10.01 | 7.8 | 4.4 | 4 |
| WME100LA4 | 2.2 | 1440 | 4.77 | 84.3 | 83.2 | 81.1 | 0.79 | 0.73 | 0.6 | 14.46 | 7.8 | 3.3 | 3.5 |
| WME100LB4 | 3 | 1430 | 6.1 | 85.5 | 86.5 | 86 | 0.83 | 0.77 | 0.6 | 19.87 | 7.2 | 2.8 | 3.2 |
| WME112M4 | 4 | 1440 | 8.24 | 86.6 | 86.4 | 85.4 | 0.81 | 0.75 | 0.65 | 26.53 | 7.3 | 3 | 2.9 |
| Prod Model: |
WEA/WME-4P |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
SABS |
| Brand: |
OEM |

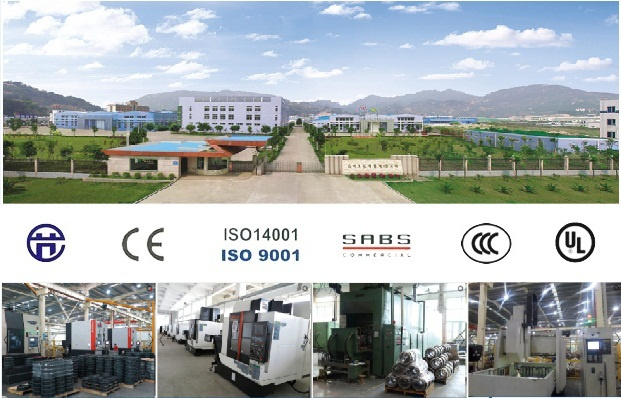

STIC TRADING CORP., Ltd (hereafter referred to as STIC) is a subsidiary branch of JIANGSU SAINTY MACHINERY CORPORATION Ltd., with its team processing 20 years of reputable Importing and Exporting experience.
STIC's prime supplying area of focus includes, but is not limited to the following:
1. AGRICULTURAL PRODUCTS: STIC prides itself in covering the range includes tractors, implements, accessories and such as Power Take-Off Shafts (PTOs) as well as Ground Engaging Equipment (GEE).
2. AUTOMOTIVE SPARES AND ACCESSORIES): STIC has sourced deeply and widely and is now in a position to supply high quality Automotive Suspension and Steering components together with many other spares in this sector.
3. POWER TRANSMISSION COMPONENTS: STIC has established itself as a respected supplier of world class quality components in this very competitive and highly specialized sector of the industry. This product range represents major leading brands and includes bearings (full range); Chains ( including agricultural, mining and sugar), sprockets; Pulleys; Bushes, couplings; Belting; Gear and rack assemblies; Rotary oil seals; Electric and geared motors ( full range ); Forgings and castings of every description.
4. HYDRAULIC AND PNEUMATIC: STIC can supply prides the full range of fittings and hoses associated with this industry.
5. TOOLS: STIC is able to supply special and general tools for ALL applications in both metric and Imperial sizes.
6. FASTENER: STIC's vast experience in the field supplying full range of bolts and nuts of DIN, ANSI, which can satisfy ANY need that a client may have.
The Organization prides itself in the fact that it has developed a reputation which comes from "Providing the BEST Product linked to the BEST Service" backed-up by a highly trained and competent technical team who ensure the Highest Quality Control and Overall Project Solution Support wherever needed.
