Product Specifications
| Prod Model: |
STB1-63H, STB1-63, etc. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
IEC60898 |
| Tripping Curve: |
B,C,D |
| No. Of Pole: |
1,2,3,4 |
| Rated Voltage: |
240/240, 400/415 |
| Rated Current: |
1 to 63 |
| Distribution System: |
Lighting or Motor |
| Specification: |
6 to 63A |
| Frequency: |
50/60Hz |
| Breaking Capacity (a): |
4500A |
| Dimension: |
Customized |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Energy-storage Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Poles Number: |
3 |
| Certification: |
CB |
| Structure: |
Conventional Circuit Breaker |
| Type: |
Circuit Breaker |
| Function: |
Overcurrent Protection, Ovp(Overvoltage Protectio |
Product Description
STB1-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastic. The product, with long life, is mainly used in AC 50/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. This product conform with GB10963, IEC60898.

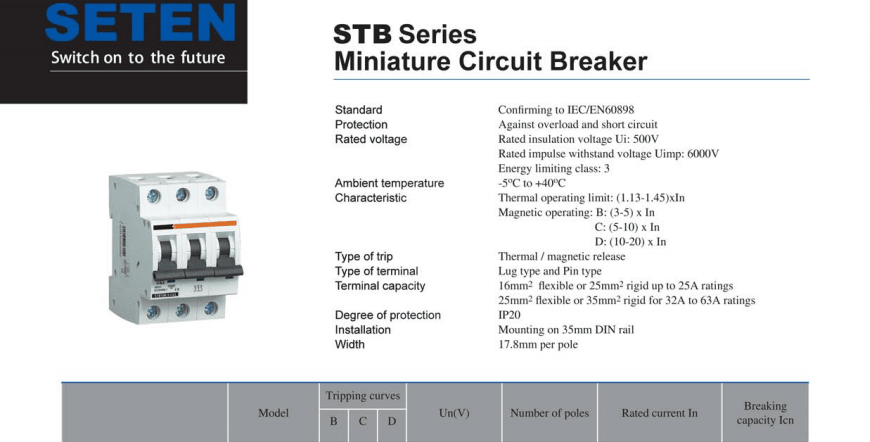

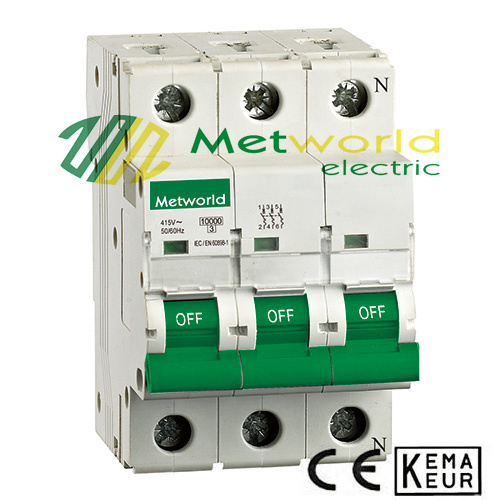

STB1-63 Mini Circuit Breaker
SPECIFICATIONS | Tripping Curve | Rated current (A) | Pole | Voltage (V) | Breaking capacity (A) | Standard |
6A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
10A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
16A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
20A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
25A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
32A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
40A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
50A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
63A | B.C.D | 1 to 63 | 1,2, 3, 4 | 240/240, 400/415 | 10000 | IEC60898 |
