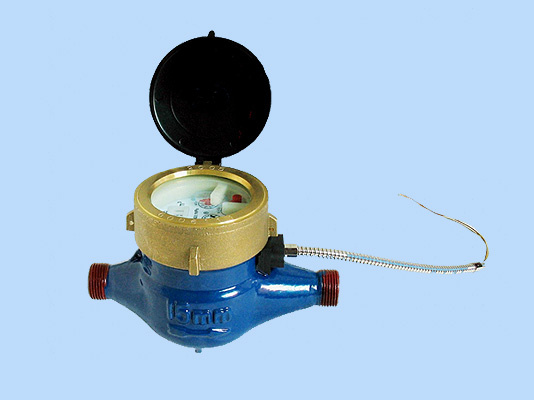

LXSG-15Y3~50Y3ApplicationMeasuring the vlounme of cold/hot portable water passing through the pipeline and remote transmitting the signal of the water volume to the secondary instrument
FeatureRotary-vane dry-dial type. Magnetic drive, Keep its fundamental function as standard meter. Easy for reading and keep the reading clear in a long-term service. Keep free from frost and have long working life. A signal will be transmitted when 10(or 100 or 100/3)lites water passing
Standard ComplianceISO4064(1993)class B
Working ConditionWater temperature<=40oC for cold waterWater temperature<=90oC for hot waterWorking pressure<=1.6MPA
Warranty PeriodWarranty period: One year
SIGNAL TYPE
Signals are transmitted by reed switch or HOL component
Note: The working current for HOLComponent is about 5mA. Please advise if the required woking current less than 50uA(dipole)or 50uA(monopole)
Type DN(mm) Class QS Overload Flow qp Nominal Flow qt Transitional Flow qmin Min Flow
M3/h L/h
LXSG-15Y 15 A 3 1.5 0.15 0.06
B 0.12 0.03
LXSG-20Y 20 A 5 2.5 0.25 0.10
B 0.20 0.05
LXSG-25Y 25 A 7 3.5 0.35 0.14
B 0.28 0.07
LXSG-32Y 32 A 12 6.0 0.60 0.24
B 0.48 0.12
LXSG-40Y 40 A 20 10 1 0.40
B 0.80 0.20
LXSG-50Y 50 A 30 1.5 1.50 0.60
B 1.20 0.30
Dimension:
Type DN(mm) Length Width Height Connecting Thread D Weight
Mm kg
LXSG-15Y 15 165 99 124 G3/4B 1.5
LXSG-20Y 20 190/195 99 124 G1B 1.7
LXSG-25Y 25 225 103 132 G11/4B 2.4
LXSG-32Y 32 230 104 137 G11/4B 2.7
LXSG-40Y 40 245 124 167 G2B 4.8
LXSG-50Y 50 280 125 167 G21/2B 7.2
