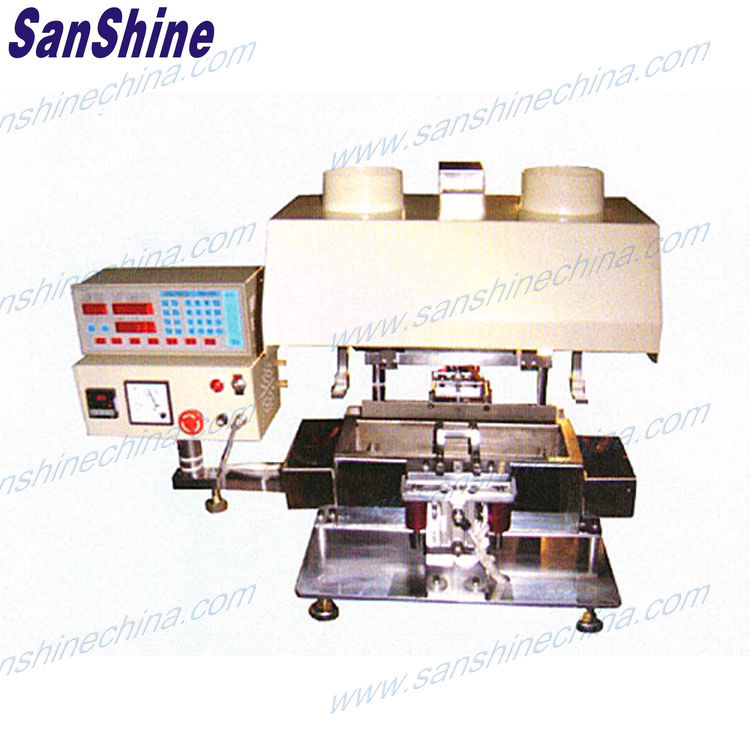

Description :The SS-VT01 Automatic solder tinning machine adopts precise digital CNC tinning controller and servo motors. It is best for soldering transformers, inductors, relays, contactors which not need soldering at an angle. The soldering components are vertical with the solder face. ,etc.

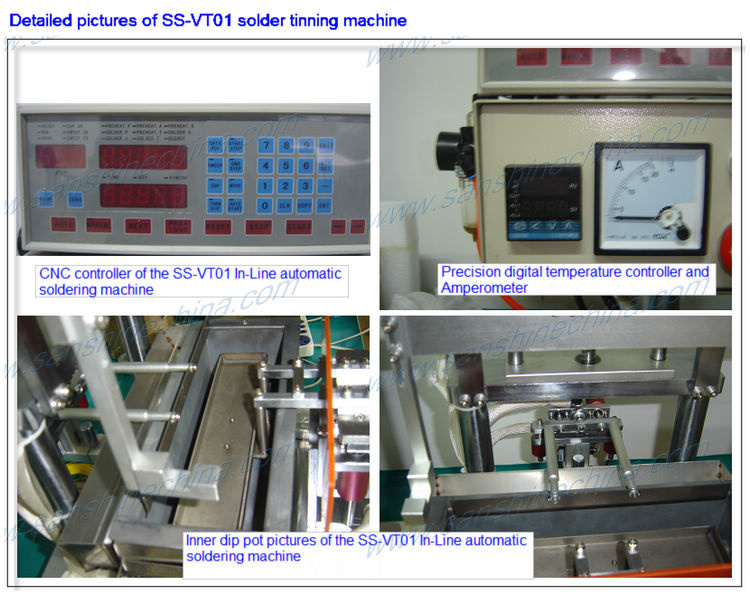

Feature :1. Adopted controlled CNC with 1000 sequences of parameters and stepping motor for multi-purpose soldering.
2. Adjustable for most pin type transformers.
3. Automatically clean the solder dross before soldering.
4. Precise adjustment of preheating height and time.
5. Precise adjustment of soldering height and time.
6. Can set coils pins to preheat for set time and then solder.
7. Tooling up and down movement controlled by step motor giving accurate results cycle after cycle.
8. Side inserted heaters enable easy maintenance.
9. Titanium alloy dip pot for temperatures up to 600º C.
10. Titanium dip pot suitable for lead free solder.
11. Up to 20 pieces (EI-19) per cycle.
In-Line automatic soldering machine
Model |
SS-VT01 |
Power source |
AC 220 / 110 V ; 50/60 Hz |
Power consuming |
2KW |
Air source |
5kg /cm² |
Traverse |
MAX 76 mm (stepping motor) |
Inner bath material |
Lead free titanium |
Inner bath Dimension |
L300 X W100 X H 60 mm |
Dimension |
L600 X W600 X H 750 mm |
Weight |
40 Kgs |
