Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
RoHS |
| Connection Structure: |
FC/Sc/St/LC/Mu/E2000 |
| Brand: |
Fipos |
| Sheath Material: |
Lszh/PVC |
Product Description
Description

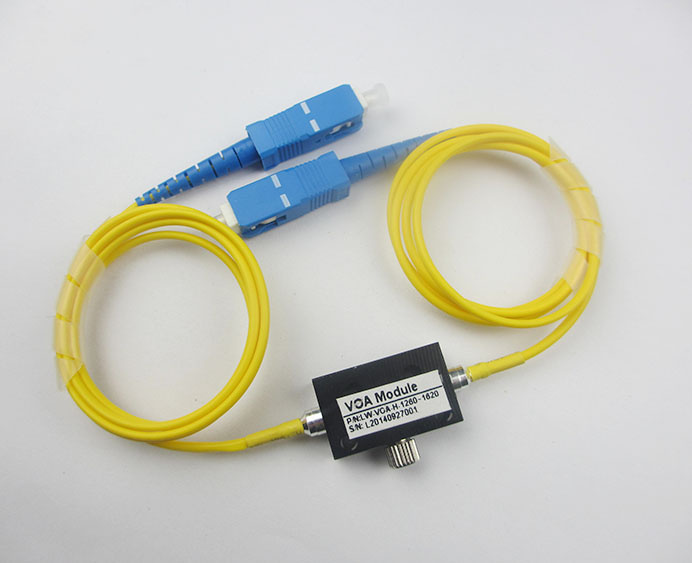

The variable attenuator is a kind of fiber optic attenuator that supports continuous adjustment of attenuation value between 0.6dB and 60dB. It employs the principle of light shading between the two collimators to control the attenuation value by a knob that can be manually rotated. This range of variable optical attenuator offers adjustment accuracy up to 0.1dB.
Feature
Small size and low insertion loss
High repeatability and resolution
High accuracy and stable attenuation
The length of pigtail can be customized
Wide adjustable range of attenuation values
Application
CATV
DWDM network
Optical communication system
Optical fiber communications labs
Testing system of passive optical devices
Specification
| Specifications | Parameters |
| Wavelength (nm) | 1310~1550(nm) |
| Connector | FC,ST,SC,LC,E2000,MU |
| Adjustment Accuracy(dB) | ≤0.02 |
| PDL(dB) | ≤0.1 |
| Attenuation Adjustable Range(dB) | 0.6-60 |
| Return Loss (dB) | >50 |
| Operating Temperature (ºC) | -5~+70 |
