Product Specifications
| Prod Model: |
IBOX-2550A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application Field: |
Industrial Control |
| Processor Type: |
Intel |
| Certification: |
FCC |
| Type: |
Embedded Systems |
Product Description
Main Feature
· Compacting fanless design
· Intel ATOM D2550 Dual Core 1.86GHz
· Support 6*RS232 COM
· Support DC12V power supply
Introduction

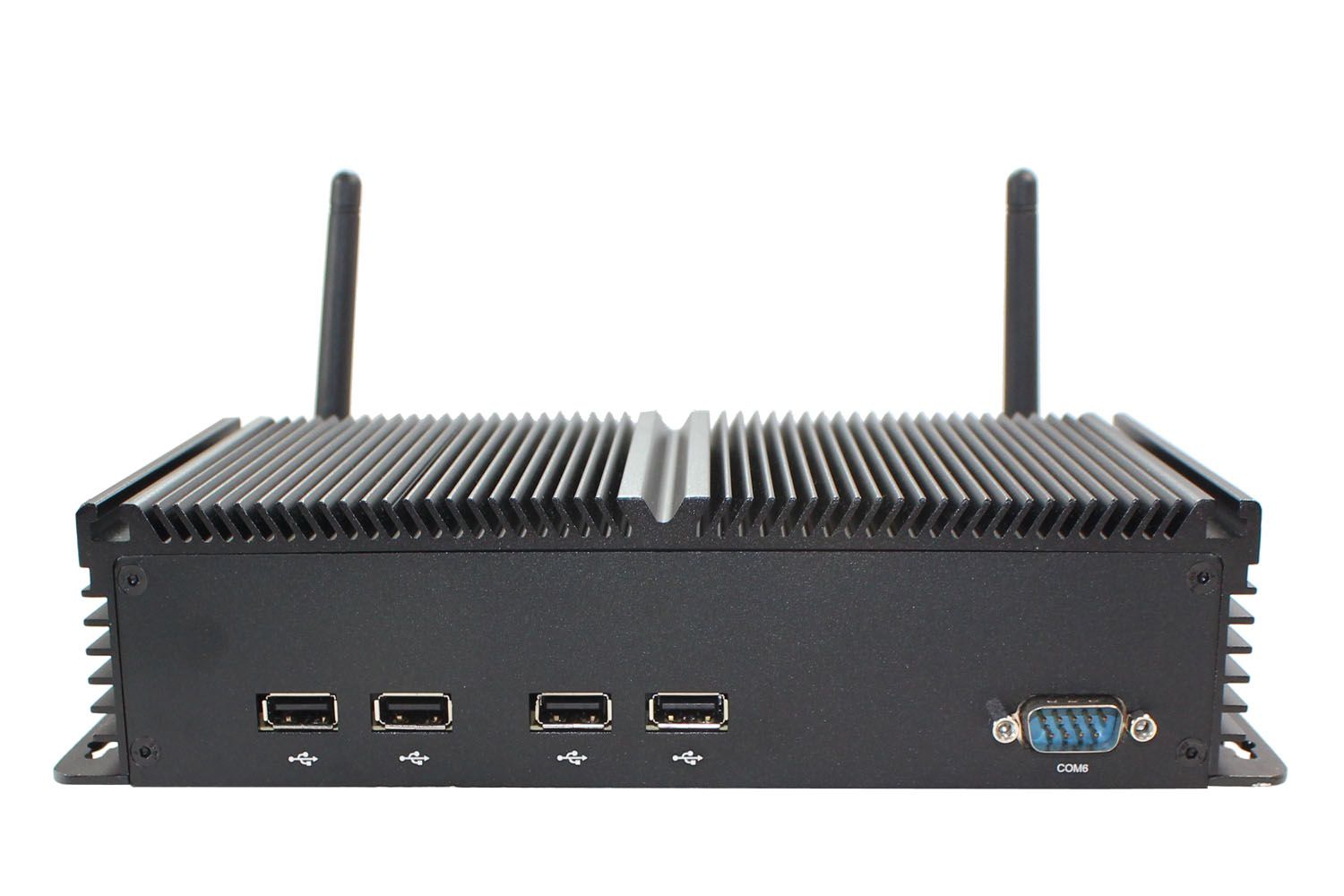

IBOX-2550A is Industrial grade MINI box PC's with Intel ATOM Dual Core 1.86GHz CPU, Intel NM10 Chipset, which comes with 1*VGA, 1*HDMI, 6*RS-232, 2*RJ45 10/100/1000M LAN, 6*USB2.0 with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation, automation, communication etc.
| Material | Industrial Al-alloy |
| CPU | Intel ATOM N2800/D2550 Dual Core 1.86GHz (optional) |
| Chipset | Intel NM10 |
| Memory | DDR3 2G/4G(optional) |
| Storage | 2.5"SATA 500G HDD,16G/32G SSD(optional) |

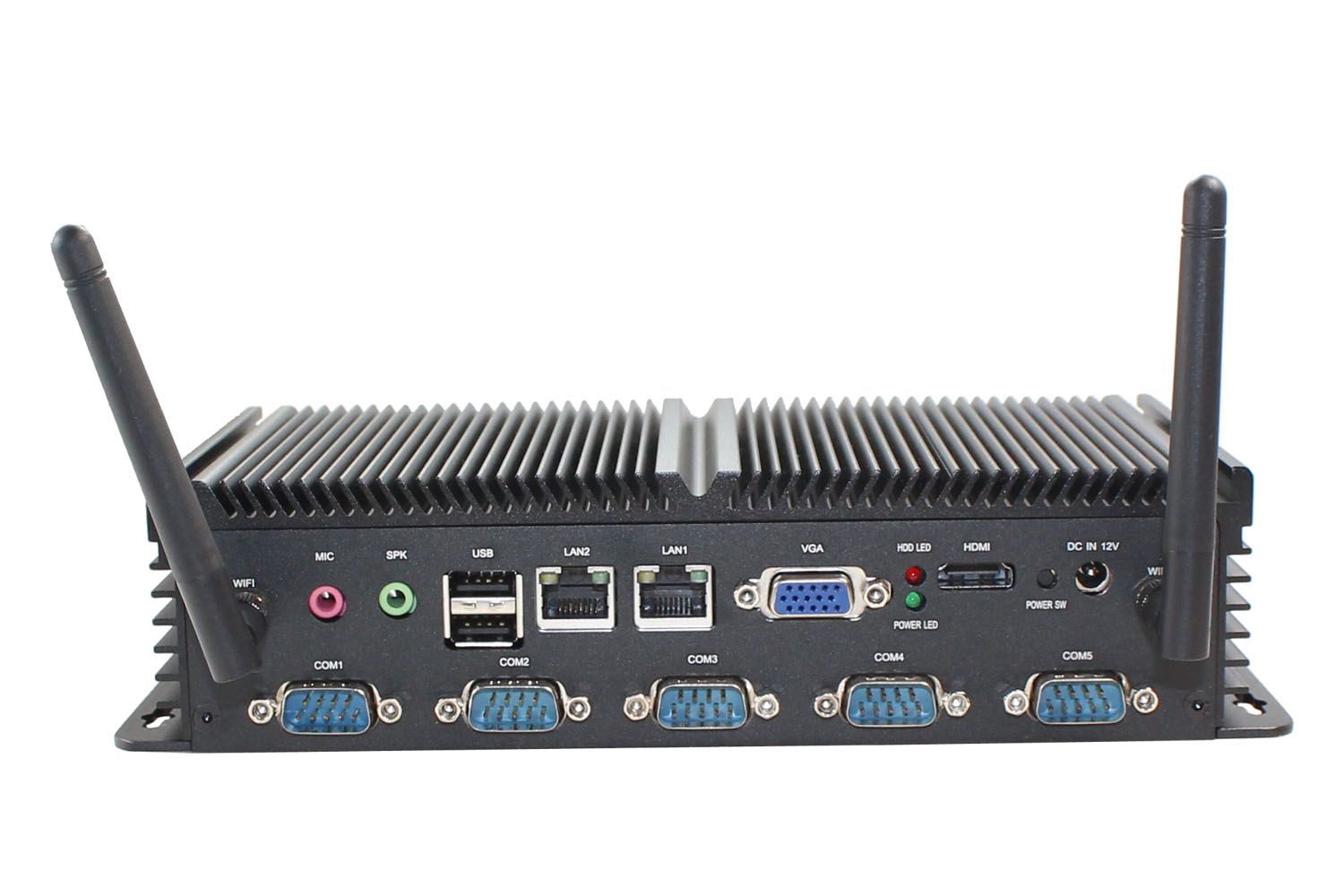

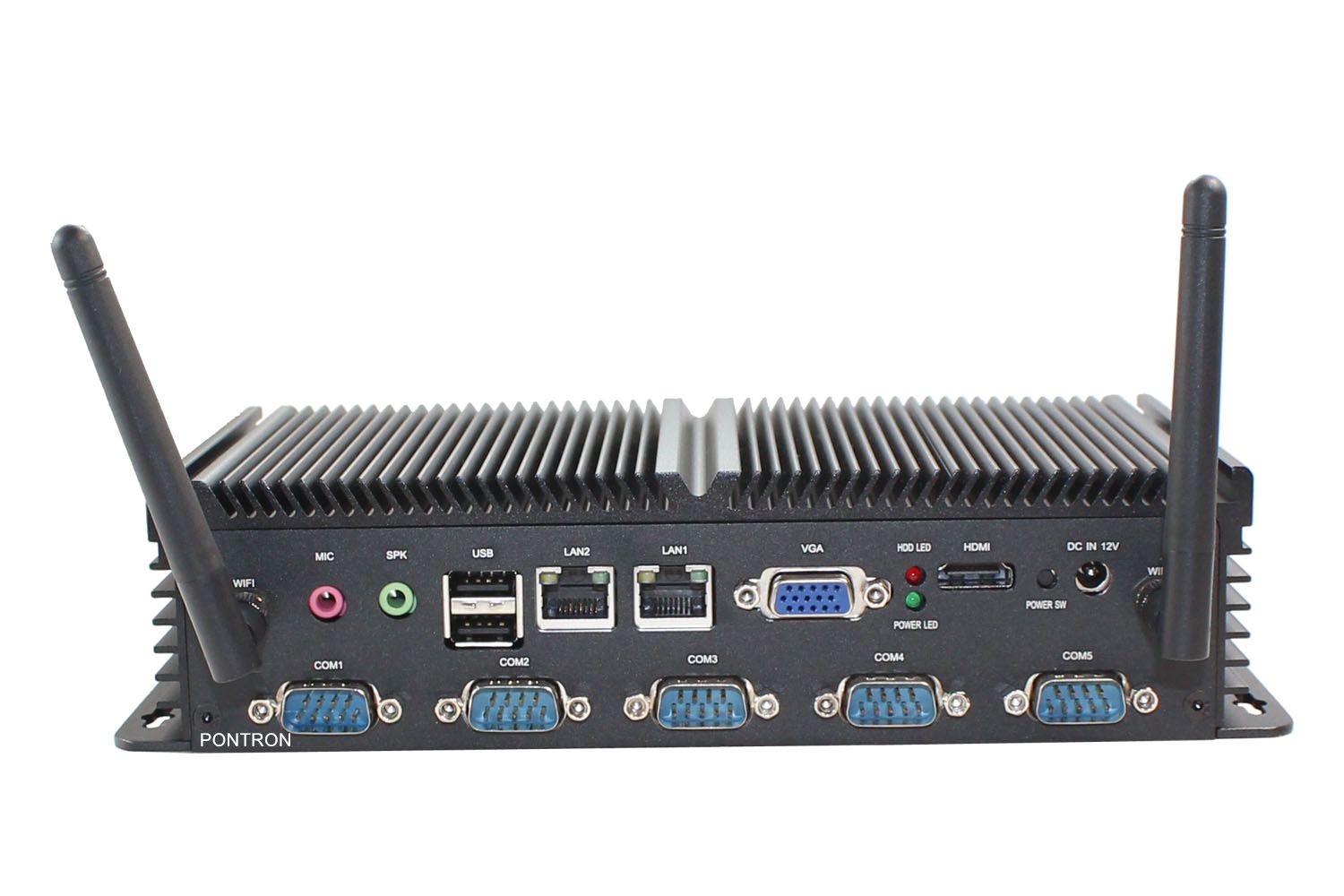

| I/O | 1 x VGA,1 x HDMI |
| 6 x RS-232 |
| 2 x RJ45 10/100/1000M LAN |
| 6 x USB2.0 |
| 1 x Line Out,1 x Mic |
| WIFI/3G(optional) |
| Power supply | DC 12V Input |
| LED light | 1 x Power LED,1 x HDD LED |
| Watchdog timer | Programmable overtime interrupt or recovery |
| Color | White(optional) |
| OS | Windows 7,Windows XP, Windows XP Embedded,Linux |
| Dimension | 234 x 122 x 54mm |
| N.G | 2.5KG |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD)
1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD)
20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering Information | IBOX-2550A:Mini box PC's with Intel ATOM D2550 Dual Core 1.86GHz, W/SSD16G, W 2G memory, 12V power supply. |
