Product Specifications
| Prod Model: |
DOG-3082 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Dimension: |
146 (Length) X 146 (Width) X 150 (Depth) Mm |
| Dimension Of The Hole: |
138X138mm |
| Weight: |
1.5kg |
Product Description

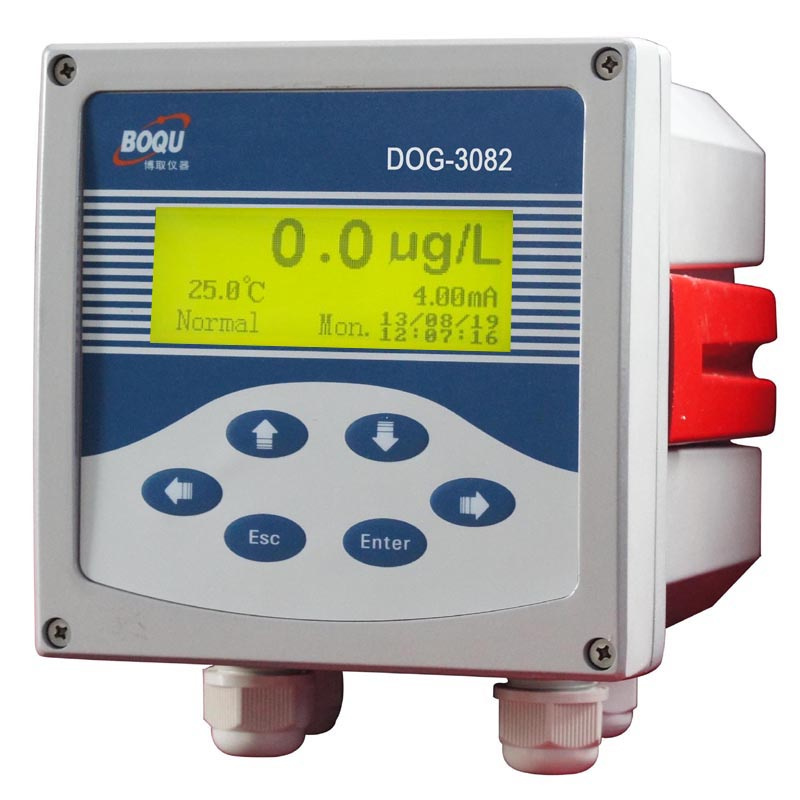

DOG-3082 Industrial Dissolved Oxygen Meter
DOG-3082 Industrial Dissolved Oxygen Meter is a kind of high-intelligence in-line meter that is developed by our company and used for continuous on-line monitoring. It can be equipped with DOG-208F Polarographic Electrode and can automatically switch from ppb level to ppm level of wide-range measurement. This instrument is designed for monitoring the oxygen content in the boiler feed water, condensate water and sewage.
Features
All the data are displayed in English. It can be easily operated:
It has a complete English display and elegant interface: Liquid crystal display module with high resolution is adopted. All the data, status and operation prompts are displayed in English. There is no symbol or code that is defined by the manufacturer.
Simple menu structure and text-type man-instrument interaction: Compared with traditional instruments, DOG-3082 has many new functions. As it adopts classified menu structure, which is similar to that of a computer, it is clearer and more convenient. It is not necessary to remember the operation procedures and sequences. It can be operated according to the prompts on the screen without the guidance of an operation manual.
Multi-parameter display: The oxygen concentration value, input current (or output current), temperature values, time and status can be displayed on the screen at the same time. The main display can show the oxygen concentration value in a 10 x 10mm size. As the main display is eye-catching, the displayed values can be seen from a long distance away. Six sub-displays can display such information as the input or output current, temperature, status, week, year, day, hour, minute and second, so as to adapt to different users' habits and to conform with different reference times set by the users.
Technical Indexes
1. Measuring range: 0~100.0ug/L; 0~20.00 mg/L (automatic switching); (0-60º C); (0-150º C)Option
Resolution: 0.1ug/L; 0.01 mg/L; 0.1º C
2. Intrinsic error of the whole instrument: Ug/L: ± L. 0%FS; Mg/L: ± 0.5%FS, temperature: ± 0.5º C
3. Repeatability of the indication of the whole instrument: ± 0.5%FS
4. Stability of the indication of the whole instrument: ± 1.0%FS
5. Automatic temperature compensation range: 0~60º C, with 25º Cas the reference temperature.
6. Response time: <60s (98% and 25º C of the final value) 37º C: 98% of the final value < 20 s
7. Clock accuracy: ± 1 minute/month
8. Output current error: ≤ ± L. 0%FS
9. Isolated output: 0-10mA (load resistance <15KΩ ); 4-20mA (load resistance <750Ω )
10. Communication interface: RS485 (optional) (Double power for option)
11. Data storage capacity: L month (1 point/5 minutes)
12. Saving time of data under a continuous power-failure condition: 10 years
13. Alarm relay: AC 220V, 3A
14. Power supply: 220V± 10% 50± 1HZ, 24VDC(option)
15. Protection: IP54, Aluminium she
16. Size: Secondary meter: 146 (length) x 146 (width) x 150(depth) mm;
Dimension of the hole: 138 x 138mm
17. Weight: 1.5kg
18. Working conditions: Ambient temperature: 0-60º C; Relative humidity <85%
19. The connection tubes for inlet and outlet water: Pipes and hoses
