Product Specifications
| Prod Model: |
F21-E1 |
| Markets: |
South America,Africa,Mid East |
| Type: |
Joystick |
| Application: |
Industrial Machinery |
| Signal Transmission: |
IR Remote Control |
Product Description
Industrial remote control crane remote control
A. 6 single/double buttons
B. Over 4.3 billions codes
C. Glass-Fiber
Industrial remote control crane remote control remote control telecontrol overhead crane remote control
F21 instruction
Convenient, economical
Widely used in various industrial equipment
Enclosure protection class IP 65
Durable Glass-Fiber structure
Low power consumption transmitter (2 AA batteries last up to 4 months)
Hamming code, self-testing and 32 bits ID code
Microsoft Windows based software for easy customize configuration
Control distance is up to 100 meters
F21 receiver
Size: 185*85*85mm
Weight: 550g
Features
Control distance is up to 100 meters
Over 4.3 billion unique ID code
Temperature range: -40° C~ +85° C
Enclosure protection class IP 65
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
Receiver power: 110/ 220V/380V/VAC, or 12/24/36/48 VDC.
Output contact capacity: 5A sealed relay output (AC 250V/10A relays, 5A fuse contacts).
Receiver: F21-RXC
Applications
Doors, entrance, gates, winches, pumps, crushers, lighting, conveyor belts, hydraulics etc
Working frequency
315 MHz
High-frequency channels
64
Unique codes
4.3 billions
Power supply
110/ 220V/380V/VAC, or 12/24/36/48 VDC.
Power consumption
20~400m A
Protection
IP65
Temperature
-40° C~ +85° C
Control distance
Approx. 100M
Recommended transmitter
F21 series transmitters

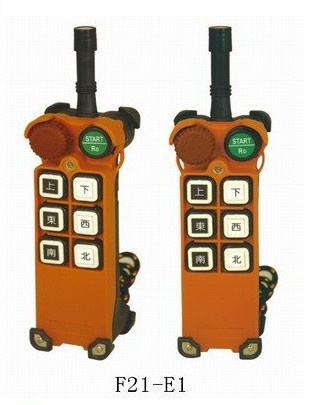

F21-E1 transmitter
Features:
6 single step pushbuttons
Low cost for electronic chain hoist/monorail
Low power consumption transmitter. 2 AA batteries last up to 4 months
Safety code: Over 4.3 billions unique ID code available.
Temperature range: -35° C ~ +85° C
Enclosure protection class: IP 65
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
With battery voltage warning device, the power is cut off during low power
Safety key switch to prevent from unauthorized user
Set the internal functions by computer interface.
Up/down, east/west, north/south can be set as to mutual inhibition or not.
Spare key can be set to start, acceleration, toggle switch, general or other functions.
Control distance is up to 100 meters
Transmitter power: 3V DC
Receiver power: 380V/220V AC or 12V/24V DC.
Output contact capacity: 5A sealed relay output (AC 250V/10A relays, 5A fuse contacts).
Standard Configuration
One transmitter
One receiver
Receiver with 1 meter cable
Operation and maintenance manual
Application:
Single-hook, single-speed electric hoist or hoist-type traffic and industrial remote control with less than 9 contacts
