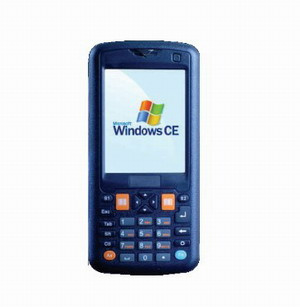

Urovo's hand-held terminals I60XX series are produced with independent R & D, ergonomic design and industrial-grade; Lightweight and flexible, shock drop resistance, long standby time, dual power mode, also with call feature. The new upgraded layout for the keyboard is more ergonomic, functional, and consistent.
|
CPU |
|
SUMSANG S3C2451 (533MHZ) |
|
O. S. |
|
Microsoft Windows CE 5.0 Multi-language O. S. |
|
Memory |
AM |
128MB |
|
F-ROM |
128MB or 256MB or 512MB(Standard 2M) |
|
Scanning Reference |
Scanner Type |
1D Laser Scanner |
|
Scanner Model |
Opticon /Moto |
|
Scan Rate |
100 scan/sec + 2 scan/sec |
|
Distance |
60-650mm |
|
Angle |
54± 5 |
|
Width |
60-360mm (at max reading distance) |
|
Contrast |
0.127-1.00mm |
|
Support Bar Code |
UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39F ll ASCII; Code 93; Code 11; Interleaved 2of 5; Discrete 2 of 5; Codabar; MSI; GS1 D taBar 14; GS1 DataBar Limited; GS1 DataBar Expanded; |
|
Display |
Type |
TFT-LED QVGA Color Touch Screen |
|
Resolution |
QVGA (240X320) |
|
Screen Size |
3.2” |
|
Input Methods |
Virtual Keyboard |
English, Pinyin, Handwriting Input Methods |
|
Keyboard |
28Numeric-Function Keys pad with Compound Alphabet keys |
|
Scan Key |
left and right on keyboard |
|
Communication |
Standard |
internal 802.11b/gwireless communication, Upto 54Mbps, Compliance with CISCO CCX2, 3 Security CISCO AP and security features |
|
Standard |
Bluetooth V2.1+EDR |
|
option |
internal 3MegaPixel with LED flash |
|
option |
internal GPS: Channel 48, Accuracy < 2.5m, In motion accuracy 0.01m/ |
|
option |
internal HF and / or UHF RFID read-write module |
|
option |
internal Wireless Communication Module GSM/PRS, Support GSM/GPRS Class10, GSM27.10 |
|
|
|
Power Source(Dual power source mode) |
Operating power |
3.7V 2800mAH Rechargeable Lithium Battery |
|
Backup battery |
150mA, retain data over 4hr |
|
Recharge |
~ 3.5 hr |
|
Operating time |
> 8 hr ( relative to working environment ) |
|
Expansion slot |
|
Micro SD/TF slot (Max 16G) |
|
Industrial Standard |
|
IP54 |
|
Dimension |
Ergonomic |
150 × 70 x 25 mm |
|
Weight |
|
200g( include battery) |
|
Working environment |
Operating temp |
-15~+50c |
|
Storage temp |
-20~+60c |
|
Operating R. H. |
Relative Humidity 5-95% (non condense) |
|
Storage R. H |
Relative Humidity 5-95% (non condense) |
|
Impact Proof |
Withstands up to 1.5M drops to concrete, room temperature and default configuration; multiple 1.2M drops to concrete, all axis, and across operating temperature range. |
|
|
Certification |
CCC, CE |
Shenzhen Urovo Technology Co., Ltd. is a leading manufacturer of software and hardware products and comprehensive provider of cross-industry information solutions. As one of the leading professional manufacturers of Mobile Handheld Data Terminal in China, we specialize in manufacturing and developing "All-in-one" handheld data terminal integrated with RFID reader/writer, 1D/2D barcode scanner and wireless communications. Based on application of mobile data terminal technology, Urovo has made a number of groundbreaking achievement.
We have a professional consultant team and strong technical strength. Being a professional manufacturer of security products, we value Innovation, Dedication and Superiority, and satisfy our customers by adding new designs and features to our products according to customers' needs. Through many years of brand operation, channel expansion, Urovo established a strong marketing network. Our products and solutions are widely used in Logistics Industry, Garment Industry, Retail Market, E-commerce Trade, Healthcare Sector, Industry &Commerce Management, etc. Our products with excellent quality, stable performance, cost-effective, stylish design, flexible configuration have won the trust of customers and a wide range of popular.
Our service & knowledge is second to none. Advanced production equipment, first-class technical talent, as well as perfect after-sale service are the strong guarantee of Urovo products. At present in the logistics industry, Urovo already owned more than sixty-five percent of the market share, and has being the first Market share leader for many years. We really appreciate your business and hope to deal with you again. We sincerely welcome customers to visit and give us your advice.
