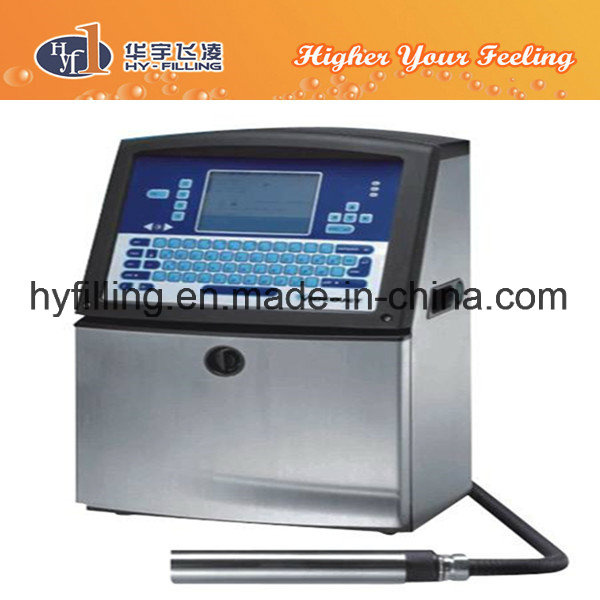

Ink Date Code Printer
Videojet 1210
| double lines spray printing | 36.5M/s |
| double lines font height | 2.8mm |
| dimension | 44.5×62.2×17.8CM |
| sprayer | dia. 3.8CM |
| length | 6.2CM |
| The consumption of diluent: | It can be used for over 100hours per bottle. |
Printer line could be 3 lines, the single line speed can reach 278.6m/minute (914feet/minute)
Standard USB interface, the pattern and storage message copy function
Easy for maintenance
6000hours free maintenance
No pollution, no waste, no fault
Good protection performancestandard configuration IP55 protection grade
Optional lattice
Single line: 5*5, 5*7, 7*9, 11*16, 17*24
Double lines: 5*5, 5*7, 7*9
Three lines: 5*5, 5*7
Character height
Could be chosen between 2mm~8.5mm according to the character lattice
Printer distance
Best printer distance: 12mm
Scope: 5mm~15mm
Keyboard
Standard computer keyboard, include 72 number key, letter key and special function key
Display screen
320*240 bright blue back light crystal display screen
What you see is what you get screen display edit messagecustomer's logo/pattern
Could edit customer's logo/pattern in the computer directly through printer or use VJ special software
Character setting
Chinese, Japanese/kanji Japanese, Korean, Arabic, Hebrew, Russian, Bulgarian, Turkish/ scandinavian, Greek, east European language, European language/America language
Langue and interface optional
Simple Chinese, traditional Chinese, Japanese, Korean, Vietnamese, Thai, Arabic, English, Bulgarian, Czech, Denish, German, Finnish, French, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish and Turkish.
Machine size
Stainless steel cabinet
Height 541mm
Length 345mm
Width 285mm
Protection grade
IP55
Nozzle
Heat nozzle
Diameter: 41.3mm
Length: 240.5mm
Tube
High flexility
Length: 2m
Diameter: 23mm
Bending radius: 76.2mm
Smart Cartridges
Ink Smart Cartridge: 750ml
Make-up Smart Cartridge: 750ml
Electric request
Power supply: 100-120/200-240VAC, 50/60Hz., 120W
Weight
Packing net weight: 39.68 Ibs. (18kg)
Opentional configuration
Positive pressure air pumpair dry unit, used for high humidity environment (need air source)
Production detection, fault relay, RS485 extension plate
RS232, shaft encoder, alarming light extension plate
9.8 feet (3m) nozzle tube
Other spare parts
