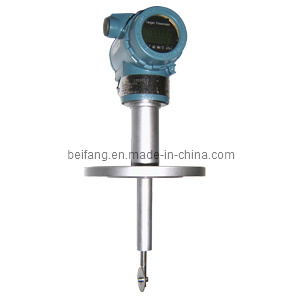

Insertion Flow Meter (100BE)
| Price: |
US $ 600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
100BE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Insertion Flow Meter |
| Display: |
Digital Screen |
| Mateiral: |
Steel |
| Sensor: |
Plug-in |
| Type: |
Turbine Flow Meter |
| Principle: |
Impeller |
| Measuring Principle: |
Mechanics |
Product Description
Insertion flow meter
Diameter: DN15~DN2000mm or bigger.
High and low temperature, -196C~+450C
High pressure: 0~42Mpa.
Features:
1. Measurement flow of liquid, gas, steam, ropy mediums or ambulatory mediums in low, normal or high temperature condition.
2. No movable part, safe and reliable.
3.4-20mA, 0-10V, impulse, and RS485 outputs.
4. Easy installation and maintain.
|
Medium |
Liquid, Gas and Steam |
|
Caliber |
Pipe type 15~300mm |
Clamp type15~600mm |
Plug type100~2000mm |
|
Pressure |
0.6~10MPa |
0.6~42MPa |
0.6~42MPa |
|
Medium Temperature |
-196C~+450C( Confirming the temperature range before purchase) |
|
Precision |
± 0.2% |
± 0.5% |
± 1.0% |
± 1.5% |
± 2.5% |
|
Range |
1: 3 |
1: 5 |
1: 10 |
1: 10 |
1: 10(Steam) |
|
Compensation |
Temperature compensation; Pressure compensation |
|
Repeatability |
0.1%~0.08% |
|
Power Supply |
3.6Vlithium battery, 24V DC |
|
Output |
LCD display, and 4~20mA, 0~10V, impulse or RS485 (Optional) |
|
Material of measure tube |
Carbon Steel; 304; 316L; Being able to provide other according to user requests |
|
Explosion- Prevent Symbol |
ExiallCT4, ExiallBT4 |
|
Protection Rank |
IP65; IP67 |
