Product Specifications
Prod Model: |
HGCD |
Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East |
Accuracy: |
?à0.2-0.5% |
Main Application: |
Conductive Liquid |
Sensor: |
Plug-in |
Type: |

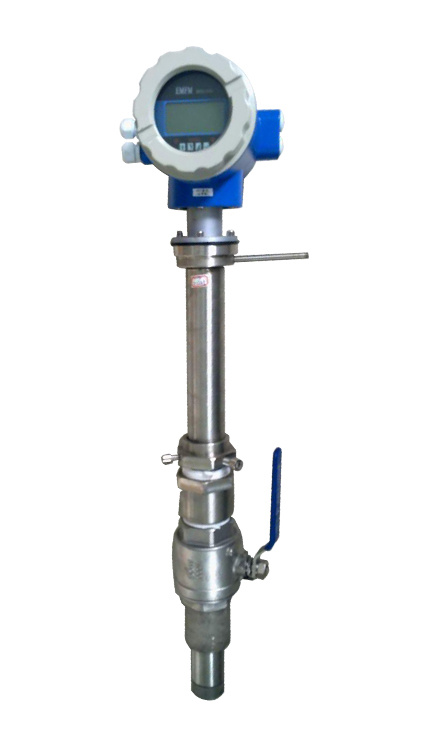

Electromagnetic Flow Meter |
Measuring Media: |
Liquid |
Size: |
Dn150 to Dn600 |
Measuring Principle: |
Faraday's Law of Induction |
Product Description
1.Suitable pipeline: DN150 to DN600
2.Electrode material: SS 316L
3.Liner material: PVDF
4.Body mateial: SS304
5.Accuracy: 1.5%FS
6.Fluid temperature: less than 100ºC.
7.Power supply: 24VDC
8.Output: 4-20mA
9.With ball valve
9.Process connection: welding ball valve's neck on pipeline
Jiangsu Hongguang Instrument Factory Co., Ltd. Was established in 1972, originally a state-owned company, a Subsidiary of Suyi Group, which has enter the the approved vendor list of PetroChina, Sinopec
Annual marketing turnover about: 67 million dollars
Company Vedio instruction linkage: http://youtu.be/5QgNJ8GZvOQ
