Product Specifications
| Prod Model: |
CPJ-4025W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screw Thread Measurement: |
for Profile Measure and Inspection |
| Certification: |
ISO, CE |
| Application: |
Machinery, Cutter, Mould, Electronic etc |
| Screen Size: |
400mm |
| Testing Travel: |
250x150x100m |
| Accuracy: |
<=(4+L/200)Um |
| Resolution: |
0.001 Mm |
| Dimension: |
1215x646x1210mm |
| Package: |
Vacuum Packaging and Free Fumigation Wooden Case |
| Warranty: |
12 Months |
Product Description
No Difficult Products to Test in the World! --Welcome to contact us and visit our factory!

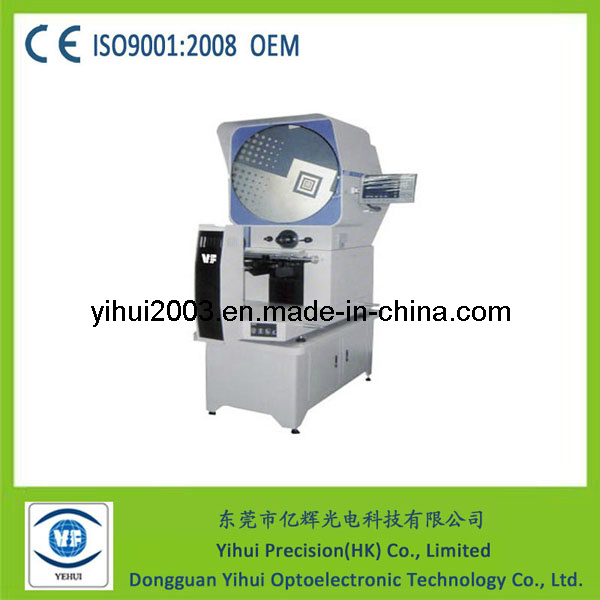

Instruments for screw thread measurement (CPJ-4025W)
Usage:
1. To measure mechanical parts(like the length, angle, contour or surface shape)
2. To inspect surface and complicated work-pieces(such as cam, screw thread, gear and so on )
3. To be used in meter, electron, aerospace machinery, light industry, research institute and measurement- -inspecting department.
"Established in 2003, professional manufacturer of measuring machine. "
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.
4. Extra warranty period: We will provide to user long-life after-sale advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.
Welcome to contact us and visit our factory!
Working table
|
Work table' s size(mm) |
450*200 |
|
X-axis travel(mm) |
250 |
|
Z-axis travel(mm) |
150 |
|
Y-axis travel(mm) |
100(for focus) |
|
Turning range |
± 15° |
|
Resolution(X-axis, Z-axis) |
0.001mm |
|
The indication error of coordinate(µ m) |
< =(4+L/200) |
|
Dimension |
L*W*H(mm) |
1215*646*1210 |
|
Weight |
Unit: kg) |
240 |
|
Projector screen |
Screen size(mm) |
Ø 400 |
|
Screen rotary range |
0° ~360° |
|
Ratory angle Resolution |
1´ or 0.01° |
Lens
|
Magnification |
|
10(option) |
20X(option) |
50X(option) |
100X(option) |
|
Object view(mm) |
|
Ø 40 |
Ø 20 |
Ø 8 |
Ø 3 |
|
Working distance(mm) |
|
103.9 |
95.1 |
65.7 |
35.0 |
|
Data processing system |
DC-3000 multi-function data processing system, appearing in chinese, can be used to gather the data and measure the point, line, circle, angle and distance |
|
Illumination |
Transmission: 24V/150W, cooling by fans.
Reflection: 1V/150W, illuminated by two fibers, cooling by fans. |
|
Power |
110V/220V(AC); 0/60HZ; Total power=400W |
|
Option |
Mini-printer, Edge detector, M2D software and so on, please refer to Accessories for measuring projector for more details. |
