Product Specifications
| Prod Model: |
DLSKS-X802C |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Control Power: |
DC24V |
| Relative Humidity: |
: < 85% |
| Machine Capacity: |
< 5.0 kVA |
| Type: |
Teaching Model |
| Laser Model: |
Technicians Education Equipment |
Product Description
DLSKS-X802C

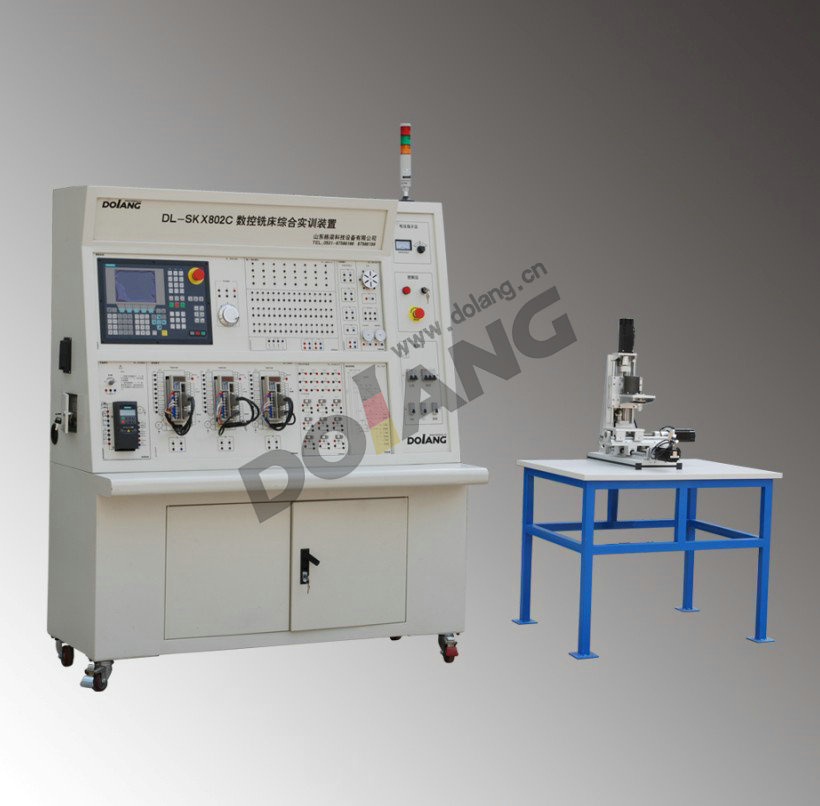

Intelligent CNC Milling Machine Maintenance Training Equipment(Semi-real object)
The simens 802 C system, with the semi-real object, complete the trouble shooting and maintenance in the the electrical control part of milling machine
ReviewNumerical control technology is the foundation of the modern manufacturing technology. It composites computer technology, automatic control technology, automatic detection technology and precision machinery and other high technology and new technology, and it is widely used in mechanical manufacturing industry. Dolang technology equipment Co., LTD. is one of the main production bases of China education technology and equipment, a provincial high-tech enterprise. 10 years, use "leading education new ideas, and create a new education environment" as the enterprise objective, has been concentrate, professional, concentrate on education, higher vocational education career development, for schools and students to provide comprehensive, the long time tracking service, to provide equipment and technical support for the whole country's higher institutions, vocational colleges skills competition
I. Equipment parts
1, A body part
a) A body is steel plastic spraying.
b) Body divided into two parts: the top is the numerical control system and operation panel, I/O panel, control module; Below is the axis panel, main shaft panel, limit switches signal panel, principle chart plate; The right is power display area, control areas and the power supply area.
c) In a body part, a six hole electrical outlet; From the front of the platform look at left side bottom has three aviation plug, and its function is to connect the semi-object stroke switch signals, and the power wire and analog signal lines of spindle variable frequency motor; The central of left side has a communication box, its effect is connected with CNC and computer; The right side has a quadrupole circuit breaker, as the system total control power to use.
d) Bottom part of platform is a double open door structure, under the experiment table also has four direction wheel;
e) Behind part of the platform is a double open door structure, facilitate each parts to install;
f) The overall design meet the training requirements that schools do numerical control, appearance is beautiful and easy, from the front to see that the front of upper parts are tilt
2, 3 coordinates aluminum alloy semi-real object3, Seven independent hanging box modulea) The numerical control system module SINUMERIK 802 C base lineCNC system panel organic put liquid crystal display area, the keyboard, the operation area together, user-friendly and operation.Advantages:Use DIN standard programming and ISO code, and is easy to operation;High reliability;Control system wiring is simple and are less susceptible to interference, compact structure;Through processing cycle and outline definition provide a large quantity of programming help;b) High voltage schematic diagram modulec) Motor moduleAdvantages:Realize the tool simulation;Water pump simulation;Lubrication simulation.d) Spindle moduleAdvantages:Spindle use inverter control;Siemens 802 C control simulation voltage;Wiring is simple, easy to control.e) Feeding module:Advantages:Realize connections with the third party servo drive;External connection;Application of simulation amount.f) I/O modulesAdvantages:Training students' connection link;Training students' principle set;Can be used again.g) Control moduleAdvantages:Training control circuit application;The axis micro switch signal connection;Contains nine middle relay.4, Power moduleRight of electric operation area is power supply unit, equipped with the voltage display element; Start, stop, emergency stop button.5, Alarm recognition moduleAdvantages:Machine tool operation, alarm, stops.6, The instructions and training manual7, Safety test lineIII. Technical parameter1, Input power:three-phase five wire AC380V±10% 50Hz2, Control power: DC24V3, Braking power: DC5V4, Machine capacity: < 5.0 KVA5, Dimension: 1455 x 640 x 1700 (mm)6, Security protection: leakage protection (movement current: 30 mA) over current protection, overload fuse protection7, Work environment: temperature-10 ºC ~ + 40 ºC relative humidity < 80% (25 ºC)
