Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Material Type: |
Stainless Steel |
| Quality Control System: |
The Third Party Inspection, Self-Inspection. |
| Surface Treatment: |
Blacking, Polishing, Anodize, Painting. |
| Production Ability: |
500 Tons Per Month |
| Service: |
OEM |
| Supply Market: |
Global |
| Origine: |
Qingdao China |
Product Description
Investment Casting Anchor Part With CNC Machining
1. Material: Iron, Stainless Steel, Carbon Steel, Bronze, Brass, Aluminum, aluminium alloys, copper alloys etc.
2. Weight range: 0.01 kg-200kg
3. Surface treatments: Shot blast, powder coating, mechanical polish, paint, plate etc.
4. Tolerance: CT6-8
5. Application: Aerospace industries, power generation industries, complex shapes turbine blades, cooling systems, equiaxed blades, triggers, hammers, military, medical industries, commercial industries and automotive industries etc
6. Casting equipments: Intermediate frequency furnaces, high-frequency furnaces, Vacuum investment melting furnaces.
7. Refractory materialscasting: Silica, zircon, various aluminium silicates, alumina etc.
8. Binders: Ethyl silicate, silica sol, sodium silicate etc
9. Stainless steel lost wax investment casting
10.The Machining process:casting semifinished product- Hardening and tempering-Testing-Machining-Checking-Packing. 11.Quality Control:
Our company have a large number of the Quality Control Engineers, and we also have a lot of high precision testing equipment. such as: three coordinate measuring system, spectrograph, Optical Brinell hardness tester, tensile testing machine, air-gauge, Dial bore gauges, Inside Micrometer etc.
12.Our advantage:
1).We are one of the leading exporters with a history of more than 20 years, enjoying an excellent reputation and keep a good relationship with many foreign companies, especially in Japan, Europe, America and Southeast Asia.
2).We have a lot of the high precise Machining equipment and high precision testing equipment, our manufactory also have a large number of the engineers. we can provide the best products and the best service for you.
13.Our promise:
1).The delivery time and the package can be controled according to the customers' requirement completely.
2).we will produce the products seriously according to the drawings, and make sure all the products is suitable for the custoners.
3).We will communicate with the customers all the time about the products, we will send the pictures to the customers, so that they can know the Processing process
| Description | Lost wax casting lost wax casting |
| Technology | Silica sol binder |
| Lost wax |
| Investment casting process |
| Material | Stainless steel 301 |
| Standards | ASTM, JIS,AISI |
| BS, DIN, EN, ISO |
| Advantages | Heat treatment to anneal, harden and temper metals |
| Non destructive testing:crack detection and x-ray |
| Machining |
| Surface finishing processes:including polishing, anodizing, painting, powder coating and plating. |
| Capacities | 200Tons/year |
| Applications | Marine hardware parts |
| Lock parts |
| Auto parts |
| Machinery parts |
| Electric tools parts |
| Stainless steel pipe & valve |
| Hardware tools & other fields |
| Weight range | 0.05KG~50KG |
| Service | OEM service are welcome |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm

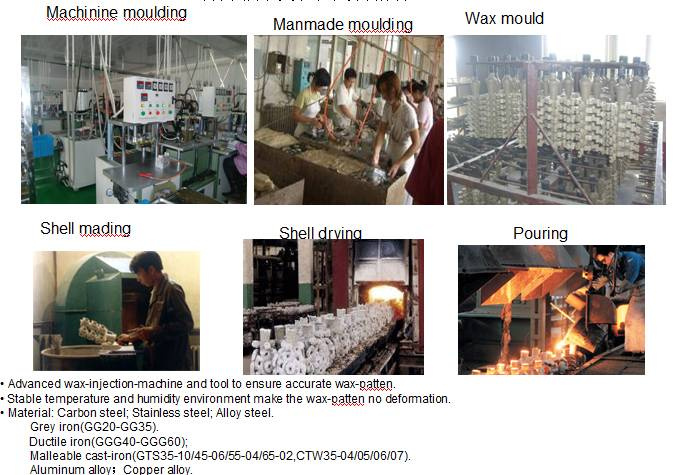

Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.

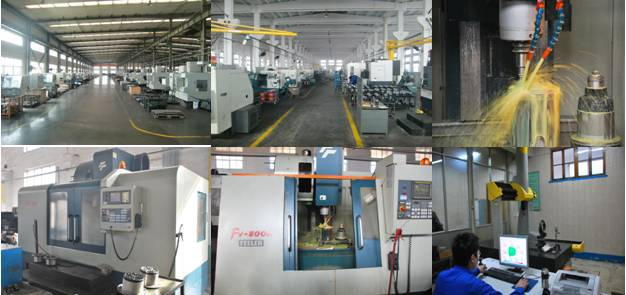

Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
