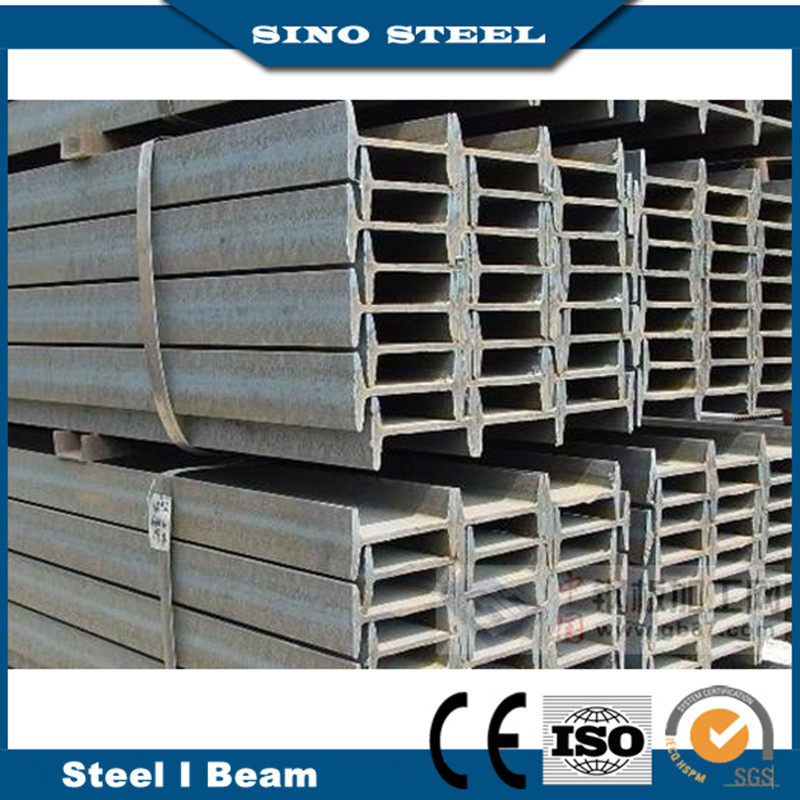

Ipe100 Ipe120 Ipe 140 Ipe160 Ipe180 Ipe200 I Beam Steel

Name: Ipe100 Ipe120 Ipe 140 Ipe160 Ipe180 Ipe200 I Beam Steel
Brand: china-manufacturer-directory.com
SKU: 762863365
Availability: InStock
Rating: 4.8 (138 reviews)

Price:	US $ 350-400/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Ton
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Specification
1. Leg Height: 100-630mm
2. Depth: 50-180mm
3. Thickness: 4.5-10mm
4. Length: 6m,9m,12m or your required length
5. Material: Q235B, SM490, SS400, Q235B, Q345, Q345B, etc
6. Surface treatment: hot rolled/carbon/galvanized
7. Standard: BS, JIS, ASTM, DIN, EN, GB, AISI
8. Application: used in various building structures, bridges, vehicles, bracket

Our advantage
1. Certificate: ISO, BV, CE, SGS
2. Feedback within 24 hours
3. Cheap price based on good quality
4. Quick delivery
5. Production Capacity:30000tons/Month
6. Experience for ten years, specilized in manufacturing and exporting
7. Customers from many continents, such as North America, South America, Europe, Africa, etc
Products size information

Size	H(mm)	Tolerance (mm)	B(mm)	Tolerance (mm)	Thickness (mm)	Tolerance (mm)	Weight (kg/m)
8#	80	±2.0	50	±2.0	4.5	±0.5	7.520
10#	100	±2.0	68	±2.0	4.5	±0.5	11.261
12#	120	±2.0	74	±2.0	5.0	±0.5	13.987
14#	140	±2.0	80	±2.0	5.5	±0.5	16.890
16#	160	±2.0	88	±2.5	6.0	±0.5	20.513
18#	180	±2.0	94	±2.5	6.5	±0.5	24.143
20A	200	±3.0	100	±3.0	7.0	±0.7	27.929
20B	200	±3.0	102	±3.0	9.0	±0.7	31.069
22A	220	±3.0	110	±3.0	7.5	±0.7	33.070
22B	220	±3.0	112	±3.0	9.5	±0.7	36.524
25A	250	±3.0	116	±3.0	8.0	±0.7	38.050
25B	250	±3.0	118	±3.0	10.0	±0.7	42.030
28A	280	±3.0	122	±3.0	8.5	±0.7	43.492
28B	280	±3.0	124	±3.0	10.5	±0.7	47.888
30A	300	±3.0	126	±3.0	9.0	±0.7	48.084
30B	300	±3.0	128	±3.0	11	±0.7	52.794

Size	Depth xFlange width (mm)	Web Thickenss (mm)	Flange Thickness (mm)	Weight (kg/m)
IPE100	100x55	4.1	5.7	8.1
IPE120	120x64	4.4	6.3	10.4
IPE140	140x73	4.7	6.9	12.9
IPE160	160x82	5.0	7.4	15.8
IPE180	180x91	5.5	8.0	18.8
IPE200	200x100	5.6	8.5	22.4
IPE220	220x110	5.9	9.2	36.2
IPE240	240x120	6.2	9.8	30.7
IPE270	270x135	6.6	10.2	36.1

Size	Depth xFlange width (mm)	Web Thickenss (mm)	Flange Thickness (mm)	Weight (kg/m)
IPEAA80	80x46	3.2	4.2	4.95
IPEAA100	100x55	3.6	4.5	6.72
IPEAA120	120x64	3.6	4.8	8.36
IPEAA140	140x73	3.8	5.2	10.05
IPEAA160	160x82	4.0	5.6	12.31

Prod Model:	ipe/ipeaa I beam
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Leg Heigh:	100-630mm
Depth:	50-180mm
Thickness:	4.5-10mm
Length:	6m,9m,12m or Your Required Length
Type:	H-Section Steel
Standard:	AISI
Trademark:	Quality Carbon Structural Steel and Alloy Structural Steel
Forming:	Hot-Rolled Steel
Member:	Steel Beam
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Wall Stud
Application:	Steel Structure Bridge
Connection Form:	Hot Rolled Steel Beam

Jinan Sino Steel Co., Ltd was one large Steel Holding Company, as a window of foreign trade of Chinese Steel industry, our company has been conducting extensive exchanges and friendly co-operations with domestic and overseas companies on the basis of equality, mutual benefit and win-win, greatly supporting the healthy and rapid development of China's iron and steel industry. The registered capital of the company is 30 million yuan. According to the overall deployment plan, as well as the guideline of specialized operation, the company is now mainly engaged in such international and domestic business operations as importing raw materials, mainly iron ore, for iron and steel industry; Exporting steel sheet (galvanized steel coil/sheet, corrugated steel sheet, prepainted steel coil coil/sheet, tinplate coil/sheet, hot/cold steel sheet or coil, etc), Beam, Angle, Channel and kinds of steel pipe; Processing materials of the kind that have been imported or supplied by clients etc.

Meanwhile, Group company imported the most advanced technology from Germany, Japan, Belgium and America, UK etc. For iron-smelting, steel-smelting, and tube rolling, processing for wire rod and steel sheet, and direct reduction iron making equipment in the world, also equipping with the complete automatic system, then become the most advanced and biggest professional manufacture in China at that time. After producing, our group company insisted in arriving at the advancement in the technology field by our continuing effort.
