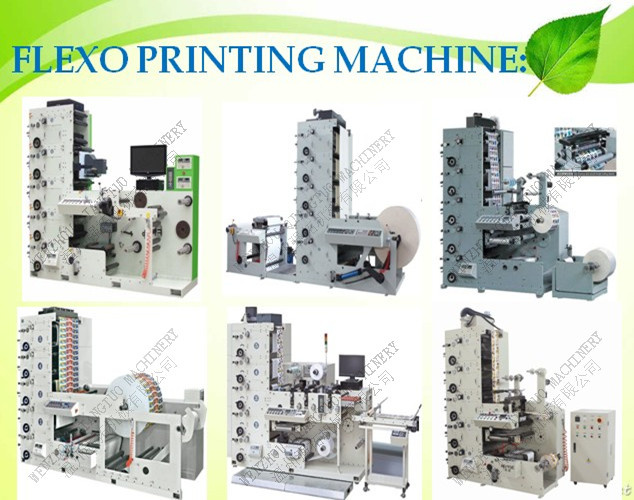

IR/UV Drying System Flexo Label Printing Machine
| Price: |
US $ 24000Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
QT-5C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Anilox Roller: |
Ceramic |
| Doctor Blade: |
1PC/ Color |
| Die-Cutting Unit: |
1unit |
| Slitting Unit: |
1set |
| Type: |
Ink Jet Type |
| Style: |
Flexographic Printing Presses |
| Structure: |
Rotary Printing Press |
| Color & Page: |
Multi-Colour Printing Press |
| Print Interface: |
No |
| System Supported: |
No |
Product Description
IR/UV Drying System Flexo Label Printing MachineFunctional characteristics:1. The main motor is adopted the import stepless regulation of frequency conversion.
2. Unwinding and rewinding are controlled by magnetic powder brake, clutch ( or by automatic tension controller of Mitsubishi, made in Japan. )
4. One ceramic anilox roller for each group, adopt the anilox roller to spread ink
5. Printing unit adopt 360° For registration
6. Printing unit have one infrared to dry the device group each
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process, this kind of printing machine is the most suitable for each printing companies to print on adhesive-paper labels and other commercial labels.
9. The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.Main technical parameter:Model RY330 RY470
Printing speed 5-60M/min 5-60M/min
Printing color 2-6(color) 2-6(color)
Max web width 330mm 460mm
Max printing width 320mm 450mm
Max unwind diameter 600mm 600mm
Max rewind diameter 600mm 600mm
(Roll core inner diameter): 76mm(3 inch) 76mm(3 inch)
Printing girth 175-400mm 175-400mm
Overprint precision ± 0.1mm ± 0.1mm
Overall dimensions(L× W× H)
Machine weight (about)3000KG (about)3500KG
Power 380V/AC (Three-phase) 50Hz
Total power 6.8KW (UV not include UV device)
Our Service:
1.Installation & Traning Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well. In addition, we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
2.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Also we offer one year guarantee period, paid service for whole life.Contact Information:Company: Wenzhou Qiangtuo Machinery Co., Ltd.
