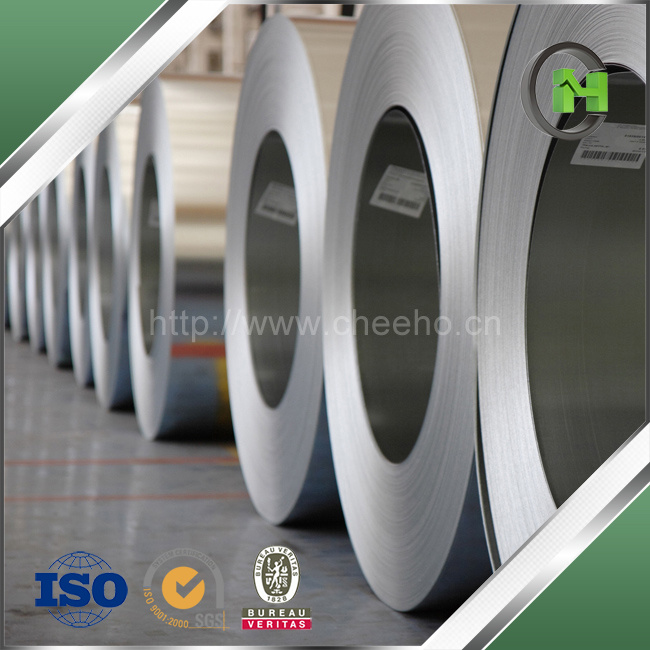

Price: | US $ 550-650/Ton |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 25/Ton |
Pay Type: | L/C,T/T |
Prod Model: | C50W600 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description: | Non Grain Oriented Electrical Steel |
Brand Name: | Cheeho & OEM |
Steel Grade: | C50W600 |
Iron Loss: | 4.062W/Kg (F=50Hz B=1.5t) |
Magnetic Flux Strength: | 1.577t ((F=50Hz H=5000A/M)) |
Density: | 7.75kg/Dm3 |
Insulative Coating Type: | Semi-Organic |
Coating Thickness: | 0.8-2micron |
Lamination Factor: | 97% |
Approved Certificate: | SGS & ISO & BV & TUV |
Type: | Non-oriented Silicon Steel |
Standard: | JIS |
Technique: | Cold Rolled |
Brief Introduction
Non Grain Oriented Electrical Steel, often called Electrical Steel Coil, is steel with silicon added to it. The addition of silicon to steel increases its electrical resistance, improves the magnetic flux strength, and reduces the steel's hysteresis loss. Hysteresis is the lag between the times when a magnetic field is first generated or applied to the steel and when the field fully develops. Through control of the grain size, the hysteresis loss of the steel can be accurately controlled.

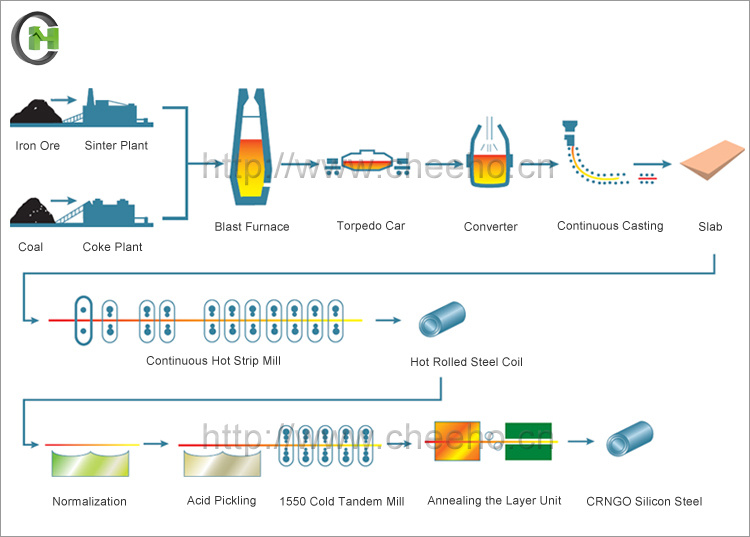

Production Flow Chart
Production Line
Specifications
1. Grades: C50W600
2. Thickness: 0.5mm & 0.65mm
3. Width: 1200mm
4. Inner Diameter: 508mm
5. Weight of Steel Coil: 3-8MT
Parameters
1. Density: 7.75kg/dm3
2. Iron Loss: 4.409W/Kg (f=50Hz B=1.5T)
3. Magnetic Flux Strength: 1.674T ((f=50Hz H=5000A/M))
4. Surface Insulation Resistance: >10Ω/cm2
5. Yield Strength: 237MPa
6. Tensile Strength: 385MPa
7. Extended Length: 38% (380MPa)
8. HV1 Hardness: 127
9. Lamination Factor: 97%
10. Minimum number of Bends: 10Times
Packing
Applications
1. Small relays
2. Pulse transformers
3. Generators
4. Motors
5. Transformers
6. Power distribution
7. Ballast
8. Instrument
9. Audio
10. Generators for steam turbine and water wheels
Superiority
1. Low iron loss, high magnetic flux strength, comes up to the international advance standard.
2. Slight thickness difference between the horizontal and the longitudinal directions, promising the high lamination factor.
3. Insulating coating: uniform color, good insulation, strong adhesivity, high heat resistance, high imputrescibility.
4. High accuracy dimension and excellent mechanical property are convenient for the users to slit, cut and laminate.
5. Smooth surface, no rust, no rolling marks, no cold lap, no crease, no bubble cell, no delamination defects.
6. Has been SGS approved, in accordance with various domestic and international environmental regulations.
Dimensional and Shape Tolerances
Width (mm) | Thickness (mm) | Thickness tolerance (mm) | Longitudinal thickness tolerance (mm) | Traverse thickness tolerance (mm) |
800-100 | 0.35 | ±0.03 | ≤0.02 | +1.500 |
0.5 | ±0.03 | ≤0.03 | ||
0.65 | ±0.04 | ≤0.03 | ||
>1000 | 0.35 | ±0.03 | ≤0.03 | +1.500 |
0.5 | ±0.03 | ≤0.03 | ||
0.65 | ±0.04 | ≤0.04 |
