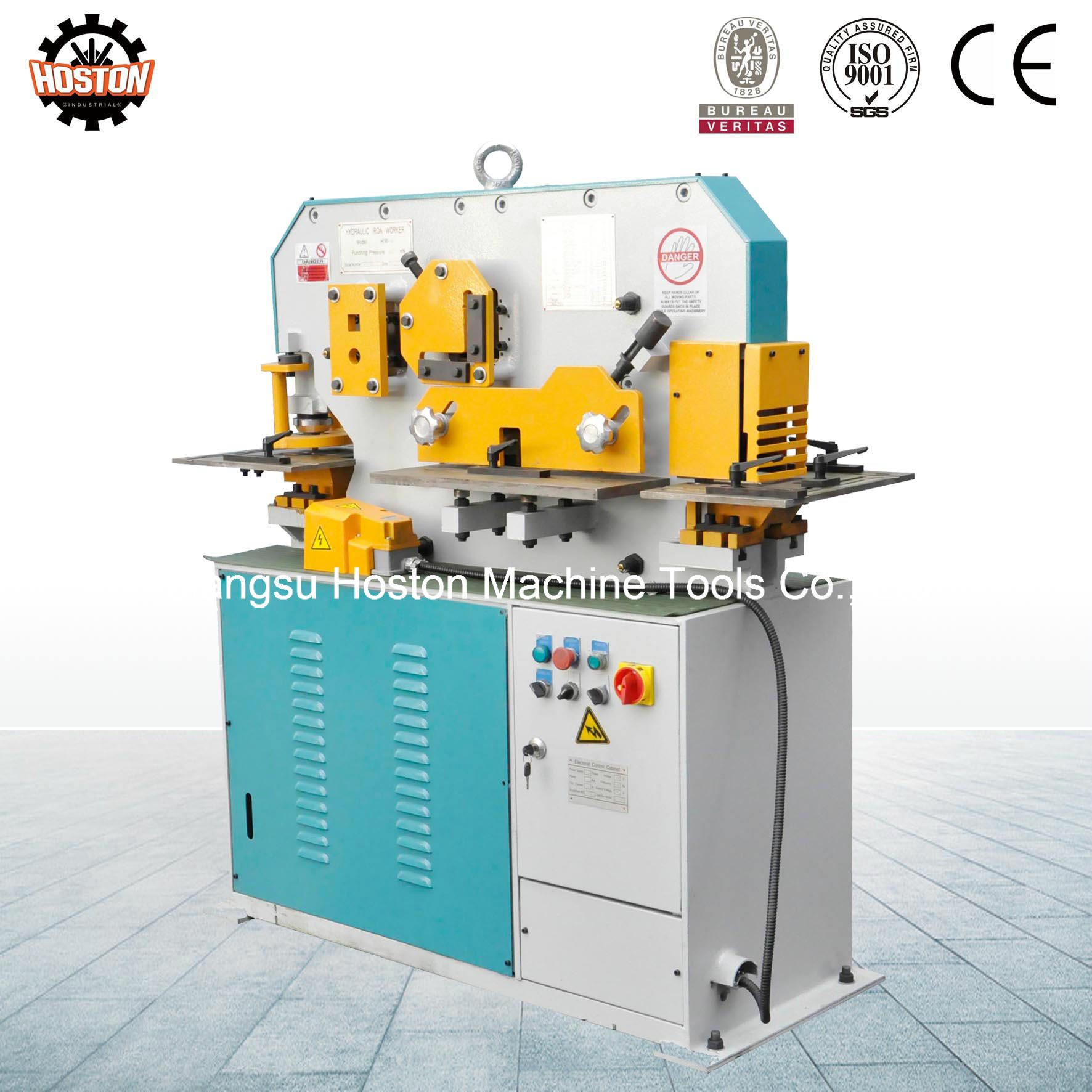

Hydraulic Iron worker
I. Introduction:
HIW series industrial-grade hydraulic iron worker featuring multiple functions, including: Round hole punching, square hole punching, oblong hole punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, steel plate bending, angle steel notching and bending, angle steel shearing/cutting, flat shearing/cutting, round/square bar shearing/cutting, C-channel shearing/cutting, I-beam shearing/cutting, T-bar shearing/cutting, press brake, angle bending and pipe notching! It comes standard with: Quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
HIW-D series is improved machine on the base of standard HIW series. It goes along with Automatic Holding System and Temperature Cooling System.
Automatic Holding System: There is automatic holding system in angle steel shearing and plate shearing work position. The holders will fix the position of workpiece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency.
Temperature cooling system: Through the temperature monitoring screen you can read the temperature of oil, 55 degree is our default configuration, once the machine is working, oil temperature goes higher than 55 degree, the cooling system inside will run automatically to decrease temperature in order to protect machine.
HIW-L series is improved machine on the base of standard HIW-E series. It also goes along with automatic holding system and temperature cooling system. At the same times, punching position and shearing position can work synchronously.
II. Main standard properties components of Ironworker:
1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance
III. Keywords:
Hydraulic Ironworker machine, Mechanical Ironworker, Ironworkers, Iron worker, steel worker, Metal Worker, shearing machine, cutting machine, sheet metal punching machine, notching machine, guillotine machine, bending machine, press brake, c-channel bar cutting machine, H-beam cutting machine, angle bar cutting machine, dual hydraulic cylinders, single cylinder, punch and shear station, rolling machine, band saw, pipe punching, tube bending, pipe notching, machine tool.
Model |
HIW-60 |
HIW-90 |
HIW-120 |
HIW-160 |
HIW-200 |
HIW-250 |
Processing Capacity (KN) |
600 |
900 |
1200 |
1600 |
2000 |
2500 |
Material Tensile Strength (Mpa) |
≤450 |
≤450 |
≤450 |
≤450 |
≤450 |
≤450 |
Flat Shearing |
Max. Shearing Capacity
(thickness* width (mm) |
16×250 |
20×330 |
25×330 |
30×355 |
35×400 |
40×450 |
8×400 |
10×480 |
16×600 |
20×600 |
25×700 |
30×750 |
Bar Shearing |
Square Bar (mm) |
40 |
45 |
50 |
55 |
60 |
65 |
Round Bar (mm) |
45 |
50 |
60 |
65 |
70 |
80 |
C-channel (mm) |
126 |
160 |
200 |
280 |
300 |
320 |
I-beam (mm) |
126 |
160 |
200 |
280 |
300 |
320 |
Angle shearing |
90° shearing (mm) |
120×12 |
140×12 |
160×14 |
180×16 |
200×18 |
200×20 |
45° shearing (mm) |
70x8 |
70x10 |
80x7 |
80x10 |
80x10 |
80x10 |
Hole Punching |
Max. Punching Capacity (diameter* thickness) (mm) |
Φ 25*16 |
Φ 30*20 |
Φ 35*25 |
Φ 38*26 |
Φ 40*35 |
Φ 40*40 |
Motor (KW) |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
Dimension(mm) |
Length |
1650 |
1950 |
2350 |
2680 |
2800 |
3200 |
Width |
800 |
900 |
980 |
1060 |
1260 |
1440 |
Height |
1780 |
1930 |
2100 |
2380 |
2420 |
2450 |
Weight |
1800 |
2600 |
4400 |
6600 |
7500 |
10800 |
