Product Specifications
| Prod Model: |
SZ-YX1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
3-40mm |
| Power: |
3.92kw |
| Weight: |
900kg |
| Dimension: |
1100*1100*1800mm |
| Type: |
Glass Edging Machine |
| Certification: |
CE |
| Control System: |
Industrial Computer |
Product Description

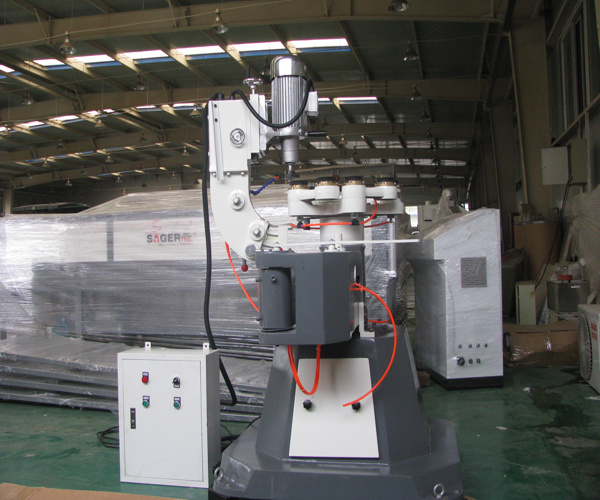

Irregular Glass Grinding and Beveling Machine (SZ-YX1)
SZ-YX1 Irregular Glass Grinding and Beveling Machine is suitable for processing the edge of round shape, oval shape & other irregular shape of glass sheet with various size and thickness. It can be process the round & oval shape glass semi automatically. It adopts the different wheels to processing different shape like semicircular, flat edge and OG edge etc. Adopt the cup shape wheel and adjust the angle of motor can be processing the bevel edge.
| Thickness | 3-40mm |
| External Dia | Φ100-2200mm |
| Power | 3.92KW |
| Weight | 900kg |
| Dimension | 1100*1100*1800mm |
| Max.Width of Bevel | 35mm |
| Bevel angle | 0-45° |
Established in 2008, Sager Tech.is a professional designer and manufacturer for machinery, which is specialized in glass industry. We are located in Beijing, with convenient transportation access. All of our machine comply with CE regulation and are greatly appreciated in a variety of different markets all over the world.
At initially, Sager was devoted to design and produce glass laminating equipment as long as provide the solution to work for laminating glass. With a fast development, Sager was starting up the project for new glass processing machine by optimized cooperation and source integration. Now, our products range is increased, which include completed PVB-EVA laminating production line, laminating furnace and material, all the type of grinding machine, washing machine, drilling machine as well as sandblasting machine.
n-right:0.0000pt;margin-left:0.0000pt;mso-para-margin-right:0.0000gd;mso-para-margin-left:0.0000gd;text-indent:0.0000pt;mso-char-indent-count:0.0000;text-autospace:ideograph-numeric;mso-pagination:none;text-align:justify;text-justify:inter-ideograph;" >
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching USA, Europe, Australia, South America etc.
Our business philosophy is TECHNOLOGY RENOVATION, COST CONTAINMENT, QUALITY CONTROL and SATISFACTORY AFTER-SALE SERVICE. Being provide qualified and advanced products for our clients in glass industry is our mission.
Sager Tec., is a professional designer and manufacturer for machinery, which specialized in glass industry. At initially, Sager was dedicating to design and produce glass laminating equipment, as long as providing solution for laminating glass processing. The products have been sold to USA, Europe, Australia, South America etc., where more than dozens of countries in past few years, With a fast growing and developing, Sager was starting up the project for new glass processing machines in 2007, by optimized cooperation and source integration, we are ready and confident to provide you qualified machines basis on 10 million fixed capitals, 35 technicians and 396 employees. Now, the products range is increased, to which including competed PVBLaminating production line, EVA laminating furnace,
And materials, all the type of grinding machines, as long as washing machines and other glass processing equipment. Our business philosophy is " source integration, technology renovation, ensures quality and service clients" we promise only to what we can achieve. Beijing provide qualified and advanced products for our clients in glass industry is our mission.
