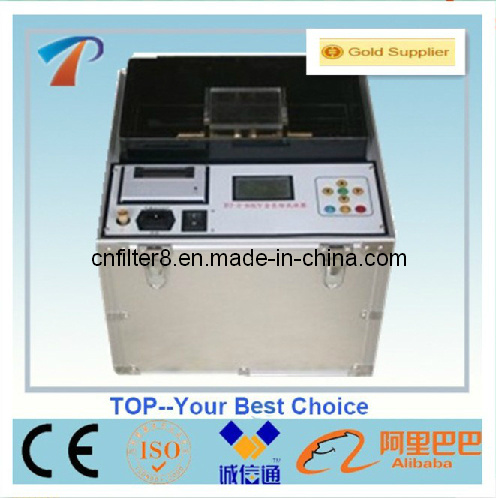

IS6792 Portable transformer oil dielectric strength measure instruments (DYT)
1) IEC-156, IS6792, ASTM D 877, ASTM D 1816, UNE 21.
2) Withstand Test A
3) Withstand Test B
4) 5 Minute Test
5) User defined
100 Test results storage capacity
Automatic Oil Breakdown Voltage Tester to determine the withstanding capacity of any insulating oil,
Test as per International standards
DYT series insulating oil testers are fully automatic micro controller
Based system, completely self-contained, compact and portable giving smooth
Variable test voltage from 0 to 60, 75, 80, 90 or 100 kV for testing the
Dielectric strength of insulating oil in accordance with all international
Standards like IEC156/IS6792/ASTM D 1816/ASTM D877/ UNE 21 specifications.
Auto mode
DYT series insulating oil testers are fully automatic type.
1) IEC-156, IS6792, ASTM D 877, ASTM D 1816, UNE 21.
2) Withstand Test A
3) Withstand Test B
4) 5 Minute Test
5) User defined
100 Test results storage capacity
DYT series insulating oil testers has a storage capacity of 100 test results which can be recalled and printed.
LCD display
DYT series insulating oil testers use LCD
For easy readability of the BDV test results.
Built in printer
The printer used is a thermal paper print outs.
The paper rolls can be easily installed by any person.
User Friendly RS 232 Interface
RS 232 interface is very easy to use to communicate stored data which can be saved in text format.
Safety protection
Safety interlocks are provided on the test chamber. Zero interlock protection to ensure operator safety.
Accurate Performance
DYT series not only has all basic functions of an insulating oil tester but also has unique features that are seldom seen in similar products. For e. G. PROOF test A, PROOF test B,
5 Minntes test, LCD to display all test data.
DYT series ensures high work efficiency and reliability in any tough environment
Test equipment
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Automatic Freezing Point & Pour Point Tester model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF
21. Underground water/gold detector model TP-UWD
| Input Supply | 220±10% Volts AC, 50 Hz, single phase. |
Test Voltage
| 0-60kV/Model: DYT-60; 0-75kV/Model: DYT-75 0-80kV/Model: DYT-80
0-90kV/Model: DYT-90; 0-100kV/Model: DYT-100 |
| Capacity | 60kV:1.2 kVA;75kV:1.5 kVA;80kV:1.6 kVA;90kV:1.8 kVA;100kV:2 kVA;
|
| Resolution | 0.1 kV |
| Accuracy | 2% |
| Time of Breakdown | <10 millisecond |
| Rate of rise of Voltage | 0.5 to 5 kV adjustable per second ± 10%. |
| kV Indication | Digital display on LCD screen |
Test cell with Electrodes
| Type 'TC-1': 13 mm round electrodes.
Type 'TC-2': 36 mm mushroom electrodes. Type 'TC-3': 25 mm flat disc electrodes. |
Gap Gauge
| 2.5 mm and 2.0 mm |
| Printer Construction | Built in printer for printing results on plain paper. |
| Features | In light weight aluminum cabinet with removable cover, lock and lifting handles. |
| Temperature Range | 5 to 40º C. |
| Relative Humidity | < 85% RH |
| Working Altitude | < 1500 meters. |
| Dimensions / weight (App) | 37 x 38 x 37 cm. Weight: Net 36 kgs for DYT-80
40 x 41 x 41 cm. Weight: Net 42 kgs for DYT-100 |
