Product Specifications
| Prod Model: |
HPS384A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: 440mm×414mm×44.5mm: |
1 U |
Product Description

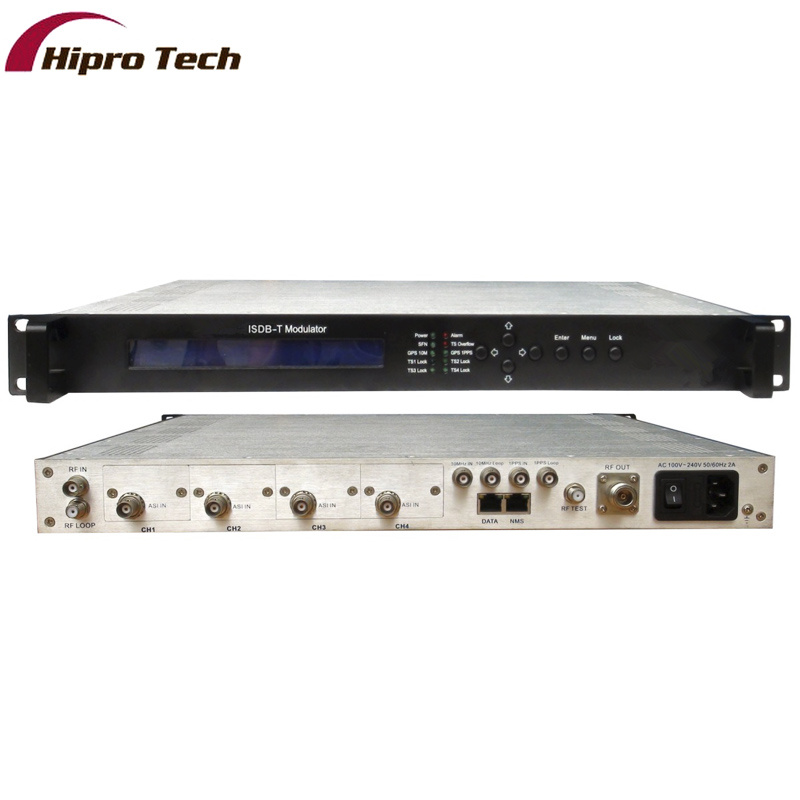

OutlineHPS384A ISDB-T modulator is developed to adapt Japan, Brazil, Argentina and other South American country's terrestrial digital television. The modulator's channel encoding and modulation mode is fully complying with the ARIB STD-B31 standard. This ISDB-T modulator supports four ASI hot backup input, single frequency network, and multi-frequency network. In order to improve the output performance of the transmitter, this ISDB-T modulator also simultaneously supports adaptive linear and nonlinear digital pre-distortion, layered transmission and three transmission modes. Furthermore, this device can be upgraded and controlled through network system, which can be widely used in ISDB-T digital broadcasting network's setting up and set-top box design's production and test.
FeaturesFully complying with ISDB-T (ARIB STD-B31) and ISDB-TB standard
4 ASI in, 1 RF in, 10MHz reference clock and 1PPS in
Layered transmission with A, A+B, A+B+C hierarchy modes
ISDB-T BTS input (with IIP packet), support single frequency and multi-frequency network
Three transmission modes: mode1(2k), mode2(4k), mode3(8k)
Supports adaptive linear digital pre-distortion (DPD)
Supports adaptive non-linear digital pre-distortion (DPD )
MER≥42db
RF output range: 30~960MHz with 1Hz step
Constant temperature crystal oscillating and excellent frequency stability (reach up to 0.1ppm)
LCD display, keyboard and SNMP software operation
Specifications | Input | 4 ASI input, hot backup, BNC interface | | GPS 10MHz reference clock input, BNC interface | | GPS 1PPS input, BNC interface | | 1 RF input for DPD -25dbm~+5dbm | | Modulation | Standard | ARIB STD-B31 | | Mode | mode 1(2k), mode 2(4k), mode 3(8k) | | Constellation | DQPSK, QPSK, 16QAM, 64QAM | | External coding | RS (204,188) | | Internal coding | Convolution (1/2, 2/3, 3/4, 5/6, 7/8) | | Guard interval | 1/4, 1/8, 1/16, 1/32 | | Hierarchy mode | A\A+B\A+B+C | | Time domain interlacing | mode 1: 0, 4, 8, 16 mode 2: 0, 2, 4, 8
mode 3: 0, 1, 2, 4 | | Bandwidth | 6MHz, 7MHz, 8MHz | | RF Out | Connector | N Type, 50ΩImpedance | | RF range | 30~960Mhz,1Hz step | | Output level ATT | -26dbm~+3dbm,0.1db step | | MER | ≥ 42db | | Non-linear DPD | over 10db ACPR improvement (normally) | | linear DPD | over 10db non-flatness adjustment(normally) | | System | LCD display, keyboard and SNMP operation | | Supporting software upgrading through network | | General | Demission (W*L*H) | 440mm×414mm×44.5mm | | Weight | 4.9kg | | Temperature | 0~45(operation),-20~80(storage) | | Power supply | AC 100V~240V,50/60Hz | | Consumption | To be tested |
|
Principle chart![]()
