Product Specifications
Prod Model: |
XT-MS 13X APG |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Light Grey |
MOQ: |
1mt |
Shape: |
Beads |
Sorbent: |
Molecular Sieves |
Desiccant: |
Physical Desiccant |
Kind: |
Desiccant |
Product Description

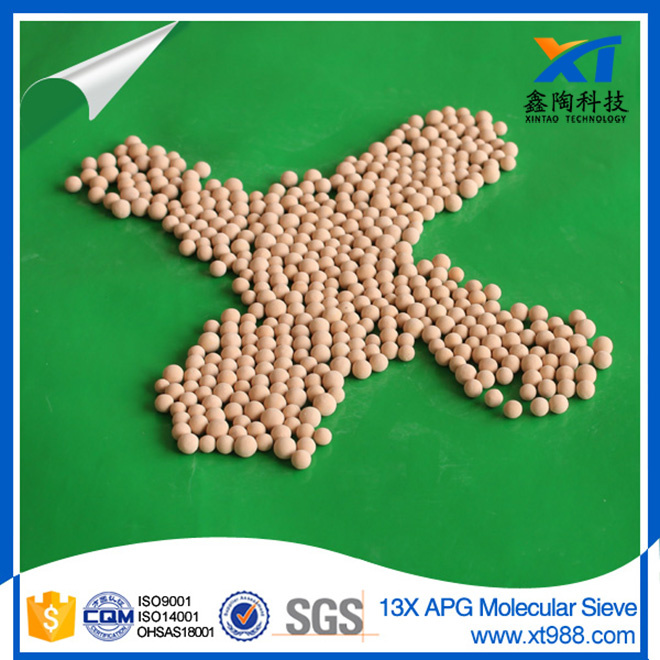

XINTAO 13X APG molecular sieve is suitable for any air cryo-separation plants of any size and any types. It has larger capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation. It is specially designed to co-absorb CO2 and H2O for air cryo-separation industry.
SIZE
13X APG-Zeolites are available in beads of 1-2 mm, (10X18 mesh) 2-3 mm, (8X12 mesh), 2.5-5 mm, (4X8 mesh) and as powder, and in pellet 1.6mm, 3.2mm.
ATTENTION
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
Technical Parameter
Model | 13X APG |
Color | Light gray |
Nominal pore diameter | 10 angstroms |
Shape | Sphere | Pellet |
Diameter (mm) | 1.7-2.5 | 3.0-5.0 | 1.6 | 3.2 |
Size ratio up to grade (%) | ≥98 | ≥98 | ≥98 | ≥98 |
Bulk density (g/ml) | ≥0.7 | ≥0.68 | ≥0.65 | ≥0.65 |
Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 |
Crushing strength (N) | ≥35/piece | ≥85/piece | ≥30/piece | ≥45/piece |
Static H2O adsorption (%) | ≥27 | ≥27 | ≥27 | ≥27 |
Static CO2 adsorption (%) | ≥18 | ≥18 | ≥18 | ≥18 |
Water content (%) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
|
Typical Chemical Formula | Na2O . Al2O3 . 2.45SIO2 . 6.0H2O SiO2 : Al2O3 ≈2.6-3.0 |
Typical Application | Removal of H2O from air fro air cryo-separation application |
|
Package : | Carton box; Carton drum; Steel drum |
MOQ: | 1 Metric Ton |
Payment Terms: | T/T; L/C; PayPal; West Union |
Warranty: | a) By National Standard HG-T_2690-1995 |
b) Offer lifetime consultation on problems occurred |
|
Container | 20GP | 40GP | Sample order |
Quantity | 12MT | 24MT | < 5kg |
Delivery Time | 3 days | 5 days | Stock available |
