Jade Carving Machine, High Quality Laser Carving Machine

                                       jade carving machine,high quality laser carving machine


Introduction:

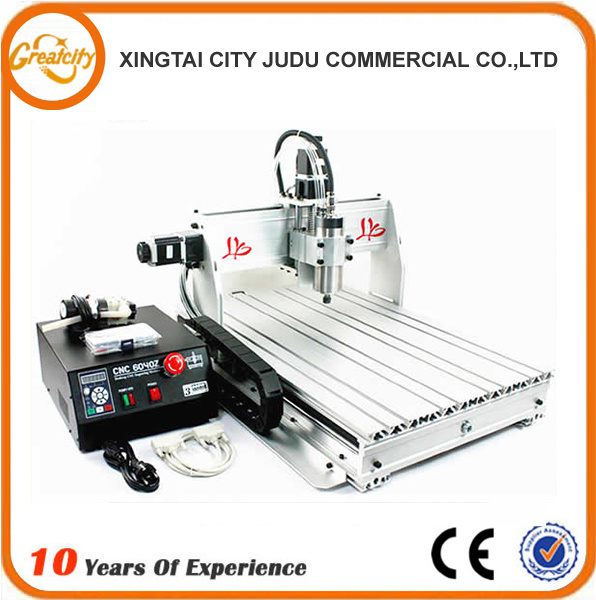

The CNC carving machine is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The 6040Z-S80 is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
In addition, it can be upgraded to be installed a rotational axis.

Technical parameters:


Machine Dimensions:	525X400X370mm
Rack material:	6061 and 6063 Hard aluminum alloy  (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	300X200mm
Z-Axis Stroke:	45mm, Engraving depth depends on the length of the tool edge)
Acceptable material thickness:	≤60mm
Rail type:	Chromeplate shaft+Linear Bearings,)(Surface hardening 61HRC)
Type of screw:	Ball screw,Pitch 4mm
Spindle motor:	230W/11000r/min((Very small noise))
Collet type:	ER11,1/8"(3.175mm) Collet
Stepper motor and drive:	two-phase hybrid stepping motor , 1.8A/PHASE,40N.cm, 8 segments drive.
Maximum operating speed:	4000mm/min (Engraving speed :300-3000mm/min)
Repeat positioning Accuracy:	0.04mm
Communication interface:	Parallel port (Must use the desktop computer, Does not support laptop)
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Machine weight:	22kg



Packing list:
1× Engraving machine
1× Control box
1× Parallel port cable 25pin
1× Power cable
1× Tool box and tools
3× Axis motors
1× tool auto-checking instrument
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

Package : standard wooden case or as your requirements .

Shipping way : Every  cnc carving machine   will be tested before sending out and you can choose the shipping way of by sea ,by air or by land .

How to use
1. cnc carving machine  on steady desk well.
2. Make sure that your computer has a on-board parallel port output.
3. Installing a CNC control software and Drive such as the MACH 3 or EMC on your computer.
4. Connecting the control box with the CNC machine and you computer.
5. Fllowing our manual or guideline to set uo the software.
6. You can enjoy making you dream with using our CNC machine now.
