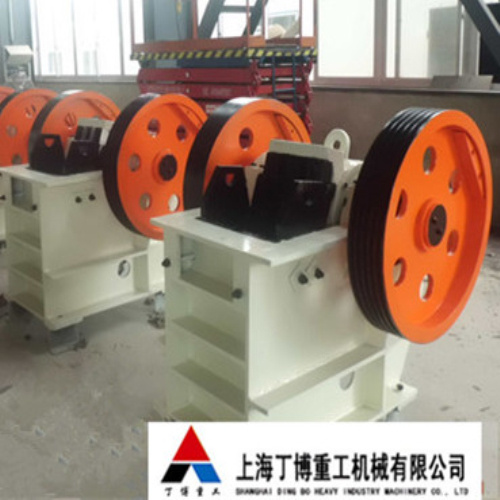

Jaw Crusher for Construsion Use
Price: |
US $ 800/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Product Specifications
Prod Model: |
PE series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity/(T/H): |
0.4-7.5 |
Input Size/mm: |
≤ 20 |
Finished Size/Um: |
5-47 |
Warranty: |
1 Year |
Object: |
Coal |
Tongs' Features: |
Adjustable Tongs |
Cutter Material: |
High-Speed Steel |
Principle: |
Cylinder Culling |
Quality: |
Good |
Efficiency: |
High |
Type: |
Jaw Crusher |
Application: |
Stone Industry |
Drive: |
Electric |
Compressive Strength (',For Crushing): |
250-300MPA |
Crushing Degree: |
Coarse Crusher |
Finished Surface: |
Cut Off Tool |
Crushing Style: |
Grinding and Impact |
Product Description
Jaw crusher is one of the most popular stone-crushing equipments in the world. It is ideally suitable for primary and secondary crushing processing machine selection. The highest anti-pressure strength of crushed material is 320MPA.
Based on many years' experience and technology development, Dingbo jaw crusher series are of 8 different types, which can meet most of the crushing requirements in primary and secondary crushing. Flexible discharge opening setting of jaw crusher allows perfect match with relative equipments. Dingbo jaw crushing machine is easy to install, operate and maintain. As each feedback, our experts will make continuous improvements on our products to meet customers' different needs. Primary Jaw Crusher is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc.
Working Principle:
This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Model | Feeding Opening Size (mm) | Max.Feeding Size(mm) | Adjustment Range of Discharging Opening (mm) | Capacity(t/h) | Power(kw) | Overall Drmension (mm) |
PEX-150×250 | 150×250 | 125 | 10-40 | 1-5 | 5.5 | 875×758×850 |
PEX-150×750 | 150×750 | 125 | 18-48 | 5-16 | 15 | 1200×1500×1200 |
PEX-250×400 | 400×250 | 210 | 25-80 | 15-30 | 22-30 | 1667×1545×1020 |
PEX-250×1000 | 1000×250 | 210 | 25-60 | 16-50 | 30-37 | 1530×1992×1380 |
PEX-250×1200 | 1200×250 | 210 | 25-60 | 20-60 | 37 | 1900×2192×1430 |
PEX-300×1300 | 1300×300 | 250 | 25-105 | 20-90 | 75 | 2720×1950×1600 |
