Product Specifications
| Prod Model: |
JBD2.5-SA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Jbd2.5-SA |
| Steel Meter Level: |
Class B |
| Nominal Flow Rate: |
1.6m³/H |
| Max Flow Rate: |
2.5m³/H |
| Min Flow Rate: |
0.016m³/H |
| Min Reading: |
0.0002m³ |
| Max Reading: |
99999.999m³(Steel Shell) |
| Working Temperature: |
-10~50 |
| Main Application: |
Corrosive Liquid/Gas |
Product Description
Product DescriptionGas Flow Meters are used to measure the rate of flow of fuel gases consumed for commercial, industrial or residential purposes. The measured volumes are highly affected by temperature and pressure. For long term service, we offer products for gas measurement solution to measure a defined volume, regardless of the pressurized quantity. IOTAFLOW Systems is dedicated to producing commercial meters. Our nation wide network of manufacturer's representatives are always at your service.
gas meter,gas flow,meter reading,gas energy, gas and electricity
Shell Material:
Steel Meter Level: Class B
Airproof: No leaking for 3 minutes under 1.5 times max working pressure
Nominal Flow Rate:1.6m³/h
Max Flow Rate: 2.5m³/h
Min Flow Rate: 0.016m³/h
Min Reading: 0.0002m³
Max Reading: 99999.999m³(Steel Shell)
IC Card Service Life: ≥100,000 Times
Alarm Way: Close Valve Alarm
Volume: 50m³/2 m³ Static
Working Current: ≤20μA
Working Temperature: -10ºC~50ºC
Working Temperature: 0.5~30KPa
Total Pressure Loss: ≤200Pa (Under Qmax)
Service Life: ≥10 Years
Product Feature
gas meter,gas flow,meter reading,gas energy,gas and electricity
Product Specification/Models
gas meter,gas flow,meter reading,gas energy,gas and electricity

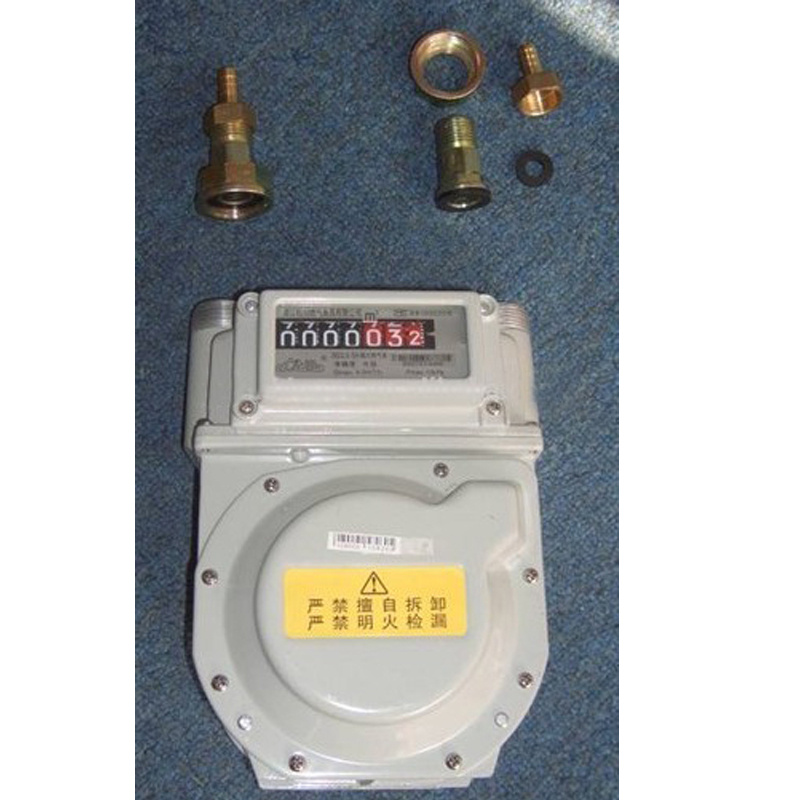

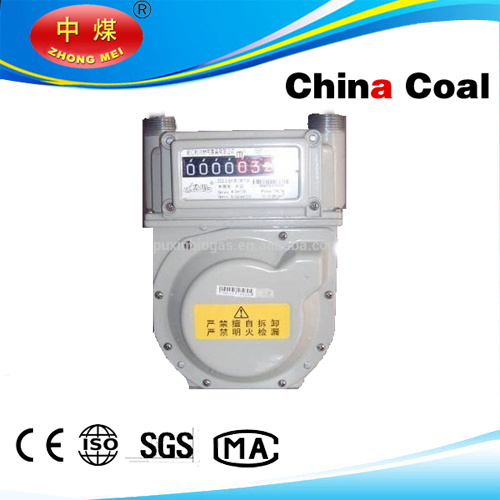

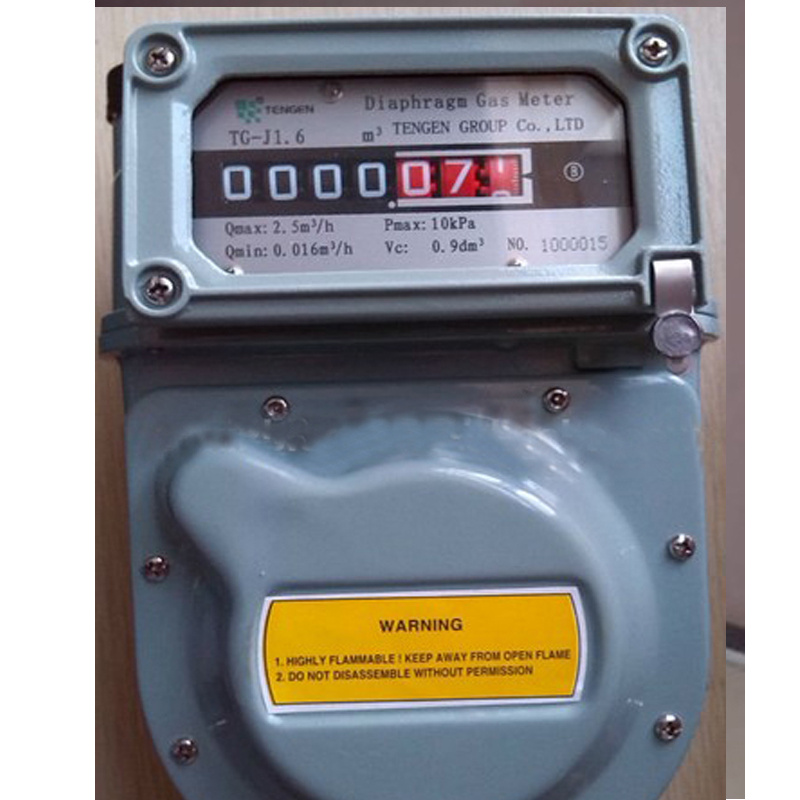

The shell of JBD1. 6 - SA. JBD2. 5: SA gas flow meter is made of aluminium alloy by casting. It has a good looking appearance,reasonable and compact inside structure. The design is excellent. The product is precise with small loss of pressure in measurement, and reliable.
Main Technical Parameters| Model | JBD2.5-SA |
| Accuracy | B level |
| Nominal flow rate Q | 2.5 m3/h |
| Maximum flow rate Qmax | 4 m3/h |
| Minimum flow rate Qmin | 0.025 m3/h |
| Maximum working pressure | 10 kpa |
| Basic difference limit | When Qmin≤Q≤0.1Qmin ≤±3%
When 0.1Qmax≤Q≤Qmax ≤±1.5% |
| Pressure loss | In Qmax, ≤200Pa |
| Air tightness | No leak under 10KPa |
| Long term performance | Fit the Durability Test B Level Standards GB/T696B-1997 |
| Work Temperature | -10- +40 °C ≤85%RB |
| Gas meter joint thread | M30x2 |
| Gas meter joint center distance | 130mm |
