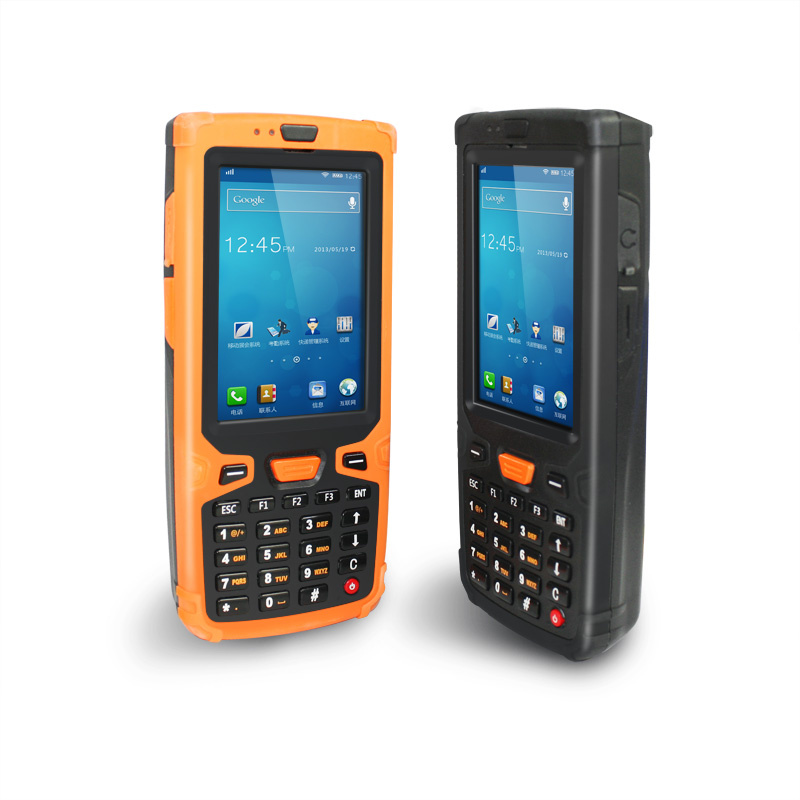

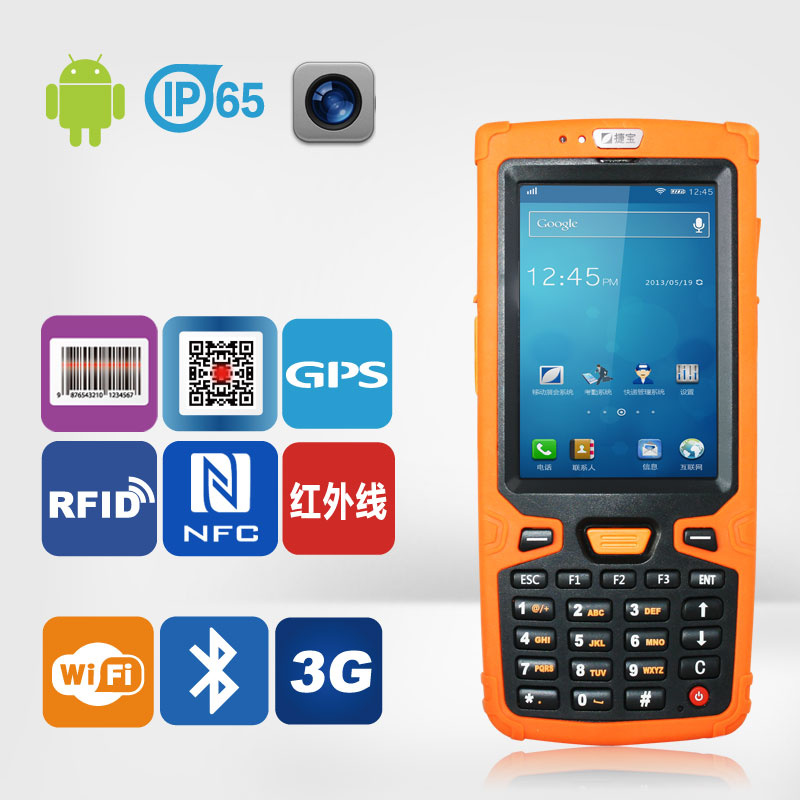

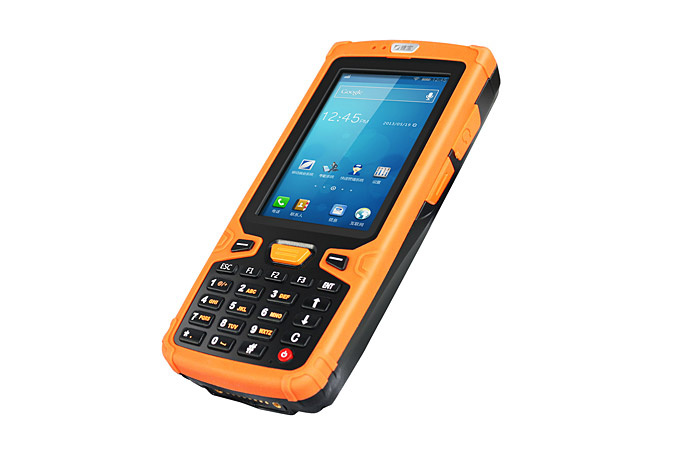

Jepower HT380A Android OS Hand Held Units (HHU)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
HT380A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Hand Held Units |
| Operating System: |
Android 4.2.2 |
| Communication: |
3G, GPS, RFID, Nfc/RFID, Infrared |
| Scanner: |
1d / 2D Barcode Scanner |
| Camera: |
8 Megapixels |
| Protection Grade: |
IP65 |
| Size: |
156mm(Length)*72mm(Width)*31mm(Thickness) |
| Weight: |
312g |
| Type: |
Handheld Computer |
| OS: |
Android |
| Memory Capacity: |
≥1GB |
| Applications: |
Industrial Grade PDA |
| CPU Type: |
Samsung |
| Classification: |
Bar-code Scanner |
| Screen Size: |
3.5inch |
| Internet Connection: |
Wi-Fi, GPRS, 3G |
Product Description
Top Quality Android Hand Held UnitsJepower HT380A Android PDA Hand Held Units support Wifi 3G GPRS NFC RFID GPS Bluetooth
First Android's Quad-core Hand Held Units in China, defined industry standard again! 5 almighty features, leading Quad-core era! CPU frequency up to 1.4GHz, powerful processing capabilities.
Your Best Choice of Android PDA Hand Held Units, Direct Deal from Factory.
HT380A is an IoT-based intelligent Android PDA with Barcode Reader independently developed, designed and manufactured by Jepower Technology based on Android4.2.2 operating platform.
Features
OS: Android 4.2.2
Industrial Protection: IP65
Screen: 3.5 inch
Scanning Engine: 1D/2D Supported
Product Superiority:
Strong Performance, Strong Endurance
Samsung Quad-core 1.4GHz processor, 1G DDR3 memory, Android 4.2.2 system, 4 times faster than traditional single-core products. Using high-capacity 4000mAh lithium polymer battery, standby time for more than 250 hours, sustainable using for more than 12 hours. And optional 6000mAh large-capacity lithium battery, has the incomparable endurance time.
Almighty Data Acquisition
Fast, accurate 1D or 2D barcode scanner, which can read all common barcodes on market; Support NFC or RFID, with infrared and 8 million pixel high-definition camera and other data acquisition modules.
Almighty Data Transmission
WiFi support Dual-band 2.4GHz and 5GHz IEEE 802.11A/b/g/n, PHY layer rates up to 150 Mbps. Equiped with high-speed 3G communication module and Bluetooth 4.0. Bottom with multi touch interface, support USB 2.0 cable for charging and data transfer, support RS232, RS485 and other data transmission.
Stable and Clear Conversation Quality
Using high-quality audio output module, stereo surround technology, loud speaker volume up to 90dB, with noise suppression microphone, suitable for using in noisy environments.
High Protection Grade, Rugged and Durable
IP65 protection grade, rugged design ensures that 6 surfaces are able to withstand drop from 1.5m height. With dustproof and waterproof features, easy to deal with all kinds of bad environments.
Basic Parameters |
CPU | Samsung Exynos4412 Quad-Core 1.4GHz |
OS | Android 4.2.2 |
Memory | Memory | RAM:DDR3 1GB
NandFlash:4GB |
Extended Memory | Micro SD(TF)32G at most |
Display | 3.5inch Multi-touch Capacitive IPS Screen, 320*480 |
Keyboard | 24 keys physical keyboard (including numeric keys, function keys and the power button), two custom features side-buttons |
Battery capacity | 4000mAh rechargeable polymer lithium battery (optional 6000mAh large-capacity polymer lithium battery) |
Dimension | 156mm(length)*72mm(width)*31mm(thickness) |
Weight | 312g (including 4000mAh battery) |
Camera | 8 Megapixels with Auto-Focus and Flashlight |
Expansion slot | Micro SD(TF)*1, SIM*1, PSAM*1 |
Indicator | Power Indicator*1 |
Accessories | USB 2.0*1, Multifunction contactless interface (supports USB, RS232, RS485 and other data transmission)*1 |
Audio | Speaker*1, Mic*1, Earphone*1 |
Phone features | Support for mobile HD voice calls |
Vibrating alert | Support |
Volume | Loud speaker volume up to 90dB, easy to deal with noisy environment |
Data Acquisition Parameters |
Symbologies | 1D barcode | Support:
Code 39, Codabar, Code 128, Discrete 2 of 5, Interleaved 2 of 5, Code 93, UPC-A, UPC-E, EAN-8, EAN-13, MSI, EAN-128, ISBN/ISSN, etc. |
2D barcode | Support:
PDF417, QR Code(QR1, QR2, Micro QR), Data Matrix, GS1-DataBarTM(RSS-Limited, RSS-14, RSS-14 Stacked, RSS-Expand), etc. |
NFC/RFID | Support ISO14443A/B, ISO15693, Mifare |
Wi-Fi | IEEE 802.11a/b/g/n, support 2.4GHz, 5.0GHz dual-frequency mode |
Bluetooth | Support bluetooth protocol version 4.0+EDR |
Satellite positioning | GPS/A-GPS, Beidou |
Infrared Communication | 38K infrared communication |
3G | WCDMA or EVDO(CDMA2000), Support calls, data transmission and SMS |
GPRS | Support data transmission |
Operating Environment |
Working temperature | -10°C ~ +50°C |
Storage temperature | -20°C ~ +70°C |
Relative humidity | 5%RH ~ 90%RH (no condensation) |
Protection Grade | IP65, 6 sides could undertake the impact by falling from 1.5m to the cement ground for may times within the scope of operating temperature |
Standard Parts | Charger *1, Rechargeable polymer lithium battery *1, USB Cable *1, Software Disc *1, Wrist rope *1 |
Guangzhou JIebao Electronic Technology Development Co. Ltd. which was established in 2001 and is located in Gao Tang Park, Guangzhou National Software Industry base, is a supplier and information service provider of smart terminal and solution for the internet of things industry.
JIebao has devoted to building and applying internet of things over the years. Relying on core intelligent technology and reliable products with perfect solutions, it has been rewarded "high and new tech enterprises", "software enterprise certificate" "ISO9001international quality management system certification enterprises", "CMMILevel 3 certification enterprises", "AAA level China Quality Credit Enterprise" and "the recommending enterprise selected for national power grid construction and reform". And its products are widely used in the internet of things industry such as smart power grid, smart business and smart logistics.
In the field of smart power grid, JIebao took the lead in boosting the intelligent development and application of Long-distance Meter Reading, Power Load Management Terminal, Transformer Terminal Unit, high/low voltage reactive compensation device, voltage monitor, and power routing inspection system device. It provides superior systematic solution for provincial administration of power supply in State Grid and China Southern Power Grid, serving as a pioneer in applying internet of things industry to smart power grid.
In the field of smart business, JIebao specializes in various smart terminals that integrate barcode technology and RFID, products such as cash register, financial POS, handheld terminal, electronic scale, scanner, bill printer, solutions and information service.
In the field of smart logistics, JIebao focuses on logistic management and sets up logistic digital management by intelligent technology, finally fulfills smart operation in all stages including storage, package, loading-unloading, route plan and risk control.
According to the national 12th 5-Year plan for the internet of things industry, in order to propel building smart city in different regions, JIebao promotes deep application of internet of things in various fields, among which smart power grid, smart business and smart logistics are the key area, and provides all-round technical support and solution, depending on the superior resource and project experience.
JIebao bears the mission of "enhancing efficiency by science and technology, producing profits by expertise" to meet the needs of society and industry, establish all-round industry application solution, promote the development of internet of things in society at large, and build a smart commercial society for better work and life.
Smart JIebao creates a world connected by things. JIebao devotes to promoting the technology of internet of things and makes contribution to the development of society informatization and intelligentization.
