Product Specifications
| Prod Model: |
JGW-1103CY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Note: |
Home Alarm System |
| FM Frequency: |
315/433/868MHz Optionally |
| P2p: |
P2p, Plug to Easyly Use |
| Image Pixel: |
30 '' Pixel |
| USB/TF: |
2.0 USB, TF Memery Card |
| GSM Frequency: |
450/800/1800/1900 MHz |
| Type: |
Home Alarm |
| Application: |
Indoor |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Sensor Type: |
Video Motion Alarm |
| Working Principle: |
Electro-Optical Type |
| Usage: |
Auto |
Product Description

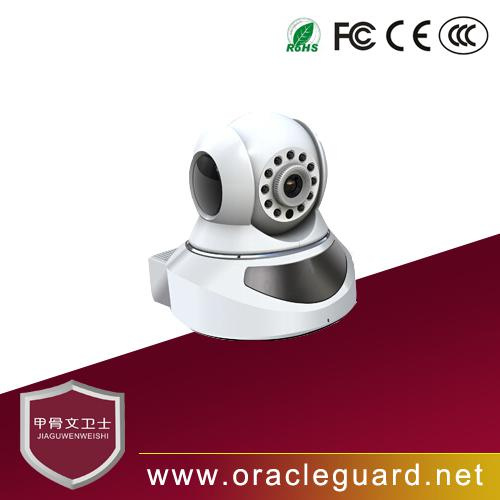

JGW-1103CY intelligent home automatically security device IP home alarm
Product Description
1: Free video calls: It can realize the video call not only between two cameras, but also among smart phone, tablet PC and camera. No need to pay any other communication charge.
2: P2P(Plug&Play): No need DDNS, No need Port Forwarding. Plug and Play.
3: Simple to setup: No need PC, All setup via the camera, friendly Gui.
4: Mobile Terminal Device: Supports Android, iOS Mobile Terminal(Phone, Tablet PC).
5: Display: Comes with 3.5 inch HD display, Support live video or Playback local video.
6: Two way audio: Built-in microphone and speakers. Compression: G. 711A, High quality audio.
8: High image&video quality: Video compression H. 264, CMOS 0.3 Megapixel.
9: Pan/Tilt: Supports remote Pan/Tilt control(Pan: 355 & Tilt: 90 )
10: Night Vision: Auto IR-LED illumination for night vision (up to 10 metres)
11: Local Storage: Support SD and U Disk video recording. (up to 64GB)
12: Alarm: Supports Motion detection, Phone push alarm, Email alarm. Whistle alarm.
13: Wireless: Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
Installation:
How to download a APP, how to handle it?
1. First: Pls enter ur IOS or Android store search "NVAS", down load it.
2. Then: Registered it with ur phone No. Or Mail add.
3. Add our test model as contactor, No. "12594" password: "123"
4. Send a remote monitoring video or remote experience the function.
How to code alarm accessories with this model?
1. Pls install the alarm system as the user manual.
2. Find code function on ur APP. Choose one defence zone.
3. Trigger the wireless alarm sensor at the same time.
4. After a sound "D~" the sensor had been code with the alarm host.
Company introduct:
Shenzhen Oracle Security Tech Co., Ltd is the pioneer of the professional security products manufactory, which integrates the developing and sales of burglar alarm & security equipment technology as a whole. With more years and enough experience in the alarm technology research and developing, we innovate many new technology and leading products of security. Intra-industry, we are the pioneer manufactory to develop the security products, like voice alarm products with LCD screen & touch screen; TCP/IP network alarm products, all of which can be well compatible with CID Ademco international networking protocol.
Why choose us:
1. Professional manufacturer in producing alarm systems & video surveillance, ect. For 15 years
2. Factory direct sales with competitive price but high quality
3. All the other accessories can be added optionally
4. Quick response
5. Remote Video to tell installation
6. Small MOQ
7. Strong OEM/ODM ability
8.10 minutes to airport
Our Advantage:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.
Welcome to visit our factory:
Looking forward to receive your inquiry and our nice cooperation in near future!
Pease contact us by following information:
Tel: +86-0755-27757254 Cell phone: +86-15817395430 Fax: +86-0755-27757585
|
Features & Functions: |
|
1,New generation-eRobot is a multifunctional product including video call function, remote monitor function, local recording function and wireless alarm function, which can satisfies your different needs; |
|
2,It introduces advanced Cloudlink P2P network transmission technology, so that it can switch bitrates intelligently and adapt to any network environment.; |
|
3,Built-in 3C smart card, it is so easy to realize remote monitor and video call; |
|
4,It introduces 3Dvoice sound engine technology, Professional Speech Processing ,which can thoroughly improve the quality of network sound call.; |
|
5,Eight Arming area, 64 groups can simultaneously access the alarm device (Infrared sensor, door sensor, smoke, remote control, etc.),More powerful, easier operation; |
|
6,It has intuitive and user-friendly operation interface, you can start it without training. |
|
7,It can support these two APP programs---IOS and Android, through APP program, you can care family anytime and anywhere. |
|
|
|
Technical parameter |
|
System |
Main processor |
High Performance Embedded Microprocessor Hi3507 |
|
|
Operating system |
Embedded Linux OS |
|
Video |
Image sensor |
30W pixels CMOS |
|
|
Video Compression Format |
H.264 |
|
|
Signal System |
PAL/NTSC |
|
|
Video Resolution |
VGA:640*480 |
|
|
Recording Speed |
VGA@ 25 fps or 30 fps |
|
|
Motion Detection |
YES |
|
|
Minimum illumination |
0LUX/F1.2 |
|
|
Video call |
YES |
|
|
IR |
YES |
|
|
Video output |
BT656/3.5 inch TFT LCD |
|
Audio |
Compression |
G.711A |
|
|
Audio Input |
Built-in microphone or an external headset |
|
|
Audio Output |
Built-in speakers or an external headset |
|
Recording Manager |
Recording Mode |
Manual/Timer/Motion / Schedule |
|
|
Video Storage |
USB,Micro SD |
|
Alarm |
Alarm Input |
Learning wireless sensor alarm input |
|
|
Alarm triggered |
Speakers alarm,Alarm recording,Capture,Email |
|
Others |
Ethernet Interface |
RJ45 100M / 1000M Base-TX |
|
|
USB |
1* USB 2.0 |
|
|
TF |
1*TF |
|
|
Wifi |
YES,802.11 b/g/n |
|
|
Headset |
One 3.5 headphone jack |
|
|
Power Supply |
DC 5V 2A |
|
|
PTZ Control |
Built-in horizontal and vertical control motor |
|
|
Power Consumption |
2W |
|
|
Working Temperature |
0°C-+55°C |
|
|
Working Humidity |
10%-90% |
|
|
Dimensions (mm) |
150*95*160mm |
|
|
Weight |
500g |
|
|
Installation |
Rack mount |
Shenzhen Oracle Security Technology Co., Ltd is the pioneer of the professional security products manufactory, which integrates the developing and sales of burglar alarm & security equipment technology as a whole. With more years and enough experience in the alarm technology research and developing, we innovate many new technology and leading products of security. Intra-industry, we are the pioneer manufactory to develop the security products, like voice alarm products with LCD screen & touch screen; TCP/IP network alarm products, all of which can be well compatible with CID Ademco international networking protocol.
Oracle, to be the birthplace of security Burglar Alarm in China, our factory pay high attention to the innovation research as well as quality control. All our products can pass the testing of National ministry of public security as well as CCC certification, Quality Management System-ISO certification, with the standard record and filing under the Technical Supervision Bureau Department of the State, CE certification of European Union, and FCC certification, etc for exporting. Our products are sold to more than 100 countries and regions in the world.
Nowadays, With the alarm products become an inseparable part of people's life, security market is becoming mature gradually, with increasing demand of market. Oracle will continuously explore and self-transcend in the field of product innovation and mass production of the factory. We will always adhere to "the attitude of honest credit & high efficiency". To meet people's different security requirements simultaneously, we also provide the customers with attractive&reasonable price with the excellent service.
We sincerely welcome domestic and overseas buyers, engineering project wholesaler, OEM&ODM partners to visit our factory, and are willing to work with you to create the cause of security.
