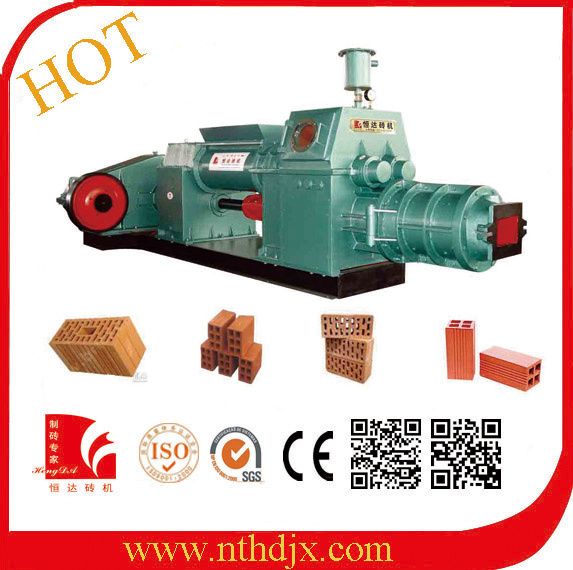

Jkr40/40-20 clay brick making machine/red brick plant
Description:
Brick vacuum extruder with reamer diameter 400/400 mm, max extrusion pressure 2.5mpa
JKR45/45-20 clay soil mud brick making machine/mud brick machineis mainly used in brick and tile factory to produce bricks and tiles and other clay products. It is also used to produceceramics. The processed pug is changed into the needed billets by the clay brickextruder through the following steps. It is mixed first, next treated by vacuum, then conveyed and squeezed by spiral reamer, finally extruded by a fixed shapedopening. The clay brick extruder has the reasonable structure and saves energyand is environment friendly.
The main components are reducer, pneumatic clutch, gear box, stirred tank, vacuum box, and mold. The body of jkr40/40-20 clay brick making machine is all made of welded steel plates.
Operation and precautions of JKR45/45-20 clay soil mud brick making machine/mud brick machinee:
1. The machine opening, core head, core rod should be replaced and adjusted in time. While they are abraded to some extent, the sizes of tile will be affected.
2. The wearing parts should be repaired and replaced when they are abraded after a period of use, or the product quality and output will decline, such as reamers, stirring blades and mud pressing board.
3. When you want to stop the clay brick extruder, stop feeding first, and then squeeze out the clay inside the machine, in order to avoid the overload at next startup. Don't reboot the machine if the air pressure is lower than 0.5mmpa. The
Friction plate is easily burnt if the air pressure is not enough.
4. The machine and all the bolts should be stopped and checked after six to eight hours' work for the first time to make sure if there is looseness. If yes, fasten them in time. If the clay brick extruder is stopped for more than one
Day, all the clay material should be squeezed and cleaned out, trying to avoid the damage by the dry clay.
Maintenance and repair:
Jkr40/40-20 clay brick making machine should be in good water lubrication condition so the machine is enabled to obtain the maximum efficiency and prolongthe service life. Spindle speed reducer is lubricated by an oil pump filled with n150 (GB/t3141)lubricating oil. The better refueling position is between the two scales of oildipstick. The other parts are lubricated by 3#extreme pressure lithium-basedgrease (GB7324-94). The filled lubricating oil has to be replaced after 300 to600 hours at the very start, and then it can be replaced after 1500 to 5000hours. The lubricating grease has to be filled regularly.
Parameters of jkr40/40-20 clay brick making machine:
Program units of measurements jkr40/40-20
Productivitystandardized bricks/h10000-13000
Extrusion pressurempa1.5-2.5
Vacuum degreempa≥ 0.092
Powerkw90-110
Weight of equipmentt10.5
Packaging and transportation:
Naked outfit and container transportation
Related productsjkr45/45-20 brick machine extruder
1. The machine opening, core head, core rod should be replaced and adjusted in time. While they are abraded to some extent, the sizes of tile will be affected.
2. The wearing parts should be...Jkr55/50-35 brick vacuum extruder jky50/50-35 brick vacuum extruder should be in good water lubrication condition so the machine is enabled to obtain the maximum efficiency and prolong the service life.
| Item | Unit of measurement | JKR40/40-20 |
| Production capacity | standard brick/hour | 10000-13000 |
| Maximum extrusion pressure | Mpa | 1.5-2.5 |
| Vacuum degree | Mpa | ≥0.092 |
| Power | KW | 75-90 |
| Weight | t | 10.5 |
| Overall size | mm | 4200×1380×1260 |
