Product Specifications
| Prod Model: |
JLY-800/630/500/400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description
Stranding machine
JLY Planetary Stranding Machine
1. Application:The machine is used for stranding flexible aluminum wires or copper wires with back-twist, or compacting and stranding the round or sector conductors. It also can strand the insulated cores and make steel armoring for powder cables.2. Main Compositions:2.1. Pay-off
2.2. Nonmetal taping device (delectable)2.3. Wire guiding stand
2.4. Metal taping device (selectable)2.5. Stranding cage
2.6. Length counter2.7. Closing die holder
2.8. Dual wheel capstan2.9. Mechanical transmission system (selectable)2.10. Electric control system2.11. Safety protection system2.12. Compacting device (selectable)2.13. Take-up3. Products:3.1. Based on different bobbin size in stranding cage: PND400, PND500, PND630, PND8003.2. Based on different cores of stranding cable: 1+6+12+18+24(61B), 12+18+24(54B), 1+6+12+18(37B), 12+18(30B), 8+16(24B), 1+6+12(19B), 1+8(9B), 1+6(7B)3.3. Based on different transmission: separate motor transmission, ground shaft transmission.3.4. Based on different type back-twist: gear type back-twist, back-twist ring type.3.5. Based on different pay-off tension control: initiative pay-off pressure sensor automatic feedback type tension control, magnetic powder brake type tension control, Mechanical automatic feedback type tension control, fixed tension mechanical friction type tension control.3.6. Based on different central pay-off: shaft-less type, shaft type and manual type in structure; Φ1250, Φ1600, Φ2000, Φ2500, Φ3150, Φ3500 in bobbin size3.7. Based on different capstan dia.: Φ1500, Φ1600, Φ20003.8. Based on different control of main motor: DC speed regulation, AC frequency conversion speed regulation, electromagnetic speed regulation.
| Model | JLY-800 | JLY-630 | JLY-500 | JLY-400 |
| Single wire dia. | Copper | Φ1.5-Φ5mm | Φ1.5-Φ5mm | Φ1.5-Φ5mm | Φ1.5-Φ5mm |
| Aluminum | Φ1.8-Φ5mm | Φ1.8-Φ5mm | Φ1.8-Φ5mm | Φ1.8-Φ5mm |
| Steel | Φ2-Φ6mm | Φ2-Φ6mm | Φ1.8-Φ5mm | Φ1.5-Φ4mm |
| Insulated cores | Φ2-Φ10mm | Φ2-Φ10mm | Φ2-Φ8mm | Φ2-Φ6mm |
| Max. rotating speed of cage | 6B | 60rpm | 85rpm | 110rpm | 130rpm |
| 12B | 50rpm | 75rpm | 95rpm | 110rpm |
| 18B | 45rpm | 65rpm | 85rpm | 95rpm |
| 24B | 40rpm | 55rpm | 70rpm | 90rpm |
| Max. producing line speed | 40m/min | 40m/min | 50m/min | 50m/min |
| Max. stranding dia. | Φ45mm | Φ45mm | Φ45mm | Φ45mm |
4. Our company:Yangtze Precision Machinery & Technology Co.,Ltd. is a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China. Our main products consist of three main series, drawing machine, stranding machine and laying up machine include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying up machine, laying-up stranding machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, extruder, optical fiber cable SZ stranding line, optical fiber sheath production line and relevant auxiliary equipment.
That's our connected informations:Yangtze Precision Machinery & Technology Co.,Ltd. Changjiang Jinggong Industrial Park, Lu'an Economic Development Zone, Anhui, China 237161 Tel:+86-564-3634-718 Fax:+86-564-3634-717 www.ahcjcm.com
Anhui Changjiang Jinggong Wire & Cable Machinery Co., Ltd. is a subsidiary of Jinggong Holding Group with registered capital of 40 million yuan and total investment 150 million yuan. With continuous development and extensive experience, it becomes a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China.

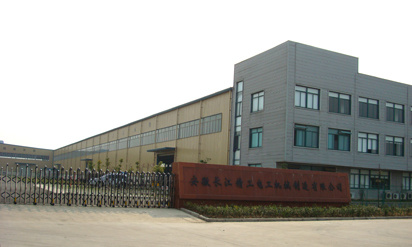

Our factory is located at Changjiang Jinggong Industry Park, Lu' An Economic Development Zone. The modern plant covers an area of 48, 000 square meters, equipped with large scale processing machine and a complete range of test equipment. Our company is a member of China Electrical Equipment Industrial Association and Shanghai Wire and Cable Industry Association. We have established the Quality Management System (QMS) with ISO9000 standard and achieved SGS certification of golden supplier on Made-in-China. Three main series, over 40 kinds of products have acquired CE marking for Europe market.
Our feature products include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying-up machine, planetary core laying-up machine, armoring machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, trolley wire drawing machine, extruder and relevant auxiliary equipment.
Technology To Further Our ' People First' Philosophy. By offering the customers full technical support, and services including commissioning, training of personnel, one year warranty and continuous spare part supply, we always aim to provide our global customers top quality products and service.
