Product Specifications
| Prod Model: |
Arduino |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compatible With Arduino Uno\Duemilanove: |
2 Axis Thumb Joystick with Push on Joystick Button |
| Joystick Button And Four 12mm Momentary: |
Built-in Reset Button |
Product Description

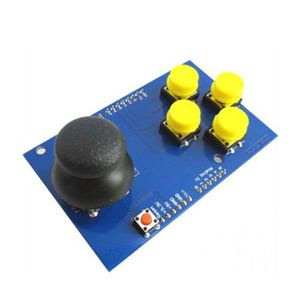

The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers. Soldering is not required, and because this is already fully assembled item, so you can use it derectly!
The momentary push buttons are connected to Arduino digital pins 2-6; When pressed they will pull the pin low (utilizing the internal pull-UPS of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.
Features:
1, Compatible with Arduino UNO, Duemilanove and Arduino MEGA (No additonal arduino shield or wires required)
2, 2 axis thumb joystick with push on joystick button(analog pin 0 controls vertical movement & analog pin 1 controls horizontal movement)
3, Joystick button and four 12mm momentary push button connect to digital pin 2-6(digital pin 2-6 will pull low when pressed the button)
4, built-in RESET button
