Product Specifications
Prod Model: |
JPS420-5c-B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Jps420-5c-B |
Printing Speed (M/Min): |
60 |
Printing Color (Colors): |
5 |
Max. Paper Width (Mm): |
430 |
Max. Printing Width (Mm): |
420 |
Max. Unwinding Diameter (Mm): |
600 |
Max. Rewinding Diameter (Mm): |
600 |
Printing Perimeter (Mm): |
175-380 |
Registration Accuracy(Mm): |
+/-0.1 |
Cerification: |
CE |
Type: |
Ink Jet Type |
Structure: |
Rotary Printing Press |
Style: |
Flexographic Printing Presses |
Color & Page: |
Multi-Colour Printing Press |
System Supported: |
Other |
Print Interface: |
Other |
Product Description

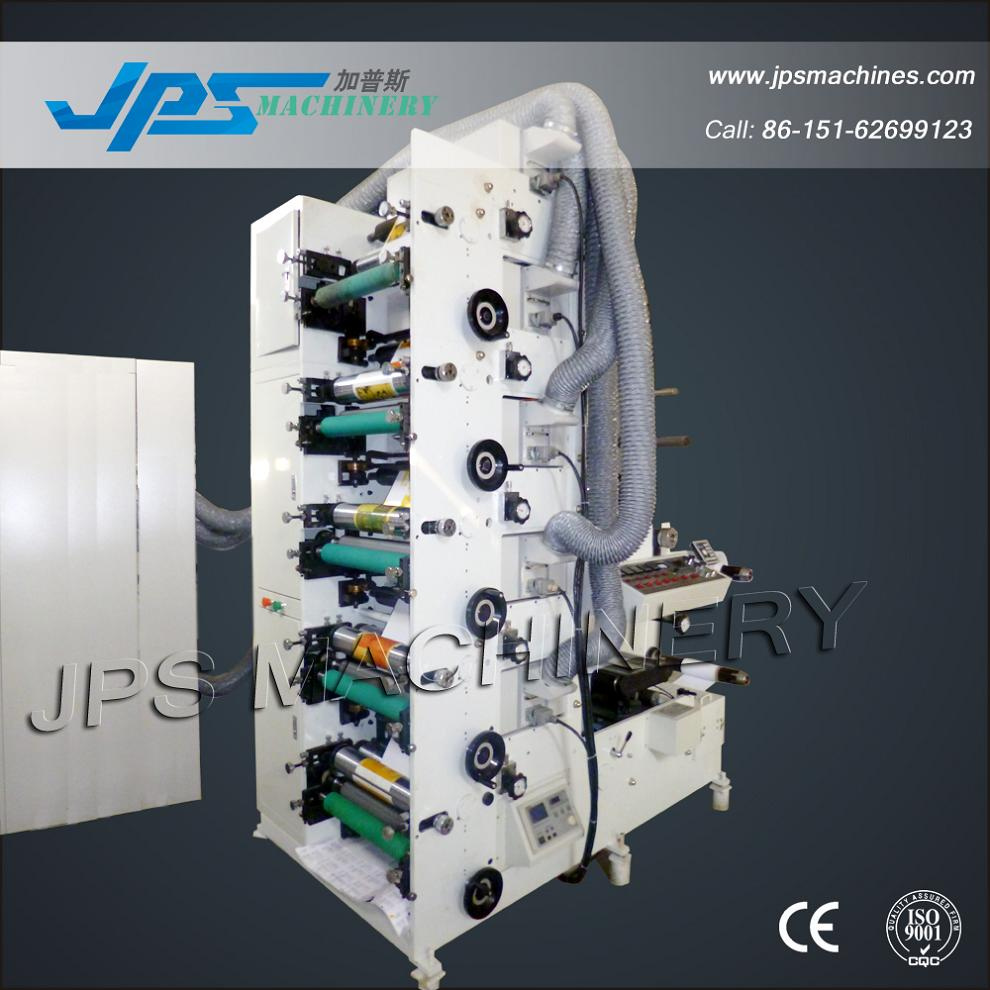

JPS420-5C-B 420mm Width 5 Colour Roll Self-adhesive Sticker Label Printing Machinery
Main Technical Parameter:
Specification | JPS420-5C-B |
Printing speed (m/min) | 60 |
Printing color (colors) | 5 |
Max. paper width (mm) | 430 |
Max. printing width (mm) | 420 |
Max. Unwinding diameter (mm) | 600 |
Max. rewinding diameter (mm) | 600 |
Printing perimeter (mm) | 175-380 |
Registration accuracy(mm) | ±0.1 |
Voltage (v) | 380±10% |
Total power | 18.5kw |
Weight of machine (kg) | 3600/3400 |
Dimension (mm) | 2800*1240*3300 |
Characteristic:
1. Adopt the ceramic anilox roller to spread ink.
2. Unwinding and rewinding are controlled by magnetism power brake, clutch. (or by automatic tension controller of Mitsubishi , made in Japan).
3. Printing unit adopt 360º for registration.
4. Printing unit have one infrared to dry the device group each.
5. The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process
8.This kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
Standard Configurations
Standard configurations | Option |
5×ceramic anilox roller | AC contactor | Corona treatment |
10×printing roller | Variable frequency | Plate mounting |
Magnetic powder brake | Push button | Video system |
Magnetic particle clutch | Control panel | Web guide |
1×Unwinding tension controller | Hall switch | Lamination unit |
1×Rewinding tension controller | Main motor | Rotary die cutting unit |
5×Infrared dryer | 2×shaft | Dividing cutting device |
5×ink roller | | UV dryer |
Breaker | A lamination station | Cold foil |
Temperature control | A rotary die cutting station | |
Optional configuration:
1. web guiding
2. plate mounting with microcomputer display screen
3. computer monitor
4. turn bar
5. slitting station
6. rotary die cutting station
7. laminating
8. UV dryer
9. Corona treatment
10. Cold foil
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
