Specifications

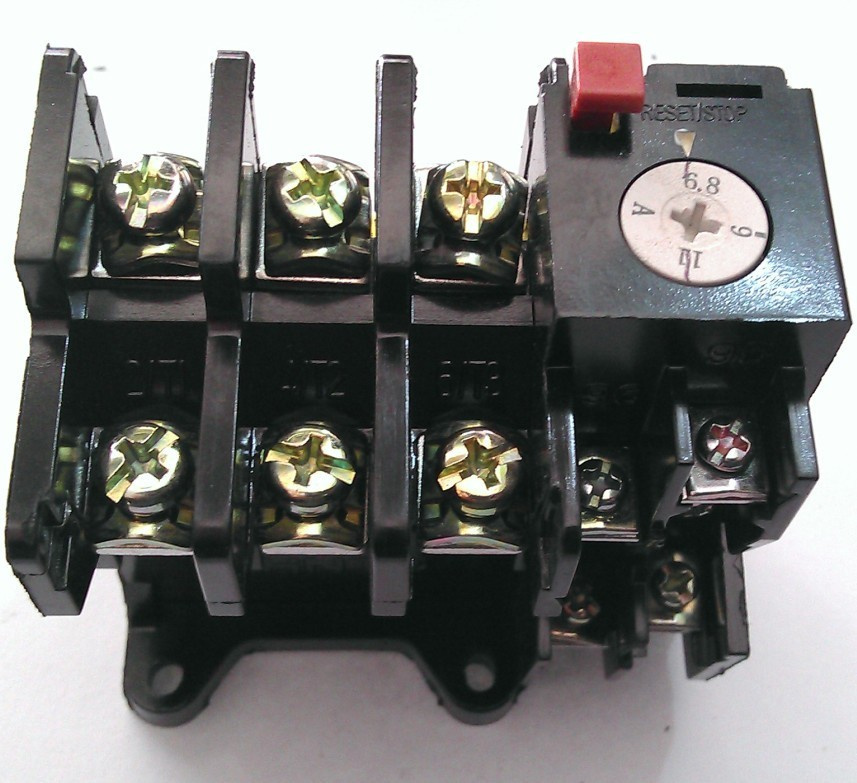

1.JR36-20 thermal relay
2.rated current: 20A
3.Setting Current: 1.5-22A
Introduction
JR36 series thermal relay is suitable for AC 50Hz or 60Hz, main circuit rated voltage up to 660V, current up to 160A, used as protecting AC three-phase motor against overload, and has the functions of breaking phase protection, temperture compensation. It can automatically and manually reset.
Specifications:
1.JR36-20 20A contactor relay thermal relay rated current: 20A Setting Current: 1.5-22A
2.JR36-20 20A contactor relay thermal relay
3.rated current: 20A
4.Setting Current: 1.5-22A
Parameter List
| No | Times of the setting current | Motion time | Start condition | Ambient temperature |
| 1 | 1.05 | >2h | Cold state | 20±5oC |
| 2 | 1.2 | <2h | Heat state(Following the No.1 test) |
| 3 | 1.5 | <4min |
| 4 | 7.2 | 10A | 2s< Tp≤10s | ≤63A | Cold state |
| 10 | 4s< Tp≤10s | >63A |
3. Phase-losing Motion Characteristic
| No | Times of the setting current | Motion time | Start condition | Ambienttemperature |
| Any two phases | Another phase |
| 1 | 1.0 | 0.9 | >2h | Cold state | 20±5oC |
| 2 | 1.15 | 0 | <2h | Heat state(Following the No.1 test) |
Model List
| Type | JR36-20 | JR36-32 | JR36-63 | JR36-160 |
| Setting Range(A) | 0.25~0.35 | 10~16 | 14~22 | 40~63 |
| 0.32~0.5 | 14~22 | 20~32 | 53~85 |
| 0.45~0.72 | 20~32 | 28~45 | 75~120 |
0.68~1.1 1~1.6 1.5~2.4 2.2~3.5 3.2~5 4.5~7.2 6.8~11 10~16 14~22 |
| 40~63 | 100~160 |
