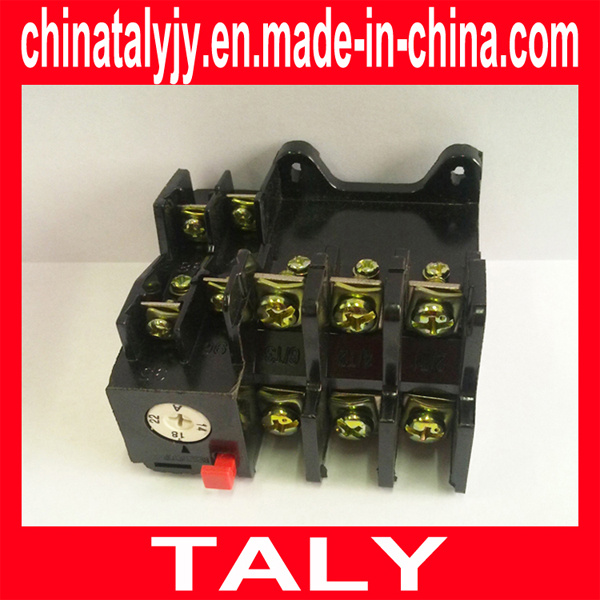

JR36B Thermal Overload Relay
Scope of the application:
JR36B series thermal overload relay is suitable for AC 50Hz or 60Hz, rated working voltage 660V
In main circuit, in the power system current up to 0.25-630A and for AC motor overload and phase-failure protection.
Structural features:
The full range of products have overload and phase failure protection and can adjust the setting current. Under the air temperature range of -5 degrees Celsius to 55
Degrees Celsius has the function of temperature compensation, and has the disconnect the normally closed contacts of the test button.
Working condition:
1. The ambient air temperature is up to 40 degrees Celsius
2. The lower limit is -5 degrees Celsius. Within 24 hours, the average does not exceed 35 degrees Celsius.
3. The altitude of the installation sites do not exceed 2000m.
4. Installing as the normal working position.
5. The tilt with the vertical is not more than 5 degrees.
Main technical parameters:
Rated isolating voltage is 660V
Rated working current: 20, 32, 63, 160, 250, 400, 630A
Rated setting current and the rated setting current of thermoelements as follows:
Operating characteristic curve:
Shape and installation dimension:
