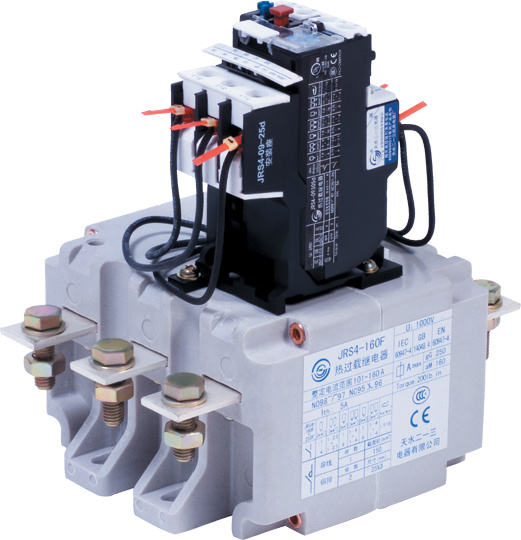

JRS4-F Range Thermal Overload Relay

Name: JRS4-F Range Thermal Overload Relay
Brand: china-manufacturer-directory.com
SKU: 672508395
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	Negotiable
Trade Terms:	Shanghai Port
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	JRS4-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

JRS4-F range thermal overload relay is used in AC 50/60Hz, rated current 101A-500A in circuit, for protecting AC motor against overload or phase-breaking. Main for constructionmechanical metallurgical and other industries, protect motor against potential overload and phase-breaking.

type	current adjust range RC (A)	control power (AC-3)50/60Hz							fuse for short-circuit protection (A)		can be combined with the following AC contactor
type	current adjust range RC (A)	220V KW	280V KW	415V KW	440V KW	500V KW	660V KW	1000V KW	a M	g G
JRS4-160F	101-160	33 45	63 80	63 80	75 90	90 100	129 140	150 160	160	250	CJX4-115~185F
JRS4-250F	158-250	59 63	100 110	110 129	129 140	132 160	180 200	160 250	250	400	CJX4-150~265F
JRS4-330F	206-330	75 80	129 150	132 160	147 160	185 200	220 257	330 400	330	500	CJX4-225~330F
JRS4-400F	250-400	90 110	160 185	180 200	180 220	220 257	280 335	400 485	400	630	CJX4-265~400F
JRS4-500F	320-500	129 140	200 250	220 257	250 280	295 315	375 445	526 600	500	800	CJX4-330~500F

Tianshui 213 Electrical Apparatus Co., Ltd. is one of leading manufactures in Control Devices, Distributing Devices and Compelete Equipments in China. Main products cover AC contactor, DC contactor, thermal overload relay, electronic overload relay, contactor relay, pneumatic time-delay, MCB, MCCB, ACB.

We have 1300 employees, of whom 420 are technicains. We can supply 5 million pieces of high quality low-voltage apparatus devices and 20000 complete sets equipments per year. We are the supplier of Emerson and Tyco Electrionic. Our products export Europe, Russia, Vietnam, India. Our enterprice and products has been approved by ISO9001, ISO14001, OSHAS 18001; IEC, CCC, CE, UL, TUV and RoHS respectively. "Tianshui 213" awarded as China Well-know Trademark and also win a good reputaion from our customers around the world.
