Product Specifications
| Prod Model: |
JRX-A4-4(pocket)Cut Size |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Paper Width: |
Gross Width 890mm, Net Width 840mm |
| Cutting Numbers: |
4 Cutting-A4 210mm (Width) |
| Paper Roll's Diameter: |
Max.1200mm. Min.600mm |
| Output Of The Ream: |
12reams/Min |
| Classification: |
Flat Knife Cutter |
| Driven Type: |
Electric |
| Blade Material: |
Stainless Steel |
| Computerized: |
Computerized |
| Type: |
A4 A3 |
Product Description

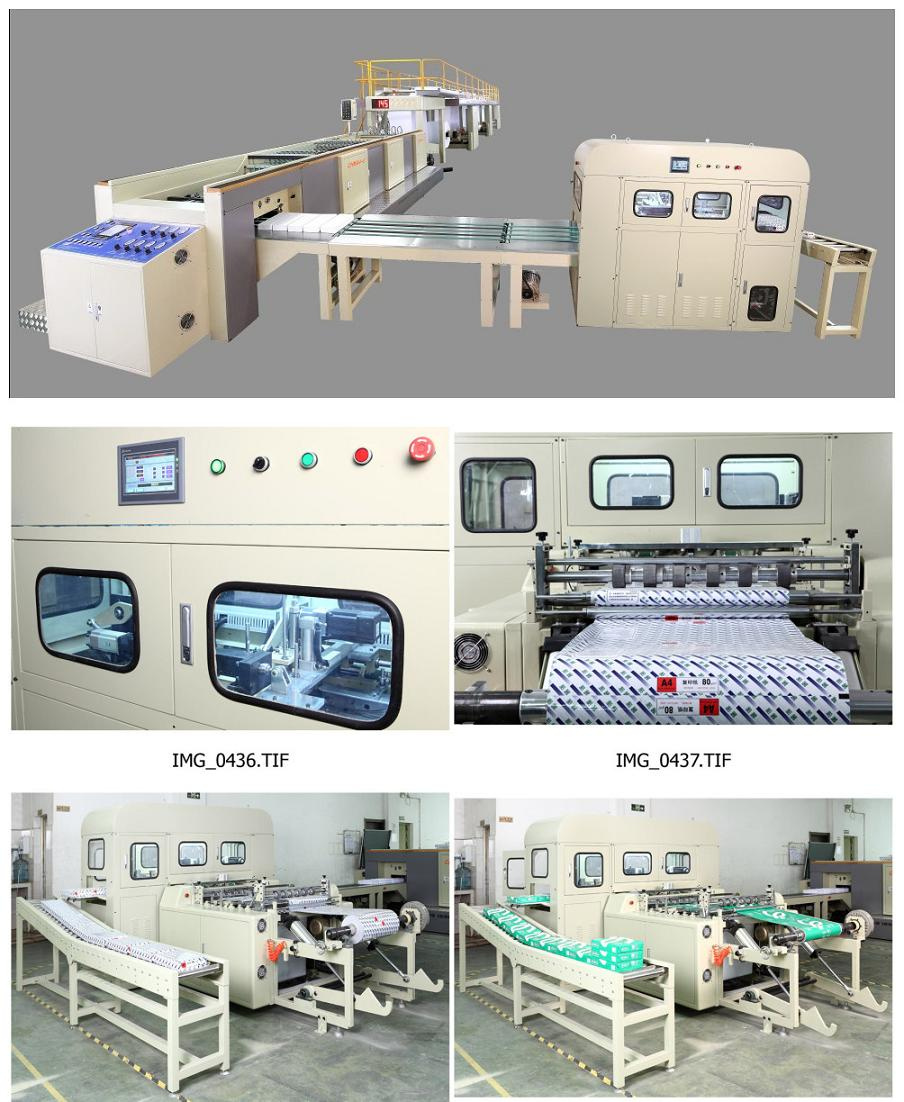

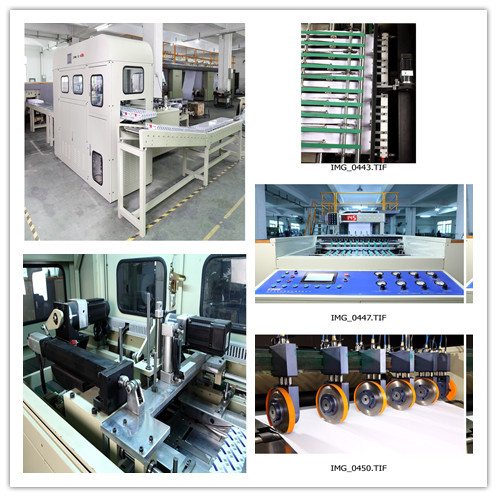

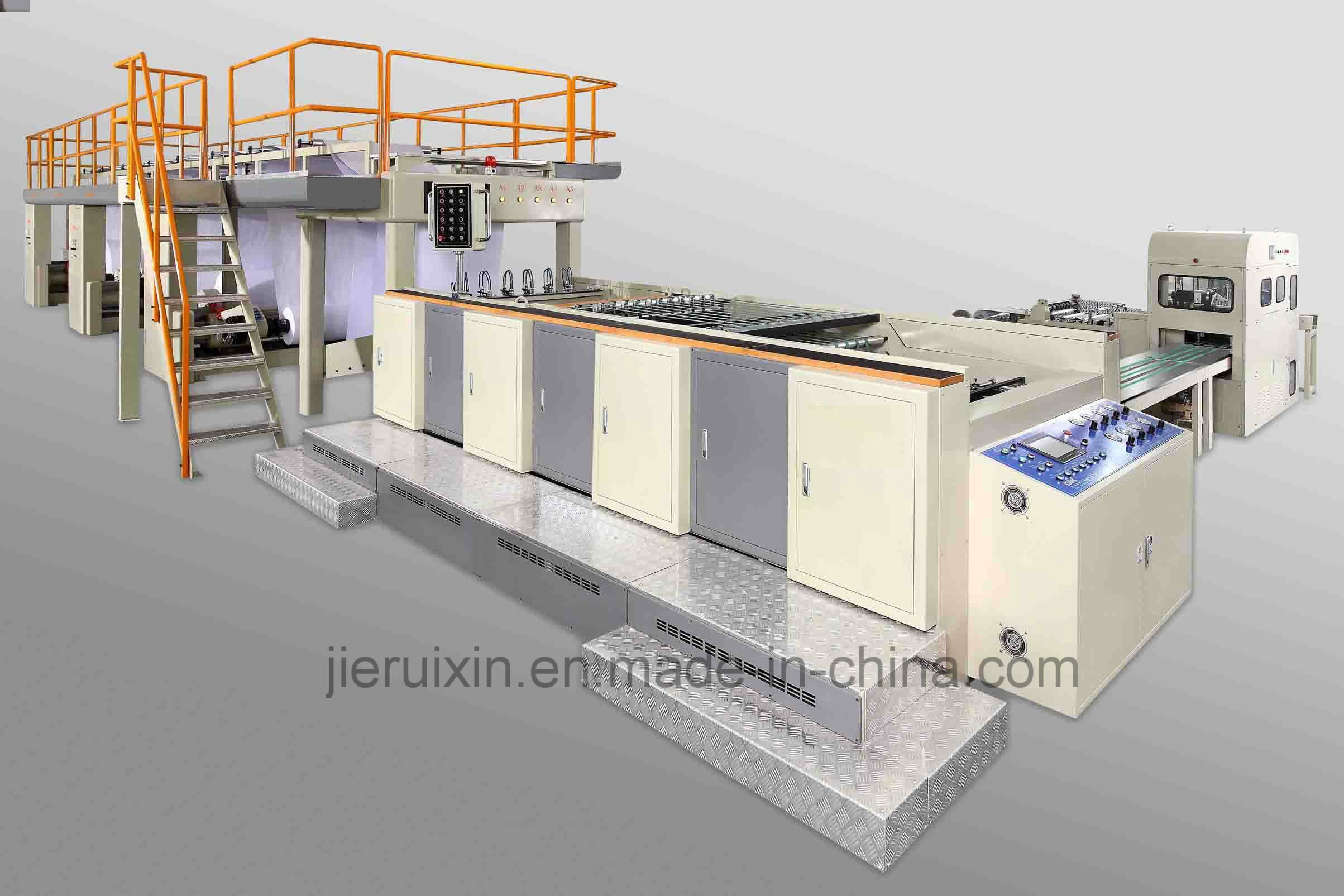

JRX-A4-4(pocket)Cut Size Sheeting And Wrapping Machine
SIZE: JRX-A4-4 And JRX-A4B-30
Technics of Equipment:
As technics of our machine, we hereby describe the related functions and work flow for paper products: unwinding→ cutting → conveying → collecting → Packaging.
A. JRX-A4-4(pocket) Cut Size Sheeting Machine
A.1. Main Technical Parameter | Paper Width : | Gross width 890mm, net width 840mm |
| Cutting numbers : | 4 cutting-A4 210mm (width) |
| Paper roll's diameter : | Max.1200mm. Min.600mm |
| Paper core's diameter : | 3"(76.2mm)or 6"(152.4mm) or according to the clients' demand |
| Packing Paper grade : | High-grade copy paper; High-grade office paper; High grade Free Wood |
| Paper weight : | 60-100g/m2 |
| Sheet length : | 297mm ( specially design for A4 paper, the cutting length is 297mm) |
| Ream amount : | 500 sheets Max. Height: 65mm |
| Production speed : | Max 0-120m/min(depends on different paper quality) |
| Max. Numbers of cutting : | 404/min |
| Output of the ream : | 12reams/min |
| Load of cutting : | 400g/m2 (4×100g/m2) |
| Cutting accuracy : | ±0.2mm |
| Cutting condition : | No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
| Main power supply : | 3*380V /50HZ |
| Air consumption : | 300NL/min |
| Air pressure : | 6 bar |
| Edge cutting : | 2×10mm |
| Safety standard : | Design according the safety standard of China |
