Product Specifications
| Prod Model: |
JS-557 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Beijing, China (Mainland) |
| Color Option: |
Silver / Black/Golden |
| Panel Dimension: |
193*150mm |
| Cutout Dimesion: |
183*140mm |
| Panel Material: |
Aluminum Magnesium Alloy |
| Box Material: |
Steel |
| Type: |
Hidden Table Socket |
| Rated Voltage: |
100~240V |
| Frequency: |
50/60Hz |
| Grounding: |
Standard Grounding |
| Housing Material: |
Stainless Steel |
| Application: |
Residential/General-Purpose |
| Installation: |
Table |
| Certification: |
ISO: 9001 |
| Customized: |
Customized |
| Condition: |
New |
Product Description

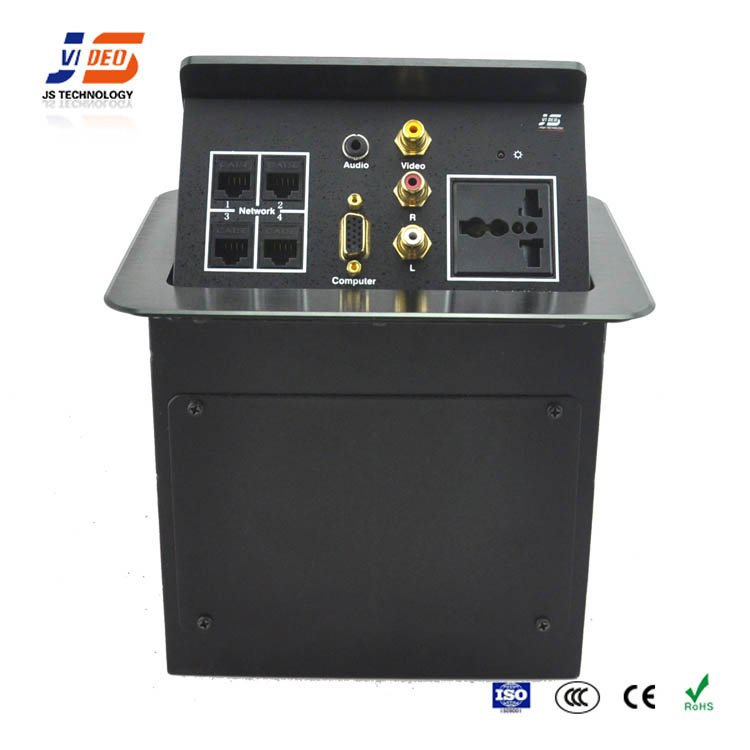

JS-557+ multifunction socket outlet with 4* RJ45+VGA+audio& video
JS-557+ interconnect box provides inconspicuous access for one three-pin power supply, four network (or rj11), one VGA and, one 3.5mm audio, one set of audio& video
The interconnect box is a compact interconnect solution designed for installation into a table as part of a presentation system. It can be mounted into a table, podium and stage to provide a way to connecting audio visual equipment on top of furniture to a presentation system under the furniture.
Open and close:
Press down on the centre of the lid until the latch audibly engages. Release and the lid will be closed.
JS-557+ main Specification |
Ports |
1x 3 pin AC power Female-IEC plug |
4x RJ45 F-F |
1x 15pin HD VGA F-F |
1x 3.5mm audio F-Terminal block |
1x Composite Video F-F |
1x Audio left channel F-F |
1x Audio right channel F-F |
|
Weight |
N.W.: 2kg, G.W.: 2.4 kg |
Panel size |
193x150 mm, R=16.5mm |
Cutout size |
183x140mm, R=12mm |
Table thickness |
≤60mm |
Operating Temperature |
0~40 °C |
Warranty |
1 year |
Certificate |
CE, RoHS, CCC |
Our Services
1. On the basis of graranteeing the product quality, to get your order finishied as fast as possible.
2. Keep you updated on your order status.
3. Tracking number would be provided to you once your order is sent.
4. Any questions or complaints from you would have answers within 24 hours.
5. We accept and will be kind and patient to process any questions, any confusions and any complaints from you.
Company Information
Beijing JS Technology Co., Ltd. was founded in 2003 as a high-tech modern enterprise engaged in the research and development, production, sale and service of retractable terminal boxes, VGA and RGB cables, AV switches, long-distance transmission systems and other products used in conference rooms, training centers and command halls.
Beijing JS Technology Co., Ltd. Was founded in 2003 as a high-tech modern enterprise engaged in the research and development, production, sale and service of retractable terminal boxes, VGA and RGB cables, AV switches, long-distance transmission systems and other products used in conference rooms, training centers and command halls.
Taking "Specialized, Advanced, Stronger" as our main principle, we ensure strong R&D, high production standards and high quality services. Providing professional products with competitive prices and creative solutions, our systems are now applied by users in the military, transportation, telecommunication, government, electrical power, public security, education, energy and other fields.
In the increasingly competitive market, JS Technology regards high product quality and perfect services as the basis of our enterprise. We realize that doing a good job firstly entails being an honest person, so thereby follow the tenet of "A promise is a promise". Developing new marketing channels and enlarging our market share, we strive to generate potential business opportunities and strengthen our relationships with partners.
Providing clients with advanced technology and high quality products, we maintain our position at the forefront of the industry through the spirit of "Creative development and pragmatic advancing". Employing talented people and boasting mature market channels, we have a well deserved reputation for excellence.
JS people are committed to working with both business partners and customers to establish close cooperation, move into new fields of science and technology, and produce an even broader space for working together.
