Product Specifications
| Prod Model: |
JTJ-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Production Capacity: |
12500PCS/H |
| Suitable Capsule Numbers: |
0#~4# |
| Power: |
2.21kw 380V 50Hz |
| Weight: |
330kg |
| Overall Dimension: |
1290*685*1600 |
| Type: |
Weighing-type Filling Machine |
| Automatic Grade: |
Semi-Automatic |
| Material Type: |
Powder |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Dosing Device: |
Plunger |
| Filling Principle: |
Vacuum |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Capsule |
Product Description

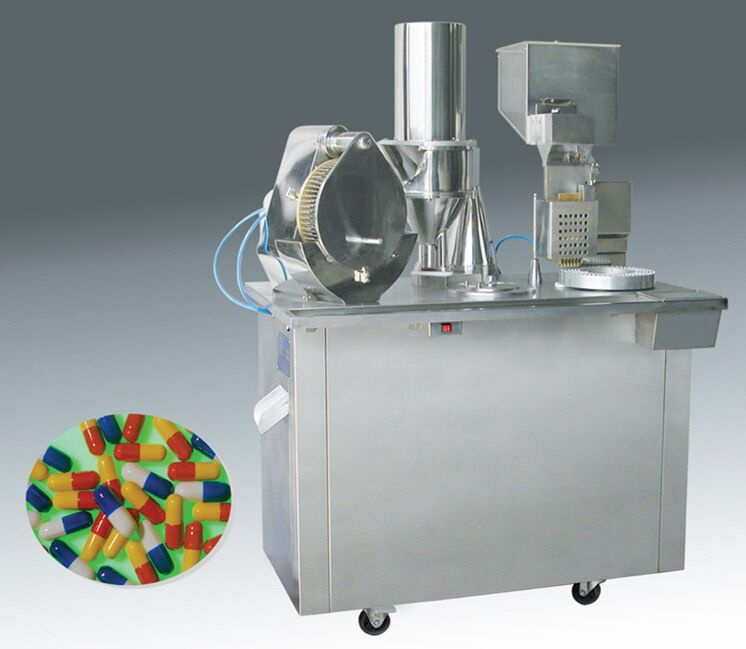

JTJ-A SEMI-AUTOMATIC
CAPSULE FILLING MACHINE
General Description
The machine is a new type of medicine packing machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with an automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and up to sanitary standards for pharmaceutics.
Main Technical Data:
l Max.Production Capacity: 20000pcs/Hr
l Suitable capsule numbers: 0# ~ 4#
l Power: 2.21 kw, 380V, 50Hz
l Weight: 330 Kg
l Overall Dimension: 1290*685*1600 (mm)
The machine consists of capsule feeding, turning and separating mechanism, material medicine filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system, protection device as well as accessories such as vacuum pump and air pump.
China machine made capsules or the imported capsules are both applicable to this machine, with which the finished product qualification rate can be above 97%.
We are professional pharmaceutical machinery manufacturer and exporter in China. Our main products are tablet press, blister packing machine, bag packing machine, colloid mill, mixer, capsule filling machine, coater, dryer, granulator, labeling machine and etc. All tasks from casting to metal machining, and general assembly are accomplished by itself. ZP-37 tablet press, DPP25 Blister Packing Machine and Fully Automatic Bottling and Packing line and so on all meet with GMP standard, which are on behalf of tablet press product developing direction and win the certificates for Shanghai excellent science technology products.
With wonderful reputation, our products have been sold through out China and have exported to many foreign countries and regions around the world such as Australia, USA, Canada, Malysia, Bulgaria, Russia and etc.
Welcome to contact us, all enquiries from all customers both at home and abroad will be highly appreciated by us and we are sure that you will get a satisfactory answer once we get your enquiry.
