Jw3116 Handheld Optcial Light Source

Product Specifications

Prod Model:	JW3116
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelengths(Nm):	1310/1550;1310/1490/1550/1625
Output Power(dBm):	-5~-12(Adjustable)
Modulation(Hz):	Cw,270,330,1k,2k
Optical Connector Type:	FC/PC
Dimension(Mm):	180*90*45
Weight(G):	250
Applicable Fiber:	Sm,Mm
Warranty:	18 Months
Certification:	ISO
Condition:	New

Product Description

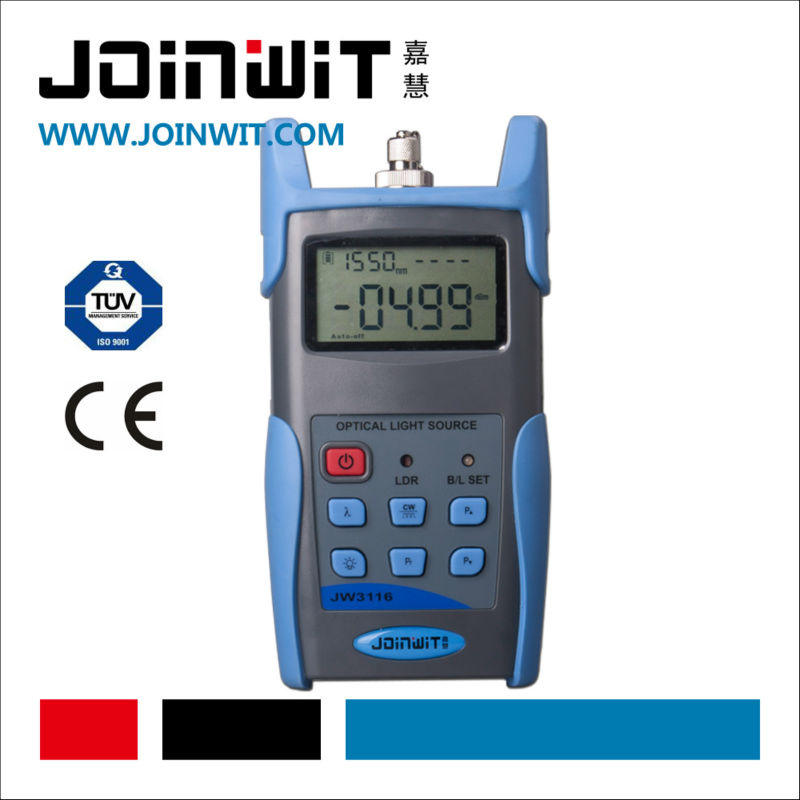

JW3116 Optical Light Source

JW3116 Handheld Adjustable Light Source is Joinwit newly designed fiber optic tester, it aims at fiber
network installation, fiber network engineering acceptance and fiber network maintenance.
Combined usage with JW3216 handheld optical power meter, it offers a quick and accurate testing
solution on both SM and MM fibers.

 Specifications

Model	JW3116
Operating wavelength(nm)	1310/1550;1310/1490/1550/1625(others specify on requests)
Applicable fiber	SM,MM
Laser type	FP-LD(others specify on requests)
Output Power(dBm)	-5~-12dBm (can be adjustable)
Adjustable step size(dBm)	<0.5
Stability(dB,30min,20°C)	0.15
Modulation(Hz)	CW, 270,330,1K,2K
Fiber Port	FC/PC
Alkaline Battery	3*AA,1.5V
Power Supply Adaptor(V)	8.4
Battery Operating time(h)	45
Operation Temperature(°C)	-10~+60
Storage Temperature(°C)	-25~+70
Outline size(mm)/weight	180*90*45(250g)

Standard Package

MODEL	INCLUDES
All JW3116 Models	JW3116 machine, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
