Knp/Rx21 1/2W 10 Ohm +/-5% Flame Retardant Wirewound Resistors

Name: Knp/Rx21 1/2W 10 Ohm +/-5% Flame Retardant Wirewound Resistors
Brand: china-manufacturer-directory.com
SKU: 767769135
Availability: InStock
Rating: 4.5 (132 reviews)

Price:	US $ 0.0025-0.003PCS
Trade Terms:	FOB,EXW
Min Order:	10000PCS
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

High quality Wire Wound Resistor
1.over 8 years experience, Professional resistor manufacturer.
2. Good overload resistor.
3. RoHS & ISO9001&ISO14000
4. OEM.

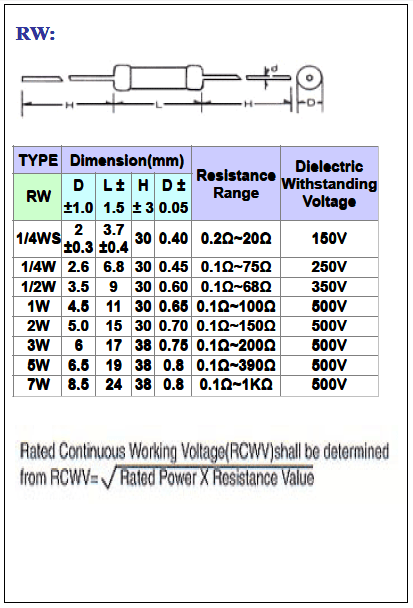

WireWound Resistors,RW
Wire wound resistors are made by winding the resistance wires on the alkaliless ceramic cores, then coated with silicon resin or flameproof paint, capable of making low tolerance resistors.

Features:

1. Super heat dissipation;small linear temperature coefficient.

2. Instant overload capability;low noise figure and low annual shift on resistance values.

3. Flameproof,light weight,price is lower than enamel TYPES.

4. Winding wires are much more durable than the enamel types which are produced in high temperature.

Note:

The resistance ranges listed above are the one wound by auto machines.Higher or lower values can be produced by hand-handling wirewound process.

CHARACTERISTICS

CHARACTERISTCS	SPECIFCATIONS	TEST METHODS JIS5202
(TCRαr) RESISTORS TEMPERATURECOEFFICIENT	R≥10Ω ±300PPM/ºC 10Ω>R>5Ω ±500PPM/ºC R<5Ω	5.2B
SHORT TIME OVERLOAD	ΔR≤±2%RO+0.05Ω	×10,5 POWER RATED×10TIMES,5S
RESISTANCETOSOLDERING HEAT	ΔR≤±1%RO+0.05Ω	6.4
LOAD LIFE IN HUMIDITY	ΔR≤±5%RO+0.1Ω	7.9
LOAD LIFE	ΔR≤±5%RO+0.1Ω	7.10
NONINFLAMMABILITY	NONINFLAMMAB	5,10,16 5 LOAD 5MIN ACCORDING TO 5 TIME 10 TIME 16 TIME POWER RATED ANDA.C

PACKING:

POWER TYPE Q'TY		KNP-1/2W	KNP-1W	KNP-2W	KNP-3W	KNP-5W
B(P) B(P) TYPE	() CELL PACKING QTY	5000 PCS	3000 PCS	2000 PCS	1000 PCS	500PCS
B(P) B(P) TYPE	FULL BOX QTY	50000PCS	30000 PCS	20000 PCS	1000 0PCS	5000PCS
T() T BYTE	() CELL PACKING QTY	2000 PCS	1000 PCS	1000 PCS	500 PCS	250PCS
T() T BYTE	FULL BOX QTY	20000 PCS	10000 PCS	10000 PCS	5000 PCS	2500PCS

:PERFORMANCE TEST METHODS

CHARACTERISTICS	SPECIFICATIONS	TESTMETHODS
DC RESISTANCE JIS-C-5202 5.1	±5% (J) ±2%( G),±10% (K)	25ºC TA 25ºC
TEMPEPATURE COEFFICIENT JIS-C-5202 5.2	R≥10Ω ±300PPM/ºC 10Ω>R>5Ω ±500PPM/ºC R<5Ω	R2-R1 1/ºC R1(T2-T1) R1:(T1) RESISTANCE VALUE AT ROOM TEMPERATURE(T1) R2:+100ºC(T2) RESISTANCE VALUE AT ROOM TEMPERATURE+100ºC(T2)
DIELECTRIC WITHSTANDING VOLTAGE JIS-C-5202 5.7	, NO EVIDENCE OF FLASHOVER MECHANICAL AMAGE,ARCING OF INSULATION BREAKDOWN	V,60 RESISTORS SHALL BE CLAMPED IN THE TROUGH OF A90°METALLIC V-BLOCK AND SHALL BE TESTED AT SPECIFIED IN THE ABOVE LIST FOR 60 SECONDS
INSULATION RESISTANCE JIS-C-5202 5.6	1000MΩ MIN	DC500VV60 WITHSTANDING TEST AND SHALL BE MEASURED AT DC 500V.RESISTOR SHALL BN PREPARED AC SAME METHOD OF DIELECTRIC
THERMAL SHOCK	ΔR≤±(2%RO+0.1Ω)	30,8-12-30±ºC30 AFTER APPLICATION OF RATED POWERR FOR 30MINUTES,30MINUTES EXPOSURE TO -30±5ºC AMBIENT TEMPERATURE
HUMIDITY JIS-C-5202 7.5	ΔR≤±(2%RO+0.1Ω)	40±2ºC,90-95%,1000 TEMPERATURE RESISTANCE CHANGE AFTER A 1000HOURS EXPOSURE IN AHUMIDITY TEST CHAMBER CON-TROLLED AT 40±2ºC AND 90-95%RELATIVE HUMIDITY

:PERFORMANCE TEST METHODS

CHARACTERISTICS	SPECIFICATIONS	TEST METHODS
SHORT IMET OVERLOAD	ΔR≤±(2%RO+0.05Ω)	×10,5 POWER RATED×10TIMES,5S
TEMPERATURE COEFFICIENT JIS-C-5202 5.2	ΔR≤±(5%RO+0.1Ω)	40±2ºC,90-95%,1.5,0.51000
LOAD LIFE JIS-C-5202 7.10	ΔR≤±(5%RO+0.1Ω)	PERMANENT RESISTANCE CHANGE AFTER 1000HOURS OPERATING AT RCWV,WITH DUTY CYCLE OF 1.5HOURS ON,0.5HOURS OFF AT 25ºC±2ºC.
RESISTANCE TO SOLDERING HEAT JIS-C-5202 6.4	ΔR≤±(1%RO+0.05Ω)	3.24.8MM DIP THE LEADS OF THE RESISTOR INTO SN STOVE THE DEPTH IS 3.2~4.8MM,THE TEMPERATURE AND THE TIME AS THE TABLE TEMPERATURE DIP TIME 350ºC±10ºC 3.0±0.5 SEC 260ºC±5ºC 10±1 SEC
SOLDERABILITY JIS-C-5202 6.5	95% 95%COVERAGE MIN.	:260±5ºC :10±0.5 SEC TEST TEMPERATURE OF SOLDER: 260±5ºC DWELL TIME IN SOLDER:10±0.5SEC
NONINFLAMMAB- ILITY	() NONINFLAMMAB	5.10.165 LOAD 5MIN ACCORDING TO 5 TIME 10 TIME 16 TIME POWER RATED AND A.C

Prod Model:	KNP 0.5W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire-Wound Resistor:	Fuse Resistor
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Resistance:	Wire-Wound Resistor
Type:	Wire-Wound Resistor
Quantity:	PCS
Brand:	Kaec
